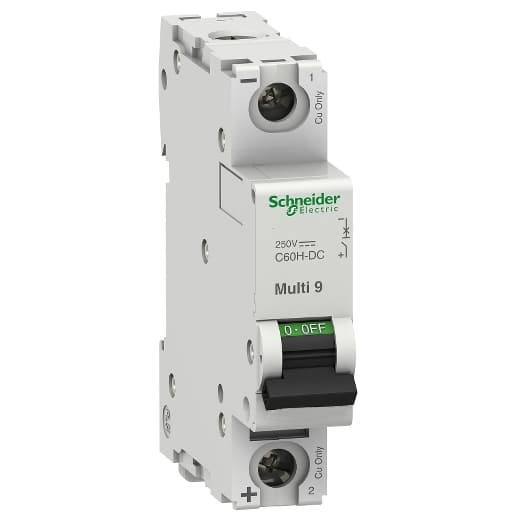

MGN61510 Schneider Electric Industrial Automation Components

Product Details

• Depth
  2.87 in (73 mm)
• Locking Options Description
  In position O
• Network Type
  DC
• Magnetic Tripping Limit
  8.5 x In +/- 20 % AC
• Product Name
  Multi 9 C60H-DC
• Suitability For Isolation
  Yes EN/IEC 60947-2
• Contact Position Indicator
  Yes
• Color
  Gray
• Limitation Class
  3 EN/IEC 60947-2
• Width
  0.71 in (18 mm)
• Line Rated Current
  15 A 77 °F (25 °C)
• Number Of Protected Poles
  1
• [Ui] Rated Insulation Voltage
  500 V DC EN/IEC 60947-2
• Local Signalling
  ON/OFF indication
• Provision For Padlocking
  Padlockable
• Net Weight
  0.28 lb(US) (0.128 kg)
• Product Or Component Type
  Miniature circuit-breaker
• Utilisation Category
  Category A EN/IEC 60947-2
• Mounting Support
  DIN rail
• Poles Description
  1P
9 Mm Pitches
2
Earth-Leakage Protection
Without
Device Short Name
C60H-DC
[Ue] Rated Operational Voltage
12...250 V DC
Mounting Mode
Clip-on
Mechanical Durability
20000 cycles
Device Application
Distribution
Curve Code
C
Control Type
Toggle
Height
3.19 in (81 mm)
Wire Stripping Length
0.55 in (14 mm) top or bottom
Range
Multi 9
Trip Unit Technology
Thermal-magnetic
[Uimp] Rated Impulse Withstand Voltage
6 kVEN/IEC 60947-2
Comb Busbar And Distribution Block Compatibility
Top or bottom: standard
Tightening Torque
22.13 lbf.in (2.5 N.m) top or bottom
Electrical Durability
3000 cycles L/R = 2 ms 6000 cycles
Connections - Terminals
Tunnel type terminal top or bottom) 0.00…0.04 in² (1…25 mm²) AWG 18...AWG 4) - rigid stranded Tunnel type terminal top or bottom) 0.00…0.02 in² (1…16 mm²) AWG 18...AWG 6) - flexible Tunnel type terminal top or bottom) 0.00…0.02 in² (1…16 mm²) AW
[Ics] Rated Service Breaking Capacity
15 kA 75 % GB 14048.2 - 110 V DC 15 kA 75 % EN/IEC 60947-2 - 110 V DC 7.5 kA 75 % EN/IEC 60947-2 - 250 V DC 4.5 kA 75 % EN/IEC 60947-2 - 220 V DC 7.5 kA 75 % GB 14048.2 - 250 V DC 4.5 kA 75 % GB 14048.2 - 220 V DC
Breaking Capacity
10 kA Icu 220 V DC GB 14048.2 6 kA Icu 250 V DC GB 14048.2 20 kA Icu 110 V DC GB 14048.2 20 kA Icu 110 V DC EN/IEC 60947-2 10 kA Icu 220 V DC EN/IEC 60947-2 6 kA Icu 250 V DC EN/IEC 60947-2 5 kA AIR 12...250 V DC UL 1077
