PGL36080 Schneider Electric Industrial Automation Components

PGL36080 on Powermatic Associates
Schneider Electric

Part#:PGL36080

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

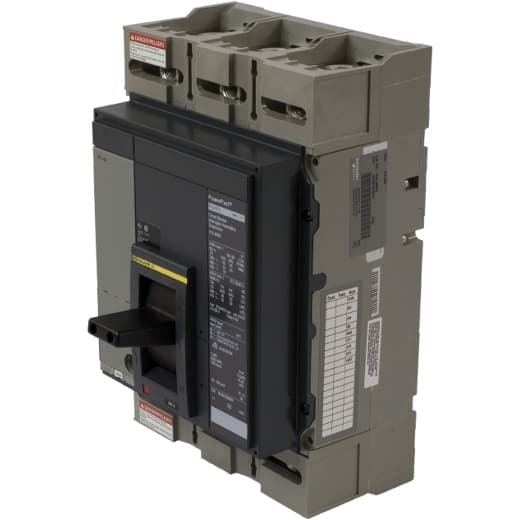

Square D by Schneider Electric PGL36080 is a Molded Case Circuit Breaker (MCCB) designed for mounting on a plate. This 100% rated device features a rated current of 800A and utilizes lugs for both load and line side connections. It falls under the PowerPact PGL sub-range and is designed to operate at a rated voltage of 600V AC. The PGL36080 is a 3-pole circuit breaker offering protection functions including Long-time (L) and Instantaneous (I) protection. It has a trip current rating of 800 AT and a frame current rating of 1200 AF. The short circuit breaking ratings are specified as 65kA at 240Vac, 35kA at 480Y/277Vac and 480Vac, and 18kA at 600Y/347Vac and 600Vac. All three poles are protected, and the device is equipped with an ET3.0 (LI) Electronic trip unit.

Product Details

  • Number Of Poles
    3P
  • Width
    8.27 in (210.06 mm)
  • Line Rated Current
    800 A
  • Breaking Capacity Code
    G
  • Depth
    8.05 in (204.47 mm)
  • Height
    12.86 in (326.64 mm)
  • Continuous Current Rating
    80 %
  • Product Or Component Type
    Circuit breaker
  • Electrical Connection
    Lugs load Lugs line
  • Tightening Torque
    442.54 lbf.in (50 N.m) 0.15…0.37 in² (95…240 mm²) (AWG 3/0...500 kcmil) 8.85…11.51 lbf.in (1.0…1.3 N.m)

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PGL36080 on Powermatic Associates is $13,905.00. Order now.
