Part#:PJL36060CU33A

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

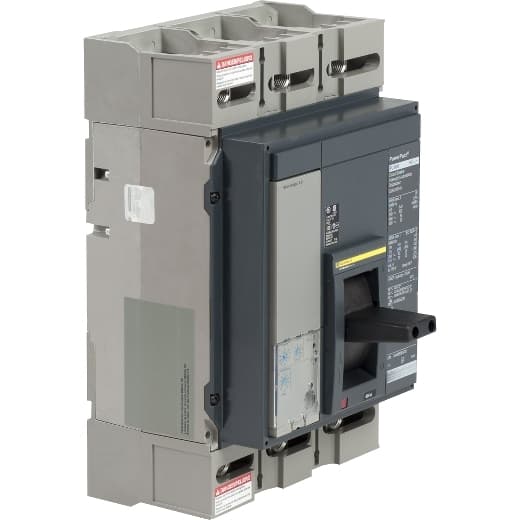

Product description

Square D by Schneider Electric PJL36060CU33A is a Magnetic-only Motor Protector Circuit Breaker (MPCB) that also functions as a Manual Motor Starter and Motor Circuit Protector (MCP). It is designed for mounting plate installation and features a rated current of 600A with lugs for both load and line side connections. This part belongs to the PowerPact PJL sub-range and is designed for use with a rated voltage (AC) of 600V. It is a 3 Pole device offering protection functions including Long-time (L) and Instantaneous (I) protection. The frame current rating is 1200 AF, and it has a short circuit breaking rating of 100kA at 240Vac, 65kA at 480Y/277Vac and 480Vac, and 25kA at 600Y/347Vac and 600Vac. All three poles are protected, and it utilizes an MCP (I) Electronic trip unit type.

Product Details

  • Electrical Connection
    Lugs load Lugs line
  • Tightening Torque
    442.54 lbf.in (50 N.m) 0.15…0.37 in² (95…240 mm²) (AWG 3/0...500 kcmil) 8.85…11.51 lbf.in (1.0…1.3 N.m)
  • Continuous Current Rating
    100 %
  • Breaking Capacity Code
    J
  • Depth
    8.05 in (204.47 mm)
  • Height
    12.86 in (326.64 mm)
  • Width
    8.27 in (210.06 mm)
  • Device Short Name
    A
  • Number Of Poles
    3P
  • Line Rated Current
    600 A
  • Product Or Component Type
    Circuit breaker

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PJL36060CU33A on Powermatic Associates is $23,187.00. Order now.
