Part#:PJL36080CU44A

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

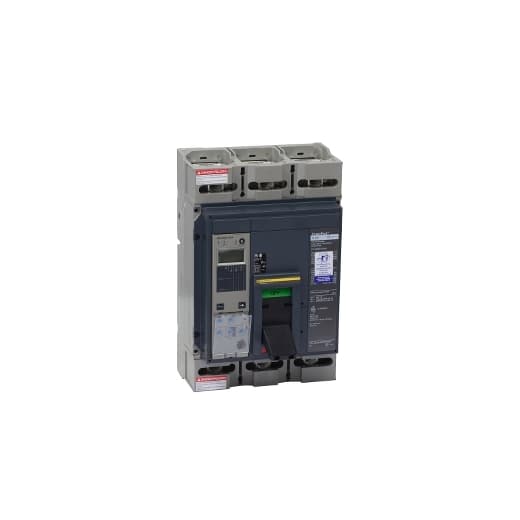

Square D by Schneider Electric PJL36080CU44A is a Magnetic-only Motor Protector Circuit Breaker (MPCB) that also functions as a Manual Motor Starter and Motor Circuit Protector (MCP). It is designed for mounting plate installation and features a rated current of 800A with a connection type of lugs on both load and line sides. This part belongs to the PowerPact PJL sub-range and is specified for a rated voltage (AC) of 600 V across 3 poles. It offers protection functions including L (Long-time protection) and I (Instantaneous protection), with a frame current rating of 1200 AF. The short circuit breaking rating is detailed as 100kA at 240Vac, 65kA at both 480Y/277Vac and 480Vac, and 25kA at both 600Y/347Vac and 600Vac, covering all 3 protected poles. The trip unit type is an MCP (I) Electronic, ensuring precise operation for motor protection applications.

Product Details

  • Tightening Torque
    442.54 lbf.in (50 N.m) 0.15…0.37 in² (95…240 mm²) (AWG 3/0...500 kcmil) 8.85…11.51 lbf.in (1.0…1.3 N.m)
  • Electrical Connection
    Lugs load Lugs line
  • Continuous Current Rating
    100 %
  • Depth
    8.05 in (204.47 mm)
  • Product Or Component Type
    Circuit breaker
  • Width
    8.27 in (210.06 mm)
  • Height
    12.86 in (326.64 mm)
  • Number Of Poles
    3P
  • Breaking Capacity Code
    J
  • Line Rated Current
    800 A
  • Device Short Name
    A

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PJL36080CU44A on Powermatic Associates is $26,849.00. Order now.
