Part#:PJL36080U41A

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

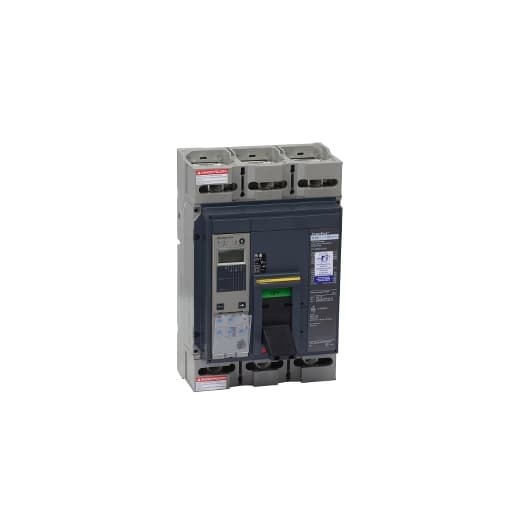

Square D by Schneider Electric PJL36080U41A is a molded case circuit breaker (MCCB) designed for mounting on a plate. This standard model, part of the PowerPact PJL sub-range, features a rated current of 800A and operates with a connection type of lugs on both the load and line sides. It is designed for use in systems with a rated voltage of up to 600V AC and includes three poles. The breaker offers protection functions including long-time protection (L), short-time protection with fixed time delay (S), and instantaneous protection (I), supported by an ET5.0A (LSI) electronic trip unit. It has a trip current rating of 800 AT and a frame current rating of 1200 AF. The short circuit breaking ratings are 100kA at 240Vac, 65kA at 480Y/277Vac and 480Vac, and 25kA at 600Y/347Vac and 600Vac, covering all three protected poles.

Product Details

  • Tightening Torque
    442.54 lbf.in (50 N.m) 0.15…0.37 in² (95…240 mm²) (AWG 3/0...500 kcmil) 8.85…11.51 lbf.in (1.0…1.3 N.m)
  • Electrical Connection
    Lugs load Lugs line
  • Depth
    8.05 in (204.47 mm)
  • Continuous Current Rating
    80 %
  • Number Of Poles
    3P
  • Line Rated Current
    800 A
  • Height
    12.86 in (326.64 mm)
  • Width
    8.27 in (210.06 mm)
  • Product Or Component Type
    Circuit breaker
  • Breaking Capacity Code
    J
  • Device Short Name
    A

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PJL36080U41A on Powermatic Associates is $24,631.50. Order now.
