PJL36100CU33A Schneider Electric Industrial Automation Components

PJL36100CU33A on Powermatic Associates
Schneider Electric

Part#:PJL36100CU33A

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

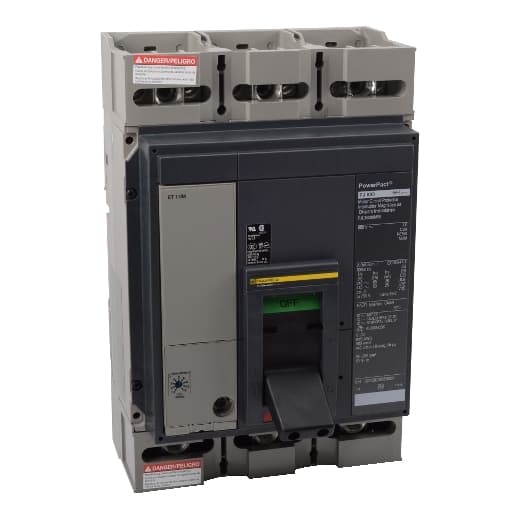

Square D by Schneider Electric PJL36100CU33A is a molded case circuit breaker (MCCB) designed for mounting on a plate. This 100% rated device features a rated current of 1000A and operates with a connection type of lugs on both the load and line sides. It falls under the PowerPact PJL sub-range and is designed to work with a rated voltage (AC) of 600V. The breaker is a 3-pole device, offering protection functions including long-time protection (L), short-time protection with fixed time delay (S), instantaneous protection (I), and ground fault protection (G). It has a trip current rating and frame current rating of 1000 AT and 1200 AF, respectively. The short circuit breaking rating varies with voltage: 100kA at 240Vac, 65kA at 480Y/277Vac and 480Vac, and 25kA at 600Y/347Vac and 600Vac. All three poles are protected, and it utilizes an ET6.0A (LSIG) electronic trip unit type.

Product Details

  • Electrical Connection
    Lugs load Lugs line
  • Tightening Torque
    442.54 lbf.in (50 N.m) 0.15…0.37 in² (95…240 mm²) (AWG 3/0...500 kcmil) 8.85…11.51 lbf.in (1.0…1.3 N.m)
  • Depth
    8.05 in (204.47 mm)
  • Continuous Current Rating
    100 %
  • Width
    8.27 in (210.06 mm)
  • Height
    16.16 in (410.46 mm)
  • Breaking Capacity Code
    J
  • Number Of Poles
    3P
  • Product Or Component Type
    Circuit breaker
  • Line Rated Current
    1000 A
  • Device Short Name
    A

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PJL36100CU33A on Powermatic Associates is $32,466.00. Order now.
