Part#:QBL22100YP

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

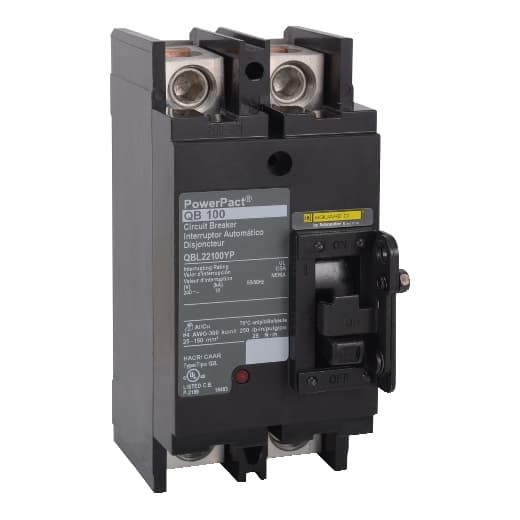

Schneider Electric - QBL22100YP

Product Details

  • Continuous Current Rating
    80 %
  • Depth
    3.93 in (99.82 mm)
  • Magnetic Hold Current
    1200 A
  • Line Rated Current
    100 A
  • Trip Unit Technology
    Thermal-magnetic
  • Width
    4.5 in (114.30 mm)
  • Height
    6.47 in (164.34 mm)
  • Magnetic Tripping Current
    2400 A
  • Product Or Component Type
    Circuit breaker
  • Tightening Torque
    247.82 lbf.in (28 N.m) 0.04…0.23 in² (25…150 mm²) (AWG 4...300 kcmil)
  • Breaking Capacity Code
    B

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QBL22100YP on Powermatic Associates is $826.50. Order now.
