QO215 Schneider Electric Industrial Automation Components

QO215 on Powermatic Associates
Schneider Electric

Part#:QO215

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

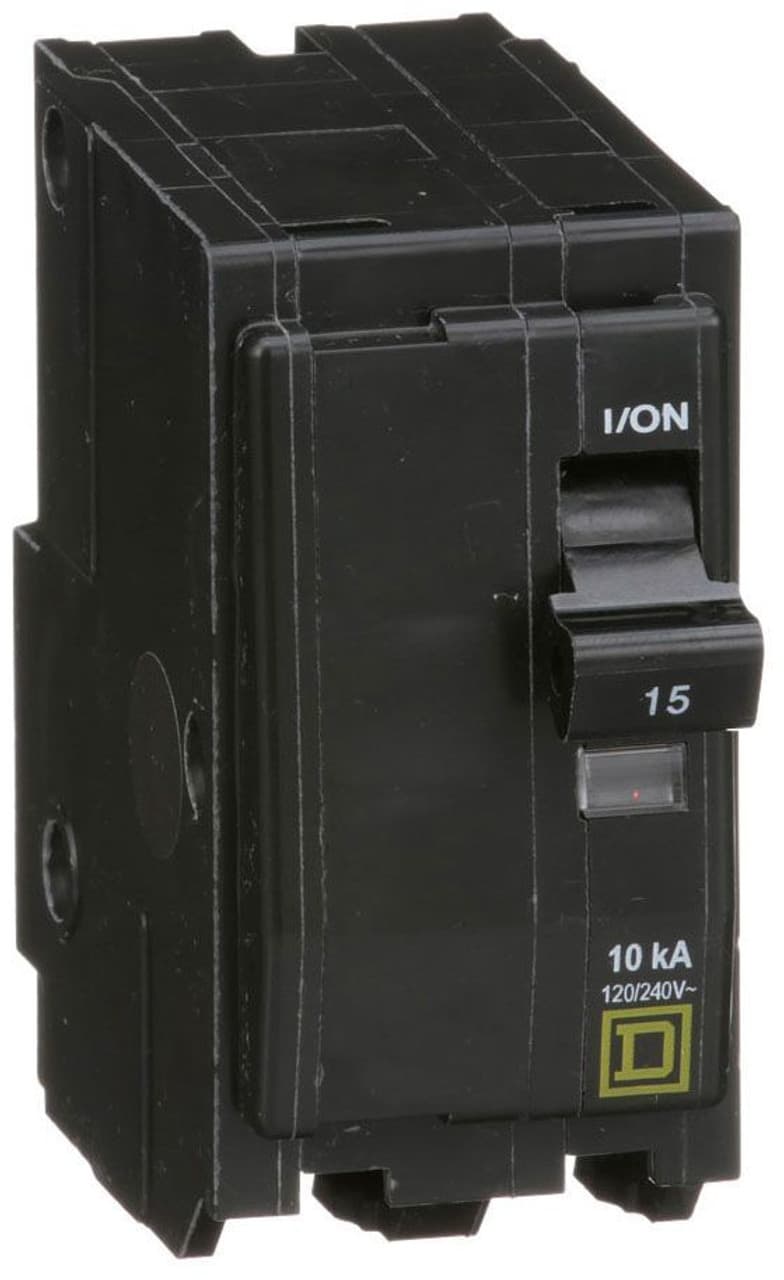

Square D by Schneider Electric QO215 is a Miniature Circuit Breaker (MCB) designed for plug-in mounting. It features a plug-in connection type and is compatible with a cross-section of 14-8AWG for 1 cable Al/Cu. This 2 Pole MCB is rated for a current of 15A and supports rated voltages of 48Vdc and 120/240Vac. It has a short circuit breaking rating of 10kA at 240Vac and 5kA at 48Vdc. The terminals are of the press plate type.

Product Details

  • Circuit Breaker Type
    Standard
  • Width
    1.5 in (38.10 mm)
  • Electrical Connection
    Pressure plate
  • Depth
    2.91 in (73.91 mm)
  • Range
    QO
  • Ratings
    HACR rated
  • Mounting Type
    Plug-in
  • Number Of Panel Spaces
    2
  • Number Of Poles
    2P
  • Height
    3.12 in (79.25 mm)
  • Current Rating
    15 A
  • Wire Size
    AWG 14...AWG 8 copper or aluminium
  • Product
    Miniature circuit-breaker
  • Tightening Torque
    44.25 lbf.in (5 N.m) 0.02…0.04 in² (10…25 mm²) (AWG 8...AWG 2)
  • Shipping Width:
    2.00 In.
  • Shipping Weight:
    0.55 lbs.
  • UPC:
    78590140030
  • TS PIK:
    21032732
  • Shipping Length:
    3.00 In.
  • Shipping Height:
    3.00 In.
  • Voltage Rating
    120/240 V AC 120 V AC 48 V DC
  • Interrupt Rating
    10 kA 120/240 V AC 50/60 Hz 10 kA 120 V AC 50/60 Hz 5 kA 48 V DC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QO215 on Powermatic Associates is $67.00. Order now.
