QOB240GFI Schneider Electric Industrial Automation Components

QOB240GFI on Powermatic Associates
Schneider Electric

Part#:QOB240GFI

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

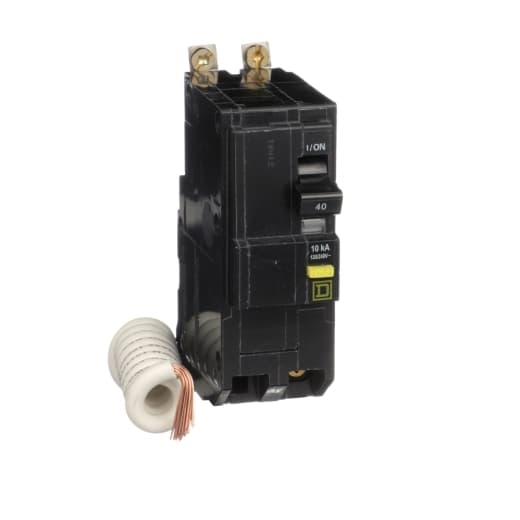

Square D by Schneider Electric QOB240GFI is a Ground Fault Interrupter (GFI) Miniature Circuit Breaker (MCB) designed for bolt-on mounting. It features a rated current of 40A and a bolt-on connection type. This MCB operates at a rated voltage of 120V to 240V and accommodates a cross-section of 12-4AWG (1 cable Al) with 2 poles. It has a residual current sensitivity of 6mA / 0.006 and offers ground fault protection. The short circuit breaking rating is 10kA at 240Vac, and it is equipped with box lugs type of terminals.

Product Details

  • Circuit Breaker Type
    Ground fault protecting class A 6 mA
  • Depth
    2.91 in (73.91 mm)
  • Electrical Connection
    Box lugs
  • Number Of Poles
    2P
  • Number Of Panel Spaces
    2
  • Range
    QO
  • Height
    4.12 in (104.65 mm)
  • Current Rating
    40 A
  • Mounting Type
    Bolt-on
  • Width
    1.5 in (38.10 mm)
  • Product
    Miniature circuit-breaker
  • Ratings
    Not rated
  • Voltage Rating
    120/240 V AC 120 V AC
  • Wire Size
    AWG 12...AWG 4 aluminium AWG 14...AWG 6 copper
  • Tightening Torque
    40.71 lbf.in (4.6 N.m) 0.00…0.02 in² (2.5…10 mm²) (AWG 16...AWG 14) 40.71 lbf.in (4.6 N.m) 0.01…0.03 in² (4…20 mm²) (AWG 12...AWG 4)
  • Interrupt Rating
    10 kA 120/240 V AC 50/60 Hz 10 kA 120 V AC 50/60 Hz

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QOB240GFI on Powermatic Associates is $444.00. Order now.
