QOB280VH1021 Schneider Electric Industrial Automation Components

QOB280VH1021 on Powermatic Associates
Schneider Electric

Part#:QOB280VH1021

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

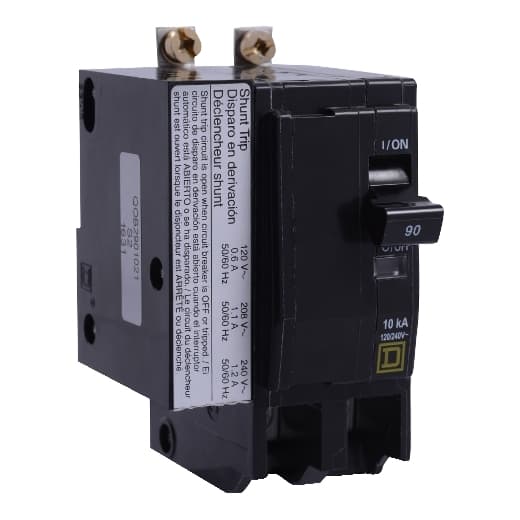

Schneider Electric - QOB280VH1021

Product Details

  • Electrical Connection
    Box lugs
  • Product
    Miniature circuit-breaker
  • Ratings
    HACR rated
  • Depth
    2.91 in (73.91 mm)
  • Circuit Breaker Type
    Standard
  • Tightening Torque
    40.71 lbf.in (4.6 N.m)
  • Mounting Type
    Bolt-on
  • Height
    3.5 in (88.90 mm)
  • Wire Size
    AWG 4...AWG 2/0 copper or aluminium
  • Number Of Poles
    2P
  • Width
    2.25 in (57.15 mm)
  • Range
    QO
  • Current Rating
    80 A
  • Number Of Panel Spaces
    3
  • Options
    Shunt trip 120/208/240 V AC
  • Interrupt Rating
    22 kA 120/240 V AC 50/60 Hz 22 kA 240 V AC 50/60 Hz 22 kA 120 V AC 50/60 Hz
  • Voltage Rating
    120/240 V AC 240 V AC 120 V AC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QOB280VH1021 on Powermatic Associates is $573.00. Order now.
