QOM110VH Schneider Electric Industrial Automation Components

QOM110VH on Powermatic Associates
Schneider Electric

Part#:QOM110VH

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

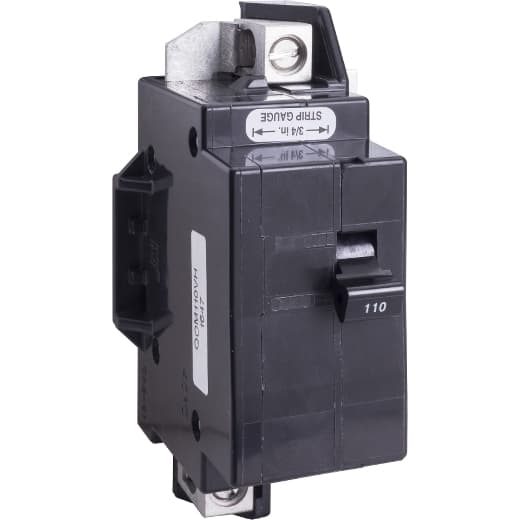

Square D by Schneider Electric QOM110VH is a Miniature Circuit Breaker (MCB) designed for primary or main circuit protection. It features a bolt-on mounting mode and a bolt-on connection type, ensuring secure installation. This MCB is rated for a current of 110A and can accommodate a wire cross-section of 4-2/0AWG for one aluminum or copper cable. It operates on a rated voltage of 120V to 240V AC and is equipped with two poles. The QOM110VH has a short circuit breaking rating of 22kA at 240Vac and utilizes lug terminals for its connections.

Product Details

  • Frame Size
    QOM1
  • Number Of Phases
    1 phase
  • Circuit Breaker Type
    Standard
  • Number Of Poles
    2P
  • Depth
    5 in (127.00 mm)
  • Mounting Type
    Bolt-on
  • Wire Size
    AWG 4...AWG 2/0 aluminium/copper
  • Electrical Connection
    Lugs
  • Tightening Torque
    53.10 lbf.in (6 N.m) 0.01…0.10 in² (4…65 mm²) (AWG 12...AWG 2/0)
  • Height
    5.09 in (129.29 mm)
  • Current Rating
    110 A
  • Product
    Circuit breaker
  • Range
    QO
  • Width
    3.47 in (88.14 mm)
  • Load Center Type
    Main breaker
  • For Use With
    QO load center Homeline load center
  • Voltage Rating
    120/240 V AC 120 V AC
  • Interrupt Rating
    22 kA 120/240 V AC 50/60 Hz 22 kA 120 V AC 50/60 Hz

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QOM110VH on Powermatic Associates is $702.00. Order now.
