QOM60L Schneider Electric Electronic Components

Name: QOM60L
Brand: Schneider Electric

Part#:QOM60L

Manufacturer:Schneider Electric

Category:Electronic Components

Product Lifecycle:Active

Product description

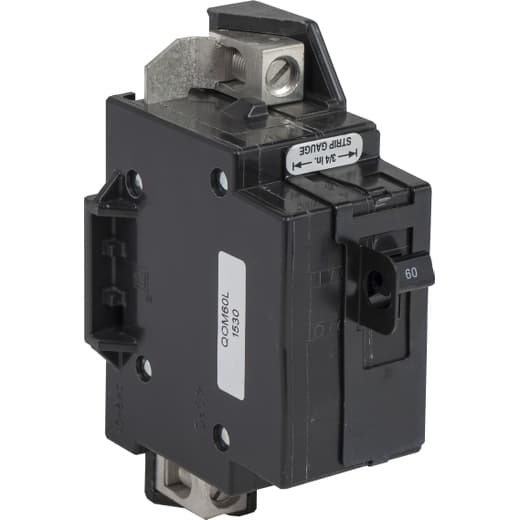

Square D by Schneider Electric QOM60L is a Miniature Circuit Breaker (MCB) designed for primary or main circuit protection. It features a bolt-on mounting mode and a bolt-on connection type, ensuring secure installation. This MCB is rated for a current of 60A and can accommodate a wire cross-section of 12-2/0AWG for one aluminum or copper cable. It operates on a rated voltage of 120V to 240V AC and is equipped with two poles. The QOM60L has a short circuit breaking rating of 10kA at 240Vac and utilizes lug terminals for its connections.

Product Details

Voltage Rating
120/240 V AC
Electrical Connection
Lugs
For Use With
QO load center
Range
QO
Circuit Breaker Type
Standard
Load Center Type
Main breaker
Frame Size
QOM1
Product
Circuit breaker
Mounting Type
Bolt-on
Interrupt Rating
10 kA 120/240 V AC 50/60 Hz
Ratings
Primary main breaker
Tightening Torque
53.10 lbf.in (6 N.m) 0.01…0.10 in² (4…65 mm²) (AWG 12...AWG 2/0)
Number Of Phases
1 phase
Number Of Poles
2P
Current Rating
60 A
Wire Size
AWG 12...AWG 2/0 copper or aluminium

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
