QOM125VH Schneider Electric Industrial Automation Components

QOM125VH on Powermatic Associates
Schneider Electric

Part#:QOM125VH

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

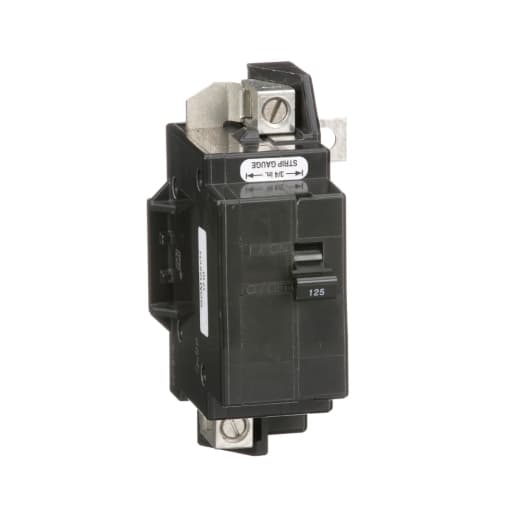

Square D by Schneider Electric QOM125VH is a Miniature Circuit Breaker (MCB) designed for primary or main circuit protection. It features a bolt-on mounting mode and a bolt-on connection type, ensuring secure installation. This MCB is rated for a current of 125A and can accommodate a voltage range of 120V to 240V AC. It is compatible with wire sizes from 4AWG to 300kcmil for one aluminum or copper cable, facilitated by lug-type terminals. The QOM125VH is a 2-pole circuit breaker with a short circuit breaking rating of 22kA at 240Vac, making it suitable for a variety of electrical protection applications.

Product Details

  • Number Of Phases
    1 phase
  • Current Rating
    125 A
  • Electrical Connection
    Lugs
  • Height
    5.09 in (129.29 mm)
  • Mounting Type
    Bolt-on
  • Wire Size
    AWG 4...300 kcmil aluminium/copper
  • Range
    QO
  • Tightening Torque
    53.10 lbf.in (6 N.m) 0.01…0.10 in² (4…65 mm²) (AWG 12...AWG 2/0)
  • Load Center Type
    Main breaker
  • Number Of Poles
    2P
  • Product
    Circuit breaker
  • Frame Size
    QOM1
  • Depth
    5 in (127.00 mm)
  • Circuit Breaker Type
    Standard
  • Width
    3.47 in (88.14 mm)
  • For Use With
    QO load center Homeline load center
  • Interrupt Rating
    22 kA 120/240 V AC 50/60 Hz 22 kA 120 V AC 50/60 Hz
  • Voltage Rating
    120/240 V AC 120 V AC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QOM125VH on Powermatic Associates is $468.00. Order now.
