QOM125VHCP Schneider Electric Industrial Automation Components

QOM125VHCP on Powermatic Associates
Schneider Electric

Part#:QOM125VHCP

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

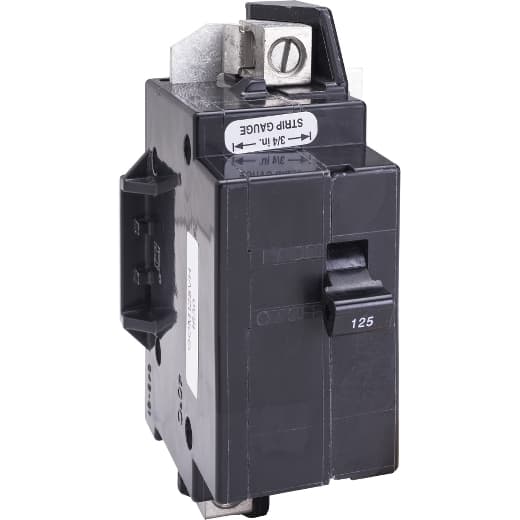

Schneider Electric - QOM125VHCP

Product Details

  • Type Of Packing
    Consumer packaging
  • Mounting Type
    Bolt-on
  • Depth
    3.47 in (88.14 mm)
  • Current Rating
    125 A
  • Electrical Connection
    Lugs
  • Height
    5.09 in (129.29 mm)
  • Tightening Torque
    53.10 lbf.in (6 N.m) 0.01…0.10 in² (4…65 mm²) (AWG 12...AWG 2/0)
  • Ratings
    Primary main breaker
  • Load Center Type
    Main breaker
  • Wire Size
    AWG 4...AWG 2/0 copper or aluminium
  • Product
    Circuit breaker
  • For Use With
    QO load center
  • Number Of Poles
    2P
  • Width
    5 in (127.00 mm)
  • Range
    QO
  • Frame Size
    QOM1
  • Number Of Phases
    1 phase
  • Interrupt Rating
    22 kA 120/240 V AC 50/60 Hz 22 kA 120 V AC 50/60 Hz
  • Voltage Rating
    120/240 V AC 120 V AC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
