Powermatic Associates Logo

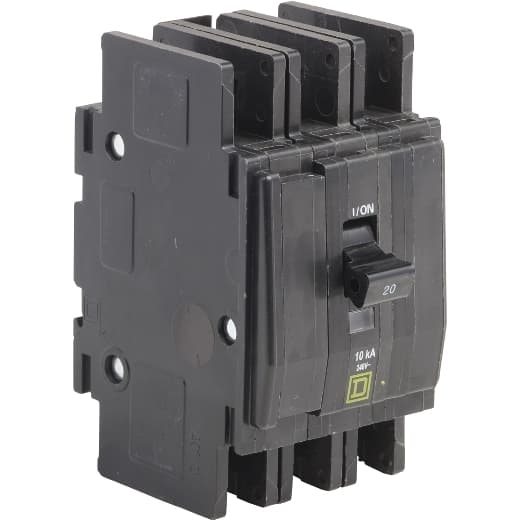

QOU3605250 Schneider Electric Industrial Automation Components

QOU3605250 on Powermatic Associates
Schneider Electric

Part#:QOU3605250

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

Schneider Electric - QOU3605250

Product Details

  • [Ue] Rated Operational Voltage
    120/240 V AC 240 V AC 120 V AC 48 V DC
  • Electrical Connection
    box lugs, load side quick connect terminals, line side
  • Protection Type
    Fingersafe
  • Tightening Torque
    45 lbf.in (5.08 N.m) (AWG 14...AWG 2)
  • Depth
    2.95 in (74.93 mm)
  • AWG Gauge
    AWG 14...AWG 2 aluminium/copper
  • Width
    2.25 in (57.15 mm)
  • Height
    4.05 in (102.87 mm)
  • Mounting Mode
    Unit mount
  • Range Of Product
    QOU
  • Circuit Breaker Application
    HACR and Switching Duty rated
  • Line Rated Current
    60 A
  • Circuit Breaker Type
    Standard
  • Product Or Component Type
    Miniature circuit-breaker

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QOU3605250 on Powermatic Associates is $342.00. Order now.
