QOUR1153100 Schneider Electric Industrial Automation Components

QOUR1153100 on Powermatic Associates
Schneider Electric

Part#:QOUR1153100

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

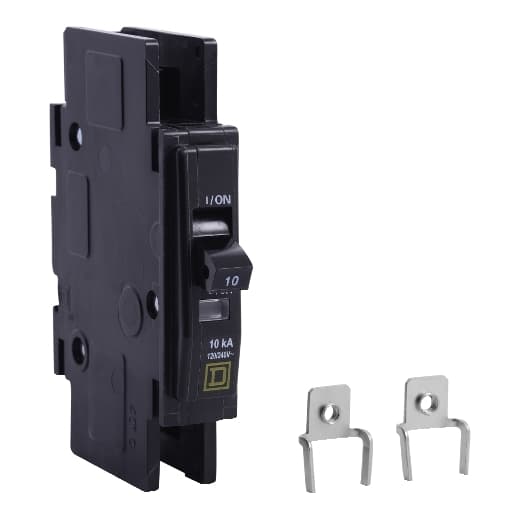

Schneider Electric - QOUR1153100

Product Details

  • Mounting Mode
    Unit mount
  • AWG Gauge
    AWG 14...AWG 2 aluminium/copper
  • Depth
    2.95 in (74.93 mm)
  • Line Rated Current
    15 A
  • Width
    0.75 in (19.05 mm)
  • Circuit Breaker Type
    Standard
  • Circuit Breaker Application
    HACR and Switching Duty rated
  • Height
    4.05 in (102.87 mm)
  • Tightening Torque
    45 lbf.in (5.08 N.m) (AWG 14...AWG 2)
  • Range Of Product
    QOU
  • Product Or Component Type
    Miniature circuit-breaker
  • Electrical Connection
    Slotted box lugs, line side Slotted box lugs, load side
  • [Ue] Rated Operational Voltage
    120/240 V AC 120 V AC 48 V DC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QOUR1153100 on Powermatic Associates is $48.30. Order now.

QOUR1153100 Related Documents

Product Datasheet-1631030981703.pdfCatalog-1631030981705.pdfInstruction Sheet-1631030981699.pdf
