Part#:RGF36250CU33A

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

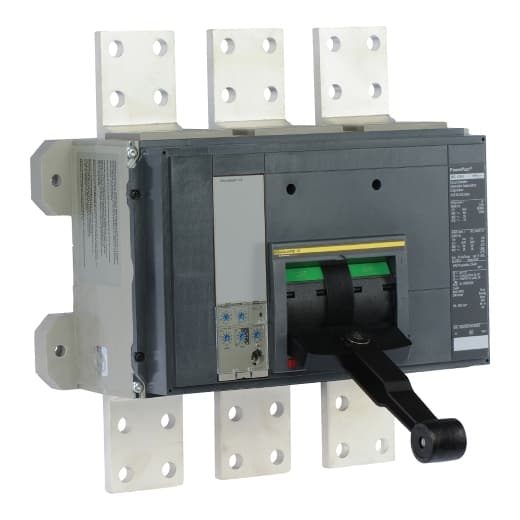

Square D by Schneider Electric RGF36250CU33A is a Molded Case Circuit Breaker (MCCB) designed for mounting on a mounting plate. It features a rated current of 2500A and connects via a busbar. This MCCB is part of the PowerPact RGF sub-range and operates at a rated voltage of 600 V AC. It is a 3 Pole device offering protection functions including Long-time (L), Short-time with fixed time delay (S), and Instantaneous (I) protection. The trip current rating is set at 2500 AT with a frame current rating of 3000 AF. It has a short circuit breaking rating of 65kA at 240Vac, 35kA at 480Y/277Vac and 480Vac, and 18kA at 600Y/347Vac and 600Vac. All three poles are protected, and it utilizes a Micrologic 5.0 (LSI) Electronic trip unit type.

Product Details

  • Width
    16.53 in (419.86 mm)
  • Product Or Component Type
    Circuit breaker
  • Range Of Product
    PowerPact R
  • Current Sensor Rating Range
    2500 A
  • [Ue] Rated Operational Voltage
    600 V AC
  • Continuous Current Rating
    100 %
  • [Ie] Rated Operational Current
    2500 A
  • Poles Description
    3P
  • Height
    16.24 in (412.50 mm)
  • Trip Unit Technology
    Electronic, standard, Micrologic 5.0, LSI
  • Depth
    14.49 in (368.05 mm)
  • Mounting Mode
    Unit mount
  • Breaking Capacity Code
    G
  • Electrical Connection
    Busbar connection line Busbar connection load
  • Tightening Torque
    601.85 lbf.in (68 N.m) 0.08…0.62 in² (50…400 mm²) (AWG 1/0...750 kcmil) 601.85 lbf.in (68 N.m) 0.08…0.23 in² (50…150 mm²) (AWG 1/0...300 kcmil)
  • Breaking Capacity
    65 kA 240 V AC 35 kA 480 V AC 18 kA 600 V AC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of RGF36250CU33A on Powermatic Associates is $57,383.00. Order now.
