RLF36300CU44A Schneider Electric Electronic Components

RLF36300CU44A on Powermatic Associates
Schneider Electric

Part#:RLF36300CU44A

Manufacturer:Schneider Electric

Category:Electronic Components

Product Lifecycle:Active

Product description

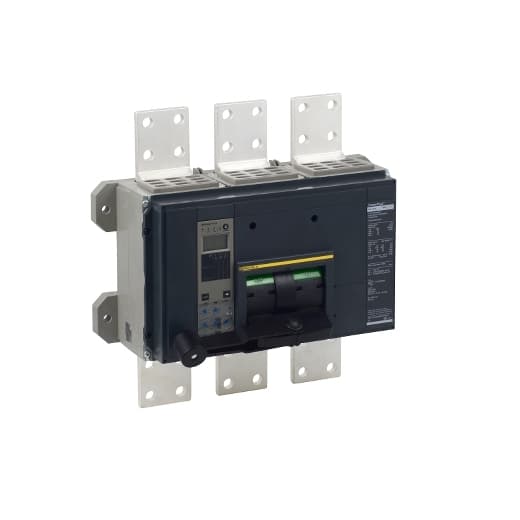

Square D by Schneider Electric RLF36300CU44A is a Molded Case Circuit Breaker (MCCB) within the PowerPact RLF sub-range. This MCCB features a 3-pole configuration and is designed for busbar connection. It supports a rated current of 3000A and is suitable for mounting on a mounting plate. The RLF36300CU44A operates at a rated voltage of 250Vac and is compatible with the DeviceNet communication protocol.

Product Details

  • Width
    16.53 in (419.86 mm)
  • Product Or Component Type
    Circuit breaker
  • Continuous Current Rating
    100 %
  • Breaking Capacity Code
    L
  • Number Of Poles
    3P
  • Depth
    14.49 in (368.05 mm)
  • Height
    16.24 in (412.50 mm)
  • Electrical Connection
    Busbar connection line Busbar connection load
  • Tightening Torque
    601.85 lbf.in (68 N.m) 0.08…0.62 in² (50…400 mm²) (AWG 1/0...750 kcmil) 601.85 lbf.in (68 N.m) 0.08…0.23 in² (50…150 mm²) (AWG 1/0...300 kcmil)

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of RLF36300CU44A on Powermatic Associates is $73,230.00. Order now.

RLF36300CU44A Related Documents

Product Datasheet-1631030958955.pdfInstruction Sheet-1631030958962.pdfCatalog-1631030958951.pdf
