RXM3AB1JD Schneider Electric Industrial Automation Components

RXM3AB1JD on Powermatic Associates
Schneider Electric

Part#:RXM3AB1JD

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

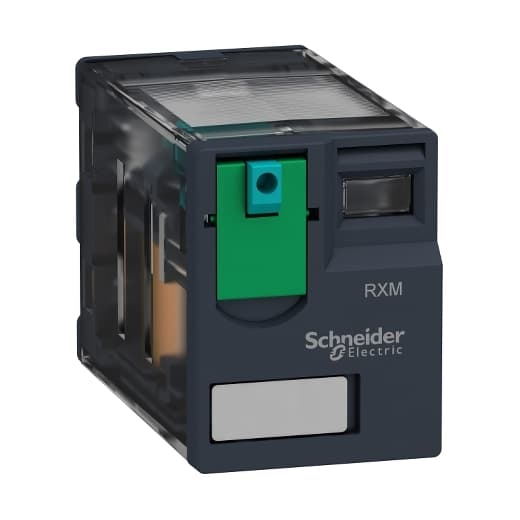

Schneider Electric RXM3AB1JD is a miniature plug-in relay from the RXM range, designed with Ag/Ni - Silver - Nickel alloy contacts. This relay features a 3C/O - 3PDT (3 Pole Double Throw) contact type, operating at a control voltage of 12 Vdc. It is rated for a current of 10 A at both 250Vac (AC-1) and 28Vdc (DC-1). The RXM3AB1JD offers a plug-in mounting mode and operates within an ambient air temperature range of -40 to +55 °C. It has an IP40 degree of protection, consumes 0.075 A of current, and has a power consumption of 0.9 W. The electrical durability of this relay, under a resistive load, is rated at 100,000 operations, while its mechanical durability, at no load, reaches up to 10,000,000 operations. Additionally, it features a Lockable Test Button (LTB) for latching.

Product Details

  • Contacts Type And Composition
    3 C/O
  • Operate Time
    20 ms
  • Operating Position
    Any position
  • [Uc] Control Circuit Voltage
    12 V DC
  • Contacts Material
    AgNi
  • Average Coil Consumption In W
    0.9 W
  • Range Of Product
    Harmony Electromechanical Relays
  • Shape Of Pin
    Flat
  • [Ithe] Conventional Enclosed Thermal Current
    10 A -40…131 °F (-40…55 °C)
  • [Uimp] Rated Impulse Withstand Voltage
    4 kV 1.2/50 µs
  • CAD Overall Height
    3.11 in (79 mm)
  • Control Type
    Lockable test button
  • Mechanical Durability
    10000000 cycles
  • Product Or Component Type
    Plug-in relay
  • Maximum Switching Capacity
    2500 VA/280 W
  • Rated Operational Voltage Limits
    9.6...13.2 V DC
  • CAD Overall Depth
    3.09 in (78.45 mm)
  • Status LED
    Without
  • Maximum Switching Voltage
    250 V IEC
  • Average Coil Resistance
    160 Ohm 20 °C +/- 10 %
  • Device Presentation
    Complete product
  • Release Time
    20 ms
  • Device Short Name
    RXM
  • Series Name
    Miniature
  • Utilisation Coefficient
    20 %
  • Electrical Durability
    100000 cycles resistive
  • Safety Reliability Data
    B10d = 100000
  • Minimum Switching Capacity
    170 mW 10 mA, 17 V
  • Drop-Out Voltage Threshold
    >= 0.1 Uc
  • Protection Category
    RT I
  • Test Levels
    Level A
  • Net Weight
    0.08 lb(US) (0.037 kg)
  • Resistive Rated Load
    10 A 250 V AC 10 A 28 V DC
  • Operating Rate
    <= 1200 cycles/hour under load <= 18000 cycles/hour no-load
  • [Ui] Rated Insulation Voltage
    250 V IEC 300 V CSA 300 V UL
  • [Ie] Rated Operational Current
    10 A 28 V DC) NO IEC 10 A 250 V AC) NO IEC 5 A 28 V DC) NC IEC 5 A 250 V AC) NC IEC 10 A 30 V DC) UL 10 A 277 V AC) UL

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of RXM3AB1JD on Powermatic Associates is $6.95. Order now.

RXM3AB1JD Related Documents

Catalog-1631030105901.pdfProduct Datasheet-1631030105896.pdf
