RXM3AB1F7 Schneider Electric Industrial Automation Components

RXM3AB1F7 on Powermatic Associates
Schneider Electric

Part#:RXM3AB1F7

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

Schneider Electric RXM3AB1F7 is a miniature plug-in relay within the RXM sub-range, featuring contacts made from an Ag/Ni - Silver - Nickel alloy. This relay is designed with 3C/O - 3PDT (3 Pole Double Throw) contact type, and operates with a control voltage of 120 Vac. It is rated for currents up to 10 A at both 250 Vac (AC-1) and 28 Vac (DC-1). The RXM3AB1F7 offers plug-in mounting mode and operates within an ambient air temperature range of -40 to +55 °C. It has an IP40 degree of protection, consumes 0.01 A of current, and has a power consumption of 1.2 VA. The electrical durability of the relay, when used with a resistive load, is rated for 100,000 operations, and its mechanical durability at no load reaches up to 10,000,000 operations. Additionally, it features a Lockable Test Button (LTB) for latching purposes.

Product Details

  • Control Type
    Lockable test button
  • Maximum Switching Voltage
    250 V IEC
  • Electrical Durability
    100000 cycles resistive
  • CAD Overall Depth
    3.09 in (78.45 mm)
  • [Uimp] Rated Impulse Withstand Voltage
    4 kV 1.2/50 µs
  • Contacts Type And Composition
    3 C/O
  • Average Consumption
    1.2 VA 60 Hz
  • Protection Category
    RT I
  • Series Name
    Miniature
  • Maximum Switching Capacity
    2500 VA/280 W
  • Release Time
    20 ms
  • Net Weight
    0.08 lb(US) (0.037 kg)
  • Status LED
    Without
  • Drop-Out Voltage Threshold
    >= 0.15 Uc
  • Operating Position
    Any position
  • Shape Of Pin
    Flat
  • Minimum Switching Capacity
    170 mW 10 mA, 17 V
  • Product Or Component Type
    Plug-in relay
  • Rated Operational Voltage Limits
    96...132 V AC
  • [Uc] Control Circuit Voltage
    120 V AC 50/60 Hz
  • Contacts Material
    AgNi
  • Mechanical Durability
    10000000 cycles
  • [Ithe] Conventional Enclosed Thermal Current
    10 A -40…131 °F (-40…55 °C)
  • Test Levels
    Level A
  • Range Of Product
    Harmony Electromechanical Relays
  • Utilisation Coefficient
    20 %
  • Device Short Name
    RXM
  • Operate Time
    20 ms
  • CAD Overall Height
    3.11 in (79 mm)
  • Average Coil Resistance
    3630 Ohm 20 °C +/- 15 %
  • Average Coil Consumption In VA
    1.2 60 Hz
  • Safety Reliability Data
    B10d = 100000
  • Device Presentation
    Complete product
  • Operating Rate
    <= 1200 cycles/hour under load <= 18000 cycles/hour no-load
  • Resistive Rated Load
    10 A 250 V AC 10 A 28 V DC
  • [Ui] Rated Insulation Voltage
    250 V IEC 300 V CSA 300 V UL
  • [Ie] Rated Operational Current
    10 A 28 V DC) NO IEC 10 A 250 V AC) NO IEC 5 A 28 V DC) NC IEC 5 A 250 V AC) NC IEC 10 A 30 V DC) UL 10 A 277 V AC) UL

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of RXM3AB1F7 on Powermatic Associates is $6.95. Order now.

RXM3AB1F7 Related Documents

Catalog-1631030370173.pdfProduct Datasheet-1631030370170.pdf

Similar products from: Schneider Electric Industrial Automation Components

M9A26969 on Powermatic Associates

M9A26969

Schneider Electric

Schneider Electric M9A26969 is a tripping coil designed for undervoltage trip coil release (MNx) applications. It belongs to the sub-range of tripping coils and is engineered for DIN rail mounting. This part operates with a control voltage of 230Vac AC.

0 in stock
XB7EV04MP on Powermatic Associates

XB7EV04MP

Schneider Electric

Schneider Electric XB7EV04MP is a monolithic pilot light designed for signaling applications, featuring an integral LED for illumination. This component, part of the XB7 sub-range, is constructed with a plastic body and has a round shape. It offers a rated impulse voltage (Uimp) of 6 kV and is protected to a degree of IP65, NEMA 4, and NEMA 12, ensuring its suitability for various industrial environments. The pilot light operates on a network frequency of 50/60 Hz and requires a supply voltage of 230 V AC. It has a diameter of 22 mm, with net dimensions of 29 mm in height, 54 mm in depth, and 29 mm in width. The light emitted by the LED is red, and it features screw-clamp type terminals for connection.

0 in stock
MG17416 on Powermatic Associates

MG17416

Schneider Electric

Schneider Electric MG17416 is a Miniature Circuit Breaker (MCB) designed as a supplementary protector within the C60 UL1077 sub-range. It features a rated current of 15A and operates on a single pole (1 Pole(s)) configuration. The rated operating voltage (Ue) for this MCB is 277 V. It offers a short circuit breaking rating of 10kA AIR at 240Vac, 5kA AIR at 277Vac, and 10kA AIR at 65Vdc, with protection extended to 1 Pole(s). The tripping curve for this device is classified as type C.

0 in stock
M9F53220 on Powermatic Associates

M9F53220

Schneider Electric

Schneider Electric M9F53220 is a Miniature Circuit Breaker (MCB) within the C60BPR sub-range, designed with a 2 Pole configuration and a rated current of 20A. It features a rated insulation voltage (Ui) of 500 V and a rated impulse voltage (Uimp) of 6 kV. The M9F53220 offers a short circuit breaking rating of 14kA AIR at both 120Vac and 240Vac, and 10kA AIR at 480Y/277Vac and 125Vdc. It supports a rated voltage (AC) for phase-to-phase connections up to 440 V and has 2 protected poles. The tripping curve for this MCB is classified as D.

1 in stock
RSLZVA1 on Powermatic Associates

RSLZVA1

Schneider Electric

Schneider Electric RSLZVA1 is a plug-in socket designed for DIN Rail mounting within the RSL range. It operates within an ambient air temperature range of -40 to +70��C and offers an IP20 degree of protection. This socket supports the PROFIBUS DP communication protocol and has a current consumption of 100mA with no load. It features protection functions including short-circuit bearing lock, magnetic field proof, and reverse polarity. The RSLZVA1 is capable of a maximum rotational speed of 6000rpm and has a moment of inertia of 4 x 10^-6 kg.m^2. It provides a resolution of 16-bit for single-turn and 12-bit for multi-turn operations. Additionally, it can withstand a maximum radial load of 80 N and a maximum axial load of 40 N.

16 in stock
MGN61508 on Powermatic Associates

MGN61508

Schneider Electric

Schneider Electric MGN61508 is a Miniature Circuit Breaker (MCB) designed for DC applications. It falls under the C60H-DC sub-range and features a rated current of 10A with a rated voltage of 250V DC. This MCB is equipped with 1 pole that is protected and utilizes a C tripping curve.

32 in stock

Manufacturer warranty

RXM3AB1F7 Schneider Electric

$6.95

Your price can be lower.
Log in or Create account to check your discount

Select Qty:

$6.95

$6.95 each

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

Compare RXM3AB1F7 with other Industrial Automation Components products

Control Type

Maximum Switching Voltage

Electrical Durability

CAD Overall Depth

[Uimp] Rated Impulse With...

Contacts Type And Composi...

Average Consumption

Protection Category

Series Name

Maximum Switching Capacit...

Selected product

RXM3AB1F7
Backordered
RXM3AB1F7
Schneider Electric

Schneider Electric RXM3AB1F7 is a miniature plug-in relay within the RXM sub-range, featuring contac...

Control TypeLockable test button

Maximum Switching Voltage250 V IEC

Electrical Durability100000 cycles resistive

CAD Overall Depth3.09 in (78.45 mm)

[Uimp] Rated Impulse Withstand Voltage4 kV 1.2/50 µs

Contacts Type And Composition3 C/O

Average Consumption1.2 VA 60 Hz

Protection CategoryRT I

Series NameMiniature

Maximum Switching Capacity2500 VA/280 W

M9F53220
1 in stock
M9F53220
Schneider Electric

Schneider Electric M9F53220 is a Miniature Circuit Breaker (MCB) within the C60BPR sub-range, design...

Control TypeToggle

Maximum Switching Voltage-

Electrical Durability-

CAD Overall Depth-

[Uimp] Rated Impulse Withstand Voltage-

Contacts Type And Composition-

Average Consumption-

Protection Category-

Series Name-

Maximum Switching Capacity-

M9F43306
2 in stock
M9F43306
Schneider Electric

Schneider Electric M9F43306 is a Miniature Circuit Breaker (MCB) within the C60BP sub-range, designe...

Control TypeToggle

Maximum Switching Voltage-

Electrical Durability-

CAD Overall Depth-

[Uimp] Rated Impulse Withstand Voltage-

Contacts Type And Composition-

Average Consumption-

Protection Category-

Series Name-

Maximum Switching Capacity-

About the manufacturer

Schneider Electric

Powermatic Associates is an authorized Schneider Electric distributor, proudly offering a diverse portfolio of innovative solutions tailored to meet the dynamic needs of today's industrial landscape. Schneider Electric stands as a global leader in energy management and automation, providing cutting-edge products and services that drive efficiency and sustainability across a variety of sectors. The...

Recently viewed products

LGF36600U31XAAUOYH1 on Powermatic Associates

LGF36600U31XAAUOYH1

Schneider Electric

Square D by Schneider Electric LGF36600U31XAAUOYH1 is a Moulded Case Circuit Breaker (MCCB) within the PowerPacT LGF sub-range. It features a factory-installed 24Vdc undervoltage (U/V) trip release coil and a factory-installed 1A/1B (1NO+1NC) auxiliary switch OF wire harness. Designed for PowerPacT L-Frame 600 Micrologic 3.3 (LI), this 3-pole (3P) circuit breaker is rated for 600A and 600Vac, with a busbar rating of 80% and an 18kA busbar. It offers long-time (L) and instantaneous (I) protection functions, with a rated insulation voltage (Ui) of 750 V and a rated voltage (AC) of 600Vac 600Y/347Vac. The unit is designed for individual unit mount on plate, with a net height of 382 mm, width of 153 mm, and depth of 171 mm. It has an IP40 degree of protection and operates manually via a toggle. Protection settings include L - Protection against overload adjustable from 0.3 to 1 x In (50A to 150A) and I - Instantaneous protection against short-circuit adjustable from 1.5 to 11 x In (900A to 6600A). The control voltage (AC) specification indicates that the circuit breaker opens instantaneously when the undervoltage trip supply voltage drops between 35% and 70% of its rated control voltage, allowing closing when the supply voltage reaches 85% of rated control voltage. The rated operating voltage (Ue) is 690 V, with a rated impulse voltage (Uimp) of 8 kV. The trip current rating is 600 AT, with a frame current rating of 600 AF. It has a short circuit breaking rating of 65kA at 240Vac, 35kA at 480Vac, 35kA at 480Y/277Vac, 18kA at 600Vac, 18kA at 600Y/347Vac, and 20kA at 500Vdc, all according to UL489 standards. The trip unit type is an electronic Micrologic Standard 3.3 (LI) with LI protection and no display, categorized under utilisation category A.

5 in stock

Relevant products

RXM3AB1FD on Powermatic Associates

RXM3AB1FD

Verified stock: 0

Schneider Electric RXM3AB1FD is a miniature plug-in relay from the RXM range, designed with Ag/Ni - Silver - Nickel alloy contacts. It features a 3C/O - 3PDT (3 Pole Double Throw) contact type and operates with a control voltage of 110 Vdc. The relay is rated for a current of 10 A at both 250Vac (AC-1) and 28Vac (DC-1). It is designed for plug-in mounting and can operate within an ambient air temperature range of -40 to +55 °C. The RXM3AB1FD offers an IP40 degree of protection and has a current consumption of 0.008 A with a power consumption of 0.9 W. Its electrical durability with a resistive load is rated at 100,000 operations, while its mechanical durability at no load reaches 10,000,000 operations. Additionally, it includes a Lockable Test Button (LTB) for latching purposes.

Schneider Electric

RXM3AB2E7 on Powermatic Associates

RXM3AB2E7

Verified stock: 0

Schneider Electric RXM3AB2E7 is a miniature plug-in relay within the RXM sub-range, designed with Ag/Ni - Silver - Nickel alloy contacts. This relay features a 3C/O - 3PDT (3 Pole Double Throw) contact type, with a control voltage of 48 Vac. It is rated for currents up to 10 A at both 250Vac (AC-1) and 28Vac (DC-1). The RXM3AB2E7 is designed for plug-in mounting and can operate within an ambient air temperature range of -40 to +55 °C. It has an IP40 degree of protection and consumes 0.025 A of current with a power consumption of 1.2 VA. This relay includes a visual position indicator through an LED and boasts an electrical durability of 100,000 operations with a resistive load and a mechanical durability of 10,000,000 operations at no load. Additionally, it features a Lockable Test Button (LTB) for latching.

Schneider Electric

RXM3AB2B7 on Powermatic Associates

RXM3AB2B7

Verified stock: 0

Schneider Electric RXM3AB2B7 is a miniature plug-in relay within the RXM sub-range, featuring contacts made from an Ag/Ni - Silver - Nickel alloy. This relay is designed with 3C/O - 3PDT (3 Pole Double Throw) contact type, and operates with a control voltage of 24 Vac. It is rated for currents up to 10 A at both 250 Vac (AC-1) and 28 Vac (DC-1). The RXM3AB2B7 offers plug-in mounting and can operate within an ambient air temperature range of -40 to +55 °C. It has an IP40 degree of protection and consumes 0.05 A (AC) with a power consumption of 1.2 VA. This model includes a visual position indicator through an LED and boasts an electrical durability of 100,000 operations with a resistive load, alongside a mechanical durability of 10,000,000 operations at no load. Additionally, it features a Lockable Test Button (LTB) for latching.

Schneider Electric

RXM3AB2F7 on Powermatic Associates

RXM3AB2F7

Verified stock: 0

Schneider Electric RXM3AB2F7 is a miniature plug-in relay within the RXM sub-range, featuring contacts made from an Ag/Ni - Silver - Nickel alloy. This relay is designed with 3C/O - 3PDT (3 Pole Double Throw) contact type, and operates with a control voltage of 120 Vac. It is rated for a current of 10 A at both 250Vac (AC-1) and 28Vac (DC-1). The RXM3AB2F7 offers plug-in mounting and can operate within an ambient air temperature range of -40 to +55 °C. It has an IP40 degree of protection and consumes 0.01 A of current. This model includes a visual position indicator through an LED, consumes 1.2 VA of power, and features a lockable test button (LTB) for latching. Its electrical durability is rated at 100,000 operations for resistive loads, and it has a mechanical durability of 10 million operations at no load.

Schneider Electric

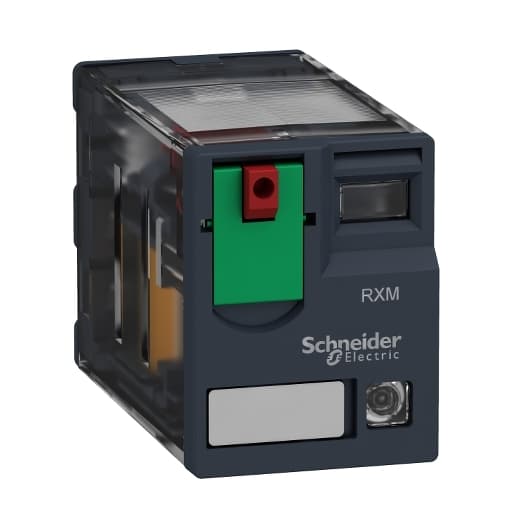

RXM3AB2P7 on Powermatic Associates
