XB4BA51 Schneider Electric Industrial Automation Components
Part#:XB4BA51
Manufacturer:Schneider Electric
Category:Industrial Automation Components
Product Lifecycle:Active
Product description

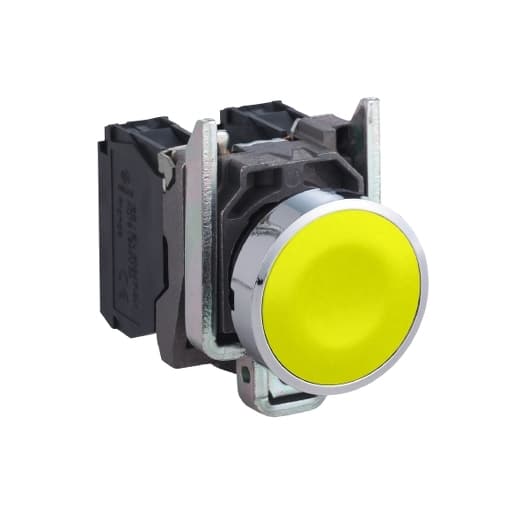

Schneider Electric XB4BA51 is a flush modular push-button designed for various automation applications. This push-button, part of the XB4 sub-range, features a chromium-plated bezel and a body made of Zamak with a metal bezel, ensuring durability. It has a round shape with dimensions including a diameter of 22 mm, a net height of 47 mm, a net depth of 52 mm, and a net width of 30 mm. The XB4BA51 is equipped with one Normally Open (NO) auxiliary contact and offers a degree of protection rated at IP66, NEMA 4X, and NEMA 13, suitable for demanding environments. It is designed to withstand mechanical durability of up to 5,000,000 operations at no load and has an electrical durability of 1,000,000 operations with load. The rated impulse voltage (Uimp) is 6 kV, and it features short-circuit protection by a 10A gG cartridge fuse. The control circuit rated current is specified as 10 A at 120Vac (AC-15), 6 A at 240Vac (AC-15), 3 A at 600Vac (AC-15), 1.2 A at 125Vdc (DC-13), 0.55 A at 250Vdc (DC-13), and 0.27 A at 600Vdc (DC-13) with a 0.1 A operating force of 3.8 N. The XB4BA51 utilizes screw-clamp type terminals and operates with a spring-return (impulse/momentary) mode.
Product Details
- Type Of Operator spring return
- Height 1.85 in (47 mm)
- Resistance To High Pressure Washer 1015.26 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
- Product Or Component Type Push-button
- Device Short Name XB4
- Mounting Diameter 0.87 in (22 mm)
- Bezel Material Chromium plated metal
- Fixing Collar Material Zamak
- Range Of Product Harmony XB4
- Sale Per Indivisible Quantity 1
- Shape Of Signaling Unit Head Round
- Operator Profile Yellow flush, unmarked
- Contact Operation Slow-break
- Head Type Standard
- Width 1.18 in (30 mm)
- [Ith] Conventional Free Air Thermal Current 10 A EN/IEC 60947-5-1
- Tightening Torque 7.08…10.62 lbf.in (0.8…1.2 N.m) EN 60947-1
- Contacts Material Silver alloy (Ag/Ni)
- [Ui] Rated Insulation Voltage 600 V 3)EN/IEC 60947-1
- Device Presentation Complete product
- [Uimp] Rated Impulse Withstand Voltage 6 kV EN/IEC 60947-1
- Net Weight 0.18 lb(US) (0.08 kg)
- Contacts Usage Standard contacts
- Positive Opening Without
- Mechanical Durability 10000000 cycles
- Terminals Description ISO N°1 (13-14)NO
- Short-Circuit Protection 10 A cartridge fuse gG EN/IEC 60947-5-1
- Depth 2.05 in (52 mm)
- Contacts Type And Composition 1 NO
- Operating Force 3.8 N NO changing electrical state
- Connections - Terminals Screw clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1 Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end EN/IEC 60947-1
- Electrical Reliability Λ < 10exp(-6) 5 V 1 mA in clean environment EN/IEC 60947-5-4 Λ < 10exp(-8) 17 V 5 mA in clean environment EN/IEC 60947-5-4
- Operating Travel 0.10 in (2.6 mm) NO changing electrical state) 0.17 in (4.3 mm) total travel)
- Shape Of Screw Head Cross Philips no 1 Cross pozidriv No 1 Slotted flat Ø 4 mm Slotted flat Ø 5.5 mm
- Electrical Durability 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C 1000000 cycle
- [Ie] Rated Operational Current 3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 1.2 A 600 V, AC-15, A6
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
