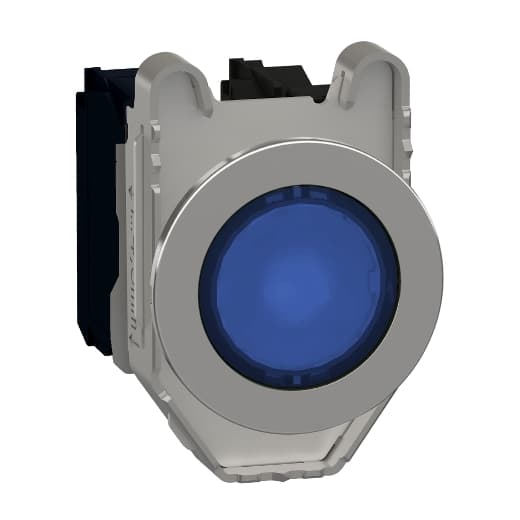

XB4FW36M5 Schneider Electric Industrial Automation Components

Product Details

• Range Of Product
  Harmony XB4
• Operator Profile
  Blue flush
• Height
  1.85 in (47 mm)
• Head Type
  Built-in-flush
• Contacts Type And Composition
  1 NO + 1 NC
• Device Mounting
  Built-in
• Contacts Material
  Silver alloy (Ag/Ni)
• Current Consumption
  14 mA
• Operator Additional Information
  With plain lens
• Net Weight
  0.29 lb(US) (0.132 kg)
• Mechanical Durability
  10000000 cycles
• Device Short Name
  XB4F
• Supply Voltage Limits
  195…264 V AC
• Fixing Collar Material
  Zamak
• [Us] Rated Supply Voltage
  230...240 V AC 50/60 Hz
• Contacts Usage
  Standard contacts
• [Ith] Conventional Free Air Thermal Current
  10 A EN/IEC 60947-5-1
• Short-Circuit Protection
  10 A cartridge fuse gG EN/IEC 60947-5-1
• Bezel Material
  Chromium plated metal
• Light Source
  Protected LED
Fixing Mode
By screws 7.08 lbf.in (0.8 N.m)
Sale Per Indivisible Quantity
1
Resistance To High Pressure Washer
1015.26 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
Surge Withstand
1 kV IEC 61000-4-5
Bulb Base
Integral LED
Width
1.44 in (36.6 mm)
Depth
2.17 in (55 mm)
Positive Opening
With conforming to EN/IEC 60947-5-1 appendix K
[Uimp] Rated Impulse Withstand Voltage
6 kV EN/IEC 60947-1
Device Presentation
Complete product
Shape Of Signaling Unit Head
Round
Mounting Diameter
1.20 in (30.5 mm)
Type Of Operator
spring return
Product Or Component Type
Illuminated push-button
Contact Operation
Slow-break
Tightening Torque
7.08…10.62 lbf.in (0.8…1.2 N.m) EN 60947-1
Signalling Type
Steady
[Ui] Rated Insulation Voltage
600 V 3)EN/IEC 60947-1
Service Life
100000 h at rated voltage and 25 °C
Connections - Terminals
Screw clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1 Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end EN/IEC 60947-1
Operating Force
3.5 N NC changing electrical state 3.8 N
Terminals Description ISO N°1
(21-22)NC (13-14)NO
Electrical Reliability
Λ < 10exp(-6) 5 V 1 mA in clean environment EN/IEC 60947-5-4 Λ < 10exp(-8) 17 V 5 mA in clean environment EN/IEC 60947-5-4
Operating Travel
0.06 in (1.5 mm) NC changing electrical state) 0.10 in (2.6 mm) NO changing electrical state) 0.17 in (4.3 mm) total travel)
Shape Of Screw Head
Cross Philips no 1 Cross pozidriv No 1 Slotted flat Ø 4 mm Slotted flat Ø 5.5 mm
Electrical Durability
1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C 1000000 cycle
[Ie] Rated Operational Current
3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 1.2 A 600 V, AC-15, A6
