XB7NA25343 Schneider Electric Electronic Components

XB7NA25343 on Powermatic Associates
Schneider Electric

Part#:XB7NA25343

Manufacturer:Schneider Electric

Category:Electronic Components

Product Lifecycle:Active

Product description

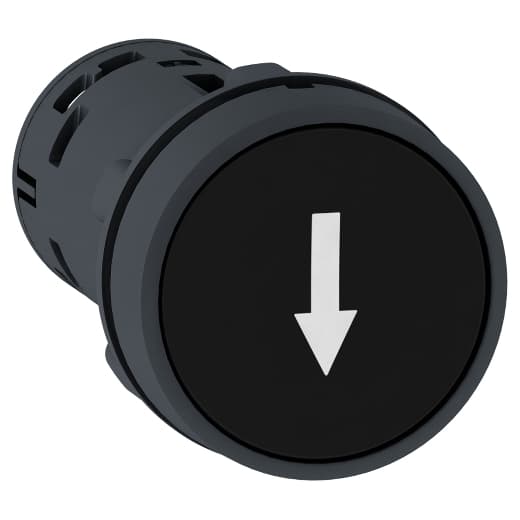

Schneider Electric XB7NA25343 is a monolithic flush push-button designed for various automation applications. This component, part of the XB7 sub-range, features a plastic body with a round shape and offers a degree of protection rated at IP65, NEMA 3, and NEMA 12, ensuring its suitability for use in environments requiring dust and water resistance. It has a diameter of 22 mm, a net height of 29 mm, a net depth of 51.5 mm, and a net width of 29 mm. The push-button is equipped with 1 Normally Open (NO) and 1 Normally Closed (NC) auxiliary contacts, supporting short-circuit protection through a 4A gG cartridge fuse. It operates with a control circuit rated current of 0.6 A at 120Vac (AC-14), 0.3 A at 240Vac (AC-14), 0.22 A at 125Vdc (DC-13), and 0.1 A at 250Vdc (DC-13). The XB7NA25343 utilizes screw-clamp terminals for connections and is designed for spring-return (impulse/momentary) operation. Both its mechanical and electrical durability are rated at 1,000,000 operations, and it has a rated impulse voltage (Uimp) of 4 kV, ensuring its longevity and reliability in various applications.

Product Details

  • Device Presentation
    Monolithic product
  • Device Short Name
    XB7
  • Device Mounting
    Fixing hole 0.89 in (22.5 mm) 22.3 +0.4/0 EN/IEC 60947-1
  • Sale Per Indivisible Quantity
    10
  • CAD Overall Height
    1.14 in (29 mm)
  • Mechanical Durability
    1000000 cycles
  • [Uimp] Rated Impulse Withstand Voltage
    4 kV EN/IEC 60947-1
  • Contacts Type And Composition
    1 NO + 1 NC
  • Fixing Mode
    Fixing nut beneath head 17.70…21.24 lbf.in (2…2.4 N.m)
  • Shape Of Signaling Unit Head
    Round
  • Net Weight
    0.05 lb(US) (0.021 kg)
  • Contact Operation
    Slow-break
  • Type Of Operator
    spring return
  • [Ui] Rated Insulation Voltage
    250 V 3)EN/IEC 60947-1
  • Electrical Reliability
    Λ <= 10exp(-6) 17 V, 5 mA EN/IEC 60947-5-4
  • Range Of Product
    Harmony XB7
  • CAD Overall Width
    1.14 in (29 mm)
  • Positive Opening
    With NC contact EN/IEC 60947-5-1 appendix K
  • Tightening Torque
    7.08…10.62 lbf.in (0.8…1.2 N.m) EN 60947-1
  • Mounting Diameter
    0.87 in (22 mm)
  • Product Or Component Type
    Push-button
  • CAD Overall Depth
    2.03 in (51.5 mm)
  • Operator Profile
    Black flush, down arrow white)
  • Short-Circuit Protection
    4 A cartridge fuse gG EN/IEC 60947-5-1
  • Terminals Description ISO N°1
    (13-14)NO (21-22)NC
  • Connections - Terminals
    Screw clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1 Screw clamp terminals, 1 x 0.34...2 x 2.5 mm² without cable end EN/IEC 60947-1
  • Fixing Center
    >= 30 x 40 mm support panel) metal 0.04…0.24 in (1…6 mm) >= 30 x 40 mm support panel) plastic 0.08…0.24 in (2…6 mm)
  • IP Degree Of Protection
    IP20 IEC 60529 rear face) IP65 IEC 60529 front face)
  • Electrical Durability
    1000000 cycles, DC-13, 0.3 A 24 V 216000 cyc/mn 0.5 EN/IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 0.03 A 230 V 216000 cyc/mn 0.5 EN/IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 0.09 A 240 V 108000 cyc/mn 0.5 EN/IEC 60947-5-1 appendix C
  • [Ie] Rated Operational Current
    0.1 A 250 V, DC-13, R300 EN/IEC 60947-5-1 0.22 A 125 V, DC-13, R300 EN/IEC 60947-5-1 0.3 A 240 V, AC-14, D300 EN/IEC 60947-5-1 0.6 A 120 V, AC-14, D300 EN/IEC 60947-5-1
  • Shape Of Screw Head
    Cross JIS No 1 Cross compatible with Philips no 1 screwdriver Cross pozidriv No 1 Slotted flat Ø 4 mm Slotted flat Ø 5.5 mm

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

XB7NA25343 Related Documents

Product Datasheet-1631032305421.pdfCatalog-1631032305423.pdf
