Part#:XB7NA44

Manufacturer:Schneider Electric

Category:Electronic Components

Product Lifecycle:Active

Product description

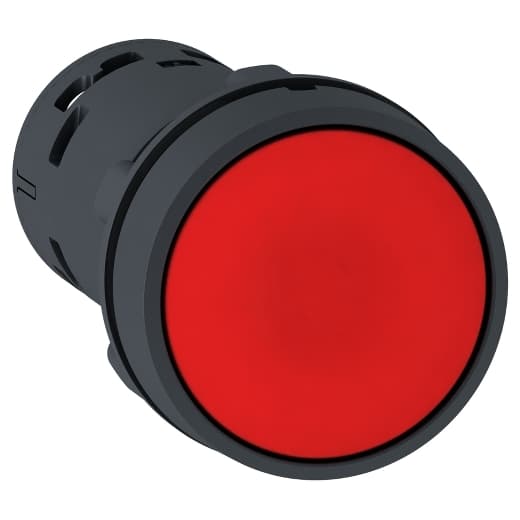

Schneider Electric XB7NA44 is a monolithic flush push-button designed for various automation applications. This push-button, part of the XB7 sub-range, features a plastic body with a round shape and is rated for an impulse voltage of 4 kV. It offers a degree of protection rated at IP65, NEMA 3, and NEMA 12, ensuring its suitability for use in environments requiring a high degree of protection. The XB7NA44 has a mechanical durability of 1,000,000 operations at no load and an electrical durability of 1,000,000 operations with load, highlighting its longevity in operational contexts. It comes with two Normally Closed (NC) auxiliary contacts and provides short-circuit protection through a 4A gG cartridge fuse. The control circuit rated current is specified as 0.6 A for 120Vac (AC-14), 0.3 A for 240Vac (AC-14), 0.22 A for 125Vdc (DC-13), and 0.1 A for 250Vdc (DC-13). This push-button features screw-clamp type terminals for secure connections and operates on a spring-return (impulse/momentary) mechanism. The dimensions include a diameter of 22 mm, a net height of 29 mm, a net depth of 51.5 mm, and a net width of 29 mm.

Product Details

  • Device Short Name
    XB7
  • Shape Of Signaling Unit Head
    Round
  • CAD Overall Depth
    2.03 in (51.5 mm)
  • [Uimp] Rated Impulse Withstand Voltage
    4 kV EN/IEC 60947-1
  • Operator Profile
    Red flush, unmarked
  • Device Mounting
    Fixing hole 0.89 in (22.5 mm) 22.3 +0.4/0 EN/IEC 60947-1
  • Tightening Torque
    7.08…10.62 lbf.in (0.8…1.2 N.m) EN 60947-1
  • Range Of Product
    Harmony XB7
  • Contacts Type And Composition
    2 NC
  • Short-Circuit Protection
    4 A cartridge fuse gG EN/IEC 60947-5-1
  • Mechanical Durability
    1000000 cycles
  • Product Or Component Type
    Push-button
  • Sale Per Indivisible Quantity
    10
  • CAD Overall Height
    1.14 in (29 mm)
  • Positive Opening
    With NC contact EN/IEC 60947-5-1 appendix K
  • [Ui] Rated Insulation Voltage
    250 V 3)EN/IEC 60947-1
  • Mounting Diameter
    0.87 in (22 mm)
  • CAD Overall Width
    1.14 in (29 mm)
  • Net Weight
    0.05 lb(US) (0.021 kg)
  • Type Of Operator
    spring return
  • Fixing Mode
    Fixing nut beneath head 17.70…21.24 lbf.in (2…2.4 N.m)
  • Electrical Reliability
    Λ <= 10exp(-6) 17 V, 5 mA EN/IEC 60947-5-4
  • Device Presentation
    Monolithic product
  • Contact Operation
    Slow-break
  • Connections - Terminals
    Screw clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1 Screw clamp terminals, 1 x 0.34...2 x 2.5 mm² without cable end EN/IEC 60947-1
  • IP Degree Of Protection
    IP20 IEC 60529 rear face) IP65 IEC 60529 front face)
  • Fixing Center
    >= 30 x 40 mm support panel) metal 0.04…0.24 in (1…6 mm) >= 30 x 40 mm support panel) plastic 0.08…0.24 in (2…6 mm)
  • Terminals Description ISO N°1
    (21-22)NC (11-12)NC
  • Electrical Durability
    1000000 cycles, DC-13, 0.3 A 24 V 216000 cyc/mn 0.5 EN/IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 0.03 A 230 V 216000 cyc/mn 0.5 EN/IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 0.09 A 240 V 108000 cyc/mn 0.5 EN/IEC 60947-5-1 appendix C
  • [Ie] Rated Operational Current
    0.1 A 250 V, DC-13, R300 EN/IEC 60947-5-1 0.22 A 125 V, DC-13, R300 EN/IEC 60947-5-1 0.3 A 240 V, AC-14, D300 EN/IEC 60947-5-1 0.6 A 120 V, AC-14, D300 EN/IEC 60947-5-1
  • Shape Of Screw Head
    Cross JIS No 1 Cross compatible with Philips no 1 screwdriver Cross pozidriv No 1 Slotted flat Ø 4 mm Slotted flat Ø 5.5 mm

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
