Part#:XB7NH31

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

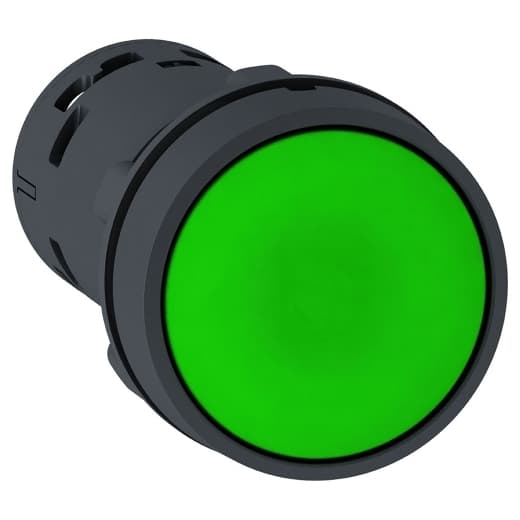

Schneider Electric XB7NH31 is a monolithic flush push-button designed for various automation applications. This push-button, part of the XB7 sub-range, features a plastic body with a round shape and offers a degree of protection rated at IP65, NEMA 3, and NEMA 12, ensuring its suitability for use in environments requiring dust and water resistance. It has a mechanical durability of 300,000 operations at no load and comes with 1 Normally Open (NO) auxiliary contact. The XB7NH31 has a diameter of 22 mm, a net height of 29 mm, a net depth of 51.5 mm, and a net width of 29 mm. It is designed to protect against short circuits with a 4A gG cartridge fuse. The control circuit rated current is 0.6 A for 120Vac (AC-14), 0.3 A for 240Vac (AC-14), 0.22 A for 125Vdc (DC-13), and 0.1 A for 250Vdc (DC-13). The XB7NH31 features screw-clamp terminals and supports a push-to-release stay-put (maintained/latched) operating mode. Its rated impulse voltage (Uimp) is 4 kV.

Product Details

  • Positive Opening
    With NC contact EN/IEC 60947-5-1 appendix K
  • Device Presentation
    Monolithic product
  • Sale Per Indivisible Quantity
    10
  • Shape Of Signaling Unit Head
    Round
  • Device Mounting
    Fixing hole 0.89 in (22.5 mm) 22.3 +0.4/0 EN/IEC 60947-1
  • Tightening Torque
    7.08…10.62 lbf.in (0.8…1.2 N.m) EN 60947-1
  • Range Of Product
    Harmony XB7
  • CAD Overall Height
    1.14 in (29 mm)
  • Contact Operation
    Slow-break
  • Operator Profile
    Green flush
  • Device Short Name
    XB7
  • Marking
    Unmarked
  • [Uimp] Rated Impulse Withstand Voltage
    4 kV EN/IEC 60947-1
  • CAD Overall Width
    1.14 in (29 mm)
  • Mounting Diameter
    0.87 in (22 mm)
  • Net Weight
    0.05 lb(US) (0.021 kg)
  • Type Of Operator
    push and push-to-release
  • Contacts Type And Composition
    1 NO
  • Product Or Component Type
    Push-button
  • Mechanical Durability
    300000 cycles
  • CAD Overall Depth
    2.03 in (51.5 mm)
  • Short-Circuit Protection
    4 A cartridge fuse gG EN/IEC 60947-5-1
  • [Ui] Rated Insulation Voltage
    250 V 3)EN/IEC 60947-1
  • Fixing Mode
    Fixing nut beneath head 17.70…21.24 lbf.in (2…2.4 N.m)
  • Electrical Reliability
    Λ <= 10exp(-6) 17 V, 5 mA EN/IEC 60947-5-4
  • IP Degree Of Protection
    IP20 IEC 60529 rear face) IP65 IEC 60529 front face)
  • Terminals Description ISO N°1
    (21-22)NC (13-14)NO
  • Fixing Center
    >= 30 x 40 mm support panel) metal 0.04…0.24 in (1…6 mm) >= 30 x 40 mm support panel) plastic 0.08…0.24 in (2…6 mm)
  • Connections - Terminals
    Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN/IEC 60947-1 Screw clamp terminals, 1 x 0.34...2 x 2.5 mm² without cable end EN/IEC 60947-1
  • Electrical Durability
    1000000 cycles, DC-13, 0.3 A 24 V 216000 cyc/mn 0.5 EN/IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 0.03 A 230 V 216000 cyc/mn 0.5 EN/IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 0.09 A 240 V 108000 cyc/mn 0.5 EN/IEC 60947-5-1 appendix C
  • [Ie] Rated Operational Current
    0.1 A 250 V, DC-13, R300 EN/IEC 60947-5-1 0.22 A 125 V, DC-13, R300 EN/IEC 60947-5-1 0.3 A 240 V, AC-14, D300 EN/IEC 60947-5-1 0.6 A 120 V, AC-14, D300 EN/IEC 60947-5-1
  • Shape Of Screw Head
    Cross JIS No 1 Cross compatible with Philips no 1 screwdriver Cross compatible with pozidriv No 1 screwdriver Slotted compatible with flat Ø 4 mm screwdriver Slotted compatible with flat Ø 5.5 mm screwdriver

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of XB7NH31 on Powermatic Associates is $21.55. Order now.
