LI400P0-Q25LM0-ELIU5X3-H1151 Turck Industrial Automation Components

LI400P0-Q25LM0-ELIU5X3-H1151 on Powermatic Associates
Turck
  • LI400P0-Q25LM0-ELIU5X3-H1151
  • LI400P0-Q25LM0-ELIU5X3-H1151

Part#:LI400P0-Q25LM0-ELIU5X3-H1151

Alt. Part#:100001935

Manufacturer:Turck

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

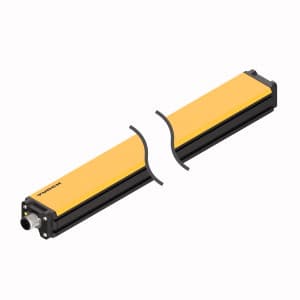

LI400P0-Q25LM0-ELIU5X3-H1151 Turck - LI400P0-Q25LM0-ELIU5X3-H1151 Inductive Linear Position Sensor

Product Details

  • Weight
    697 g
  • RoHS
    Yes
  • Country Of Origin
    DEU
  • HTS Code
    9032896075
  • Current output
    4…20 mA
  • Design
    Profile
  • Housing material
    Aluminum/plastic, PA6-GF30, Anodized
  • Operating voltage
    15…30 VDC
  • Measuring range
    400 mm [15.75 in]
  • Protection class
    IP66/IP67
  • Output function
    Analog output
  • Measuring principle
    Inductive
  • Ambient temperature
    -25…+70 °C
  • Voltage output
    0…10 V
  • Electrical connection
    Connector, M12 × 1
  • Weight
    697 grams
  • Country of Origin
    Germany
  • Ambient Temperature
    -25 degrees celsius, 70 degrees celsius
  • Operating Voltage
    15 volts, 30 volts

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of LI400P0-Q25LM0-ELIU5X3-H1151 on Powermatic Associates is $565.50. Order now.

About the product

Inductive Linear Position Sensor, Measuring range 400 mm, Rectangular, aluminium / plastic, Versatile mounting possibilities, Measuring range displayed via LED, Immune to electromagnetic interference, Extremely short blind zones, Resolution, 16-bit, 4-wire, 15…30 VDC, Analog output, Programmable measuring range, 0…10 V and 4…20 mA, improved machine safety possible through redundancy, M12 × 1 connector, 5-pin
