REI-E-113T10C-2B360-H1181 Turck Industrial Automation Components

REI-E-113T10C-2B360-H1181 on Powermatic Associates
Turck
  • REI-E-113T10C-2B360-H1181
  • REI-E-113T10C-2B360-H1181

Part#:REI-E-113T10C-2B360-H1181

Alt. Part#:100011555

Manufacturer:Turck

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

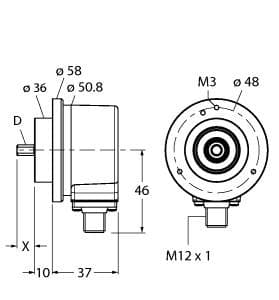

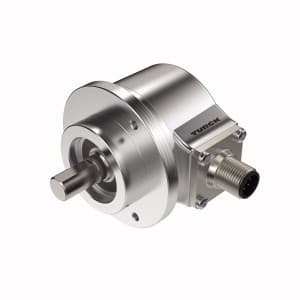

REI-E-113T10C-2B360-H1181 Turck - REI-E-113T10C-2B360-H1181 Incremental Encoder, Efficiency Line

Product Details

  • Weight
    400 g
  • Country Of Origin
    IND
  • HTS Code
    9032894000
  • Technology
    Optical
  • Shaft Type
    Solid shaft
  • Protection class shaft
    IP64
  • Resolution, incremental
    360  ppr
  • Flange type
    Clamping flange
  • Output function
    Push-Pull/HTL, with inverted signals
  • Output type
    Incremental
  • Housing material
    Die-cast zinc
  • Flange diameter
    Ø  58  mm
  • Protection class
    IP64
  • Shaft diameter D [mm]
    10  mm
  • Encoder line
    Efficiency-Line
  • Ambient temperature
    -20…+70 °C
  • Electrical connection
    Connector, M12 × 1
  • Operating voltage
    10…30 VDC
  • Ambient Temperature
    -20 degrees celsius, 70 degrees celsius
  • Operating Voltage
    10 volts, 30 volts
  • Weight
    445 grams
  • Country of Origin
    India

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of REI-E-113T10C-2B360-H1181 on Powermatic Associates is $317.30. Order now.

About the product

Incremental Encoder, Efficiency Line, Resolution, incremental 360 ppr, Clamping flange, Ø 58 mm, Solid shaft, Ø 10 mm × 20 mm, Optical measuring principle, Shaft material: stainless steel, Protection class IP64 on housing and shaft side, ‐20…+70 °C, Max. 4500 rpm (continuous operation 3000 rpm), 10…30 VDC, Male connector, M12 x 1, 8-pole, Push-pull, with inverted signals, Pulse frequency max. 300 kHz, 360 pulses per revolution
