REI-E-114I10E-2B1024-H1181 Turck Industrial Automation Components

Name: REI-E-114I10E-2B1024-H1181
Brand: Turck
Price: 317.3 USD
Availability: BackOrder

REI-E-114I10E-2B1024-H1181 on Powermatic Associates

Part#:REI-E-114I10E-2B1024-H1181

Alt. Part#:100011765

Manufacturer:Turck

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

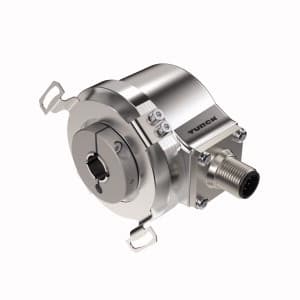

REI-E-114I10E-2B1024-H1181 Turck - REI-E-114I10E-2B1024-H1181 Incremental Encoder, Efficiency Line

Product Details

Weight
349 g
Country Of Origin
IND
HTS Code
9032894000
Operating voltage
10…30 VDC
Output function
Push-Pull/HTL, with inverted signals
Electrical connection
Connector, M12 × 1
Technology
Optical
Flange type
Flange with stator coupling
Flange diameter
Ø 63 mm
Encoder line
Efficiency-Line
Output type
Incremental
Resolution, incremental
1024 ppr
Protection class shaft
IP64
Shaft Type
Hollow shaft
Protection class
IP64
Shaft diameter D [mm]
10 mm
Ambient temperature
-20…+70 °C
Housing material
Die-cast zinc
Weight
349 grams
Country of Origin
India

Operating Voltage

10 volts, 30 volts

Ambient Temperature

-20 degrees celsius, 70 degrees celsius

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of REI-E-114I10E-2B1024-H1181 on Powermatic Associates is $317.30. Order now.

About the product

Incremental Encoder, Efficiency Line, Resolution, incremental 1024 ppr, Flange with stator coupling, Ø 63 mm, Hollow shaft, Ø 10mm, Optical measuring principle, Shaft material: stainless steel, Protection class IP64 on housing and shaft side, ‐20…+70 °C, Max. 4500 rpm (continuous operation 3000 rpm), 10…30 VDC, Male connector, M12 x 1, 8-pole, Push-pull, with inverted signals, Pulse frequency max. 300 kHz, 1024 pulses per revolution
