RI-04QA0C-2I1000-H1181 Turck Industrial Automation Components

RI-04QA0C-2I1000-H1181 on Powermatic Associates
Turck

Part#:RI-04QA0C-2I1000-H1181

Manufacturer:Turck

Category:Industrial Automation Components

Product Lifecycle:Discontinued

Get a quick Quote!

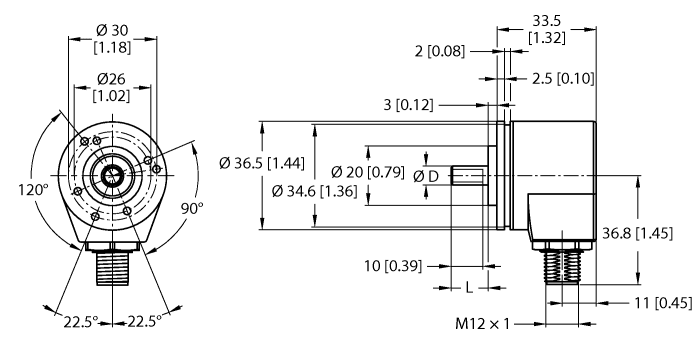

RI-04QA0C-2I1000-H1181 Incremental Encoder, Industrial Line

About the manufacturer: Turck is one of the manufacturers that offers Industrial Automation Components that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.

Check out the RI-04QA0C-2I1000-H1181 Turck price in the box on the right side or send a quick quote.

Product Details

  • Ambient Temperature
    85 degrees celsius
  • Operating Voltage
    18 volts
  • Output function
    Push-Pull 7272, with inverted signals
  • Protection class
    IP65
  • Ambient temperature
    -20…+85 °C
  • Electrical connection
    Connector, M12 × 1
  • Protection class shaft
    IP50
  • Housing material
    Aluminium chromated
  • Shaft diameter D [mm]
    6.35  mm
  • Shaft Type
    Solid shaft
  • Flange type
    Clamping flange
  • Resolution, incremental
    1000  ppr
  • Operating voltage
    5…18 VDC
  • Flange diameter
    Ø  36.5  mm
  • Output type
    Incremental
  • Encoder line
    Industrial-Line
  • Technology
    Optical

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

RI-04QA0C-2I1000-H1181 Description

Incremental Encoder, Industrial Line, Resolution, incremental 1000 ppr, Clamping flange, Ø 36.5mm, Solid shaft with flat, Ø 1/4” x 12.5 mm, Optical measuring principle, Shaft material, stainless steel, Protection class IP50 on shaft side, ‐20…+85 °C, Max. 12000 rpm, 5…18 VDC, Male connector, M12 × 1, 8-pin, Push-pull 7272, with inversion, Pulse frequency max. 200 kHz, 1000 pulses per revolution

Related documents RI-04QA0C-2I1000-H1181 Specs

RI-04QA0C-2I1000-H1181 English-1630966004163.pdf

Manufacturer warranty

Get a quick Quote!

Request a quote, and we will send you price and availability within minutes.

Select Qty:

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support
