RI-10S6C-2K250-H1181 Turck Industrial Automation Components

RI-10S6C-2K250-H1181 on Powermatic Associates
Turck

Part#:RI-10S6C-2K250-H1181

Manufacturer:Turck

Category:Industrial Automation Components

Product Lifecycle:Discontinued

Product description

RI-10S6C-2K250-H1181 Turck - RI-10S6C-2K250-H1181 Incremental Encoder, Industrial Line

Product Details

  • Shaft diameter D [mm]
    6  mm
  • Protection class shaft
    IP67
  • Flange type
    Clamping flange
  • Output function
    Push-Pull 7272, with inverted signals
  • Flange diameter
    Ø  58  mm
  • Electrical connection
    Connector, M12 × 1
  • Encoder line
    Industrial-Line
  • Resolution, incremental
    250  ppr
  • Operating voltage
    5…30 VDC
  • Ambient temperature
    -40…+85 °C
  • Output type
    Incremental
  • Protection class
    IP67
  • Shaft Type
    Solid shaft
  • Technology
    Optical
  • Housing material
    Die-cast zinc
  • Ambient Temperature
    -40 degrees celsius, 85 degrees celsius
  • Operating Voltage
    30 volts

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

About the product

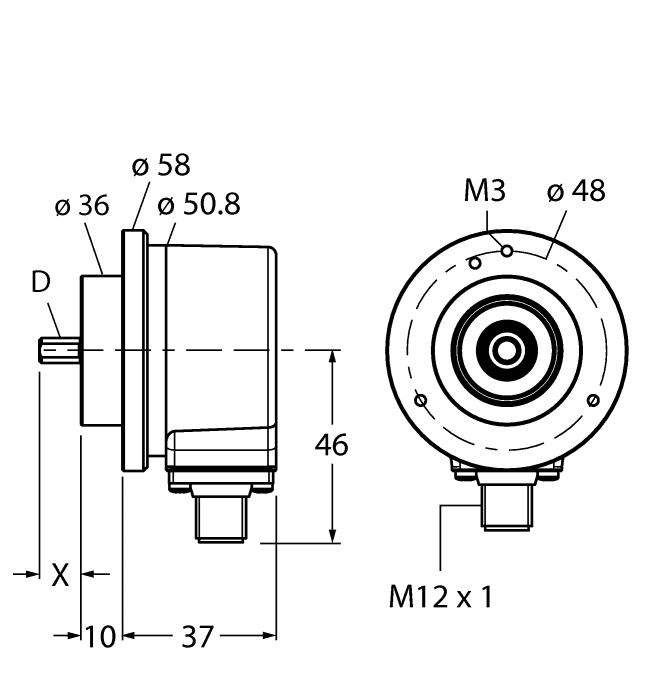

Incremental Encoder, Industrial Line, Resolution, incremental 250 ppr, Clamping flange, Ø 58 mm, Solid shaft, Ø 6 mm × 10 mm, Optical measuring principle, Shaft material: stainless steel, Protection class IP67 on housing and shaft side, ‐40…+85 °C, Max. 6000 rpm (continuous operation 3000 rpm), 5…30 VDC, Male connector, M12 x 1, 8-pole, Push-pull, with inverted signals, Pulse frequency max. 300 kHz, 250 pulses per revolution
