RI-10S8R-2K5000-C1M Turck Industrial Automation Components

Name: RI-10S8R-2K5000-C1M
Brand: Turck

RI-10S8R-2K5000-C1M on Powermatic Associates

Part#:RI-10S8R-2K5000-C1M

Manufacturer:Turck

Category:Industrial Automation Components

Product Lifecycle:Discontinued

Product description

RI-10S8R-2K5000-C1M Turck - RI-10S8R-2K5000-C1M Incremental Encoder, Industrial Line

Product Details

Flange type
Rectangular flange
Protection class shaft
IP67
Shaft diameter D [mm]
8 mm
Electrical connection
Cable
Flange diameter
Ø 63.5 mm
Shaft Type
Solid shaft
Output type
Incremental
Protection class
IP67
Technology
Optical
Encoder line
Industrial-Line
Housing material
Die-cast zinc
Resolution, incremental
5000 ppr
Ambient temperature
-40…+85 °C
Operating voltage
5…30 VDC
Output function
Push-Pull 7272, with inverted signals
Ambient Temperature
-40 degrees celsius, 85 degrees celsius
Operating Voltage
30 volts

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

About the product

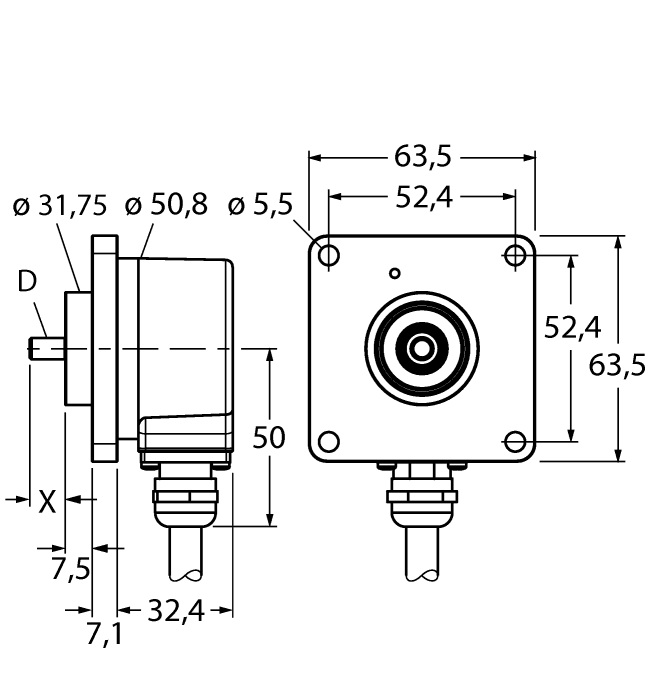

Incremental Encoder, Industrial Line, Resolution, incremental 5000 ppr, Square flange, Ø 63.5 mm, Solid shaft, Ø 8mm x 15mm, Optical measuring principle, Shaft material, stainless steel, Protection class IP67 on housing and shaft side, ‐40…+85 °C, Max. 6000 rpm (continuous operation 3000 rpm), 5…30 VDC, Cable connection, 8-pole, Push-pull, with inverted signals, Pulse frequency max. 300 kHz, 5000 pulses per revolution
