RI-12H15S1-2K1024-H1181 Turck Industrial Automation Components

Name: RI-12H15S1-2K1024-H1181
Brand: Turck
Price: 390 USD
Availability: BackOrder

RI-12H15S1-2K1024-H1181 on Powermatic Associates

Part#:RI-12H15S1-2K1024-H1181

Alt. Part#:1545837

Manufacturer:Turck

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

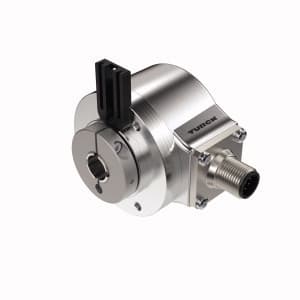

RI-12H15S1-2K1024-H1181 Turck - RI-12H15S1-2K1024-H1181 Incremental Encoder, Industrial Line

Product Details

RoHS
Yes
Country Of Origin
USA
HTS Code
9029108000
Protection class shaft
IP67
Technology
Optical
Ambient temperature
-40…+85 °C
Operating voltage
5…30 VDC
Flange type
Flange with mounting element
Encoder line
Industrial-Line
Housing material
Die-cast zinc
Output function
Push-Pull 7272, with inverted signals
Resolution, incremental
1024 ppr
Protection class
IP67
Output type
Incremental
Electrical connection
Connector, M12 × 1
Shaft Type
Hollow shaft
Shaft diameter D [mm]
15 mm
Ambient Temperature
-40 degrees celsius, 85 degrees celsius
Operating Voltage
30 volts

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of RI-12H15S1-2K1024-H1181 on Powermatic Associates is $390.00. Order now.

About the product

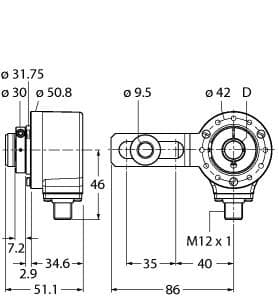

Incremental Encoder, Industrial Line, Resolution, incremental 1024 ppr, Flange with tether arm for 40-75mm mounting diameters, Hollow shaft, Ø 15 mm, Optical measuring principle, Shaft material: stainless steel, Protection class IP67 on housing and shaft side, ‐40…+85 °C, Max. 6000 rpm (continuous operation 3000 rpm), 5…30 VDC, Male connector, M12 x 1, 8-pole, Push-pull, with inverted signals, Pulse frequency max. 300 kHz, 1024 pulses per revolution
