231-272/001-000 WAGO Industrial Automation Components

231-272/001-000 on Powermatic Associates
WAGO

Part#:231-272/001-000

Manufacturer:WAGO

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

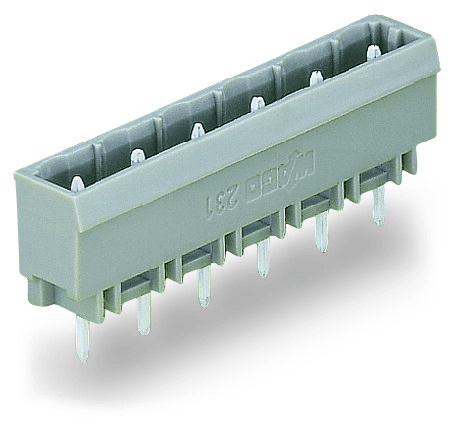

231-272/001-000 WAGO - Male header; 12-pole; THT; 1.2 x 1.2 mm solder pin; straight; pin spacing 7.5 mm; gray

Product Details

  • Weight
    5.570001465 g
  • Country Of Origin
    Germany
  • HTS Code
    85366990990
  • Voltage
    300 volts, 500 volts
  • Color
    Gray
  • Insulation Material
    Polyamide
  • Country of Origin
    Germany
  • Current
    15 amperes, 16 amperes
  • Height
    0.669 inches, 17 millimeters
  • Weight
    5.570 grams
  • Flammability Class
    V0
  • Width
    3.571 inches, 90.7 millimeters
  • Connection Type
    For PCB
  • Contact Type
    Tin
  • Depth
    0.331 inches, 8.4 millimeters
  • Package Type
    Box
  • Contact Material
    Copper

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 231-272/001-000 on Powermatic Associates is $5.08. Order now.

About the product

WAGO 231-272/001-000 is a connector part of the MCS - MULTI CONNECTION SYSTEM, designed without breaking capacity as per DIN EN 61984, indicating it should not be connected or disconnected under load or when live. It adheres to IEC/EN 60664-1 standards, with nominal voltages of 500V (III/3), 630V (III/2), and 1000V (II/2), all with a rated impulse voltage of 6kV and a rated current of 16A. UL and CSA approvals include ratings of 300V and 600V with currents ranging from 10A to 15A, depending on the use group. It features a single connection type across one level, with a total of 12 poles, and a pin spacing of 7.5mm. The connector measures 90.7mm in width, 17mm in height, with a depth of 8.4mm, and solder pin dimensions of 1.2 x 1.2mm. It offers variable coding, anti-rotation protection, and is designed for PCB mounting with THT contacts. The connector is made from gray Polyamide (PA66), with tin-plated electrolytic copper contacts, and meets UL94 V0 flammability standards. It operates within a temperature range of -60 to +100°C and is RoHS compliant. The product is packaged in boxes of 50 pieces, with a GTIN of 4044918929431, and is manufactured in Germany.
