733-204/032-000 WAGO Industrial Automation Components

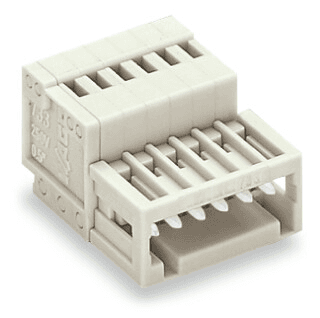

WAGO 733-204/032-000 is a connector part of the MCS - MULTI CONNECTION SYSTEM, designed without breaking capacity as specified in DIN EN 61984, indicating it should not be connected or disconnected under load or when live. It adheres to IEC/EN 60664-1 standards, with nominal voltages of 100V (III/3), 160V (III/2), and 320V (II/2), all with a rated impulse voltage of 2.5kV and a rated current of 6A. UL and CSA approvals are noted, with a rated voltage of 150V and a rated current of 4A for both standards under Use Group B. The connector features 4 connection points, supports a single connection type across one level, and utilizes CAGE CLAMP technology for connection, requiring an operating tool for actuation. It accommodates solid and fine-stranded conductors ranging from 0.08 to 0.5mm2 (28 to 20 AWG), with specific sizes for conductors with insulated or uninsulated ferrules. The physical dimensions include a pin spacing of 2.5mm, a width of 12.5mm, a height of 11.8mm, and a depth of 20.3mm. It offers variable coding, anti-rotation protection, and mismating protection but lacks a locking mechanism for the plug-in connection. The connector is made from light gray Polyamide (PA66), with a chrome-nickel spring steel (CrNi) clamping spring, electrolytic copper (ECu) contacts plated with tin, and meets the UL94 V0 flammability class. It operates within a temperature range of -60 to +100°C and is RoHS compliant. The product is packaged in boxes of 100 pieces, with a GTIN of 4044918849845 and a customs tariff number of 85366930000, indicating its origin in Poland.
