859-734 WAGO Industrial Automation Components

859-734 on Powermatic Associates
WAGO

Part#:859-734

Manufacturer:WAGO

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

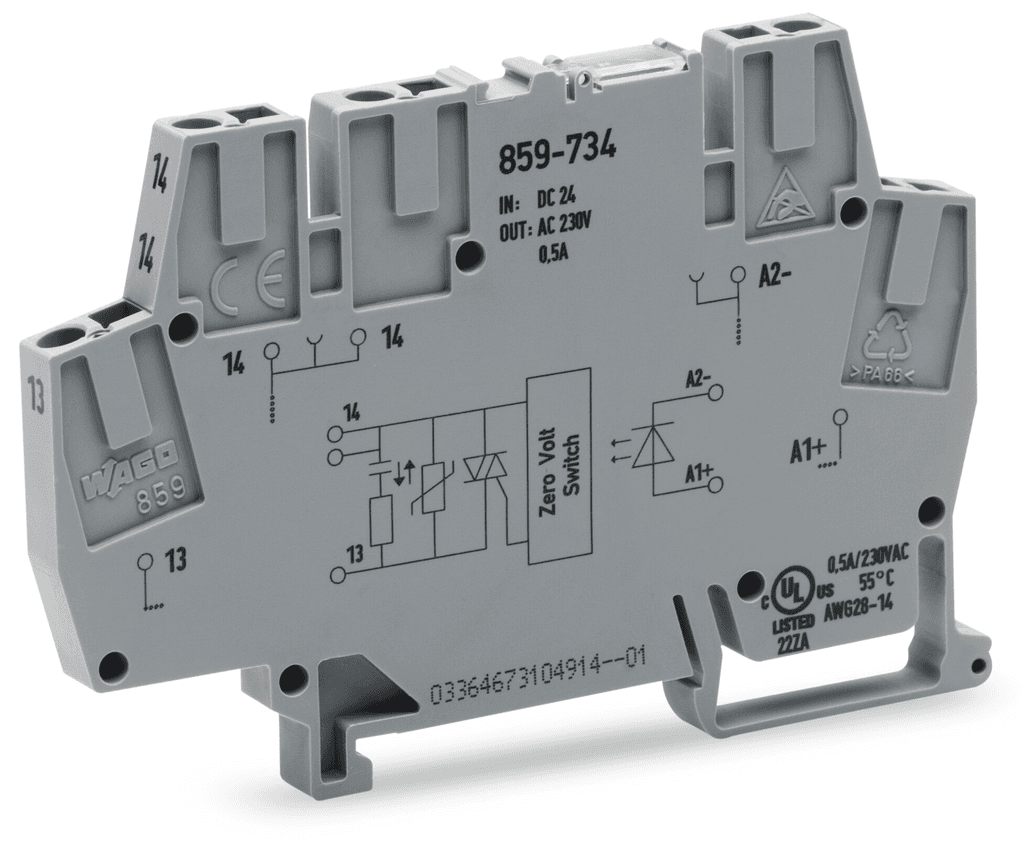

859-734 WAGO - Optocoupler module; Nominal input voltage: 24 VDC; Output voltage range: 24 … 260 VAC; Limiting continuous current: 0.5 A; 2-wire connection; zero-cross switching; Red status indicator; Module width: 6 mm; light gray

Product Details

  • Weight
    20.42900537 g
  • Country Of Origin
    Germany
  • HTS Code
    85365005000
  • Package Type
    Box
  • Height
    3.583 inches, 91 millimeters
  • Mounting Type
    DIN-35 Rail
  • Conductor Size
    14 american wire gauge, 2.5 millimeters
  • Color
    Gray
  • Strip Length
    0.24 inches, 6 millimeters
  • At Rated Voltage
    300 volts
  • Weight
    20.199 grams
  • Country of Origin
    Germany
  • Width
    0.236 inches, 6 millimeters

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 859-734 on Powermatic Associates is $70.76. Order now.

About the product

Wago 859-734 is a solid-state relay (SSR) designed with CAGE-CLAMP spring connections for secure and efficient electrical connectivity. It operates with a rated current of 0.5A continuously and features a red LED indicator for operational visibility. This SSR supports a 2-wire connection and offers zero-cross switching to minimize electrical noise during operation. It is designed to work within a supply voltage range of 24Vac-260Vac (50/60Hz) output and can operate in ambient air temperatures ranging from -40°C to +70°C, with the same range applicable for storage temperatures. The control voltage (DC) spans from 19-28.8Vdc, with 24Vdc as the nominal value. Its compact design includes a net height of H91mm x W6mm x D56mm, making it suitable for mounting on a DIN-35 rail. The SSR features a quick response time for both switching ON and OFF operations, set at 10ms/0.010 s. It is designed for single-pole/single-phase (1P) applications and can handle a main frequency of 50Hz/60Hz. The unit is capable of operating in environments with 5-95% relative humidity, provided there is no condensation.
