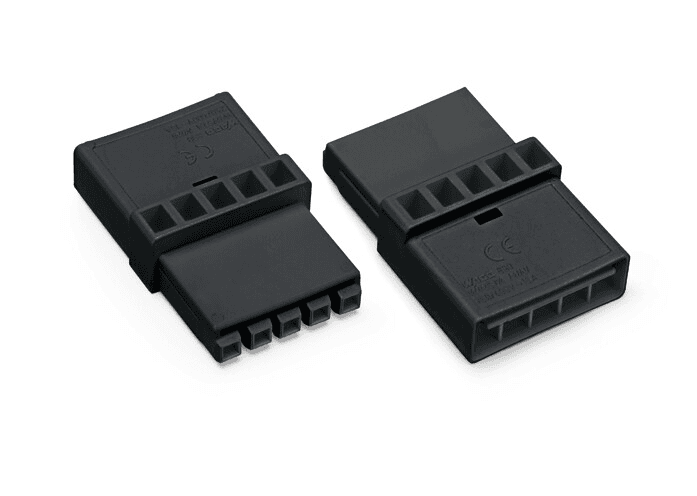

890-605 WAGO Industrial Automation Components

WAGO 890-605 is a component designed for general mains applications, featuring a nominal voltage of 400V as per IEC/EN 60664-1, with a rated impulse voltage of 6kV and a rated current of 16A. For the US market, it has a rated voltage of 600V and a rated current of 12A according to UL 1977, suitable for current interruption in select applications below 5A. This part has a total of 5 potentials, with a 5-pole connection and a pin spacing of 4.4mm. Its dimensions are 23.65mm in width, 10.5mm in height, and 37.2mm in depth. The part is coded as "A" without variable coding and is marked plainly. It supports a mating force of approximately 20...70N, a retention force when locked of >80N, and an unmating force of approximately 20...70N, depending on the pole number, with up to 200 mating cycles without resistive load. The intermediate coupler type distribution box offers IP20 protection, increasing to IP40 when mated. It features a socket/plug contact type with mismating protection and a locking lever for secure connections. The part is black, made from Polyamide (PA66) with a flammability class of V0, and copper or copper alloy contacts that are surface-treated and tin-plated. It weighs 5.8g and operates within a temperature range of -5...+40°C for processing and -35...+85°C for continuous operation. Packaged in boxes of 50 pieces, it is RoHS compliant without exemptions, has a GTIN of 4050821295433, and is manufactured in Poland.
