DQ12AB6FF15 Banner Proximity Sensors

DQ12AB6FF15 on Powermatic Associates
Banner
  • DQ12AB6FF15
  • DQ12AB6FF15

Part#:DQ12AB6FF15

Alt. Part#:32108

Manufacturer:Banner

Category:Proximity Sensors

Product Lifecycle:Active

Product description

WORLD-BEAM DQ12 Series: Fixed-Field; Range: 15 mm; Input: 10-30 V dc; Output: LO (Light Operate) Bipolar: 1 NPN; 1 PNP; 2 m (6.5 ft) Cable; Black Housing

Product Details

  • Weight
    168.282632 g
  • Country Of Origin
    CN
  • Housing Style
    Rectangular
  • Outputs
    Bipolar (NPN & PNP)
  • Special Feature: Intrinsically Safe
    No
  • Indicator
    LEDs
  • Small Visible Spot
    LED
  • Output response time (ms)
    0.85 ON/OFF
  • Max Op. Relative Humidity [%]
    95% @ 50°C
  • Feature: Hazardous Area
    No
  • Sensing Beam
    Visible Red LED
  • Min Op. Temp. (°C)
    -20
  • Adjustments
    N/A
  • Feature: Chemical Resistant
    No
  • Sensing Mode (Detailed)
    Background Suppression (Fixed)
  • Power
    DC
  • Connection
    Cable
  • Operation
    Light Operate
  • Delay at Power-up (ms)
    120
  • Number of Pins
    4
  • DeviceNet
    No
  • Primary Housing Material
    Polyamide
  • Quick Disconnect Type
    No QD
  • IP Rating
    IP67
  • Feature: Audible
    No
  • Special Feature: Water Detection
    No
  • Barrel Diameter (mm)
    N/A
  • IO Link
    No
  • Cable Length (m)
    2
  • Max Sensing Distance (mm)
    15
  • Sensing Beam Wavelength
    645
  • Lens Material
    Polycarbonate
  • Input/Output
    Discrete
  • Max Op. Temp. (°C)
    55
  • Feature: Timing (Hold/Delay)
    No
  • Sensing Mode (General)
    Proximity
  • Power Supply/Supply Voltage
    10-30 V dc
  • Special Feature: Remote Teach
    No
  • Opposed Mode Emitter/Receiver
    N/A
  • Repeatability (µs)
    125
  • Feature: Encapsulated
    No

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of DQ12AB6FF15 on Powermatic Associates is $101.00. Order now.

About the product

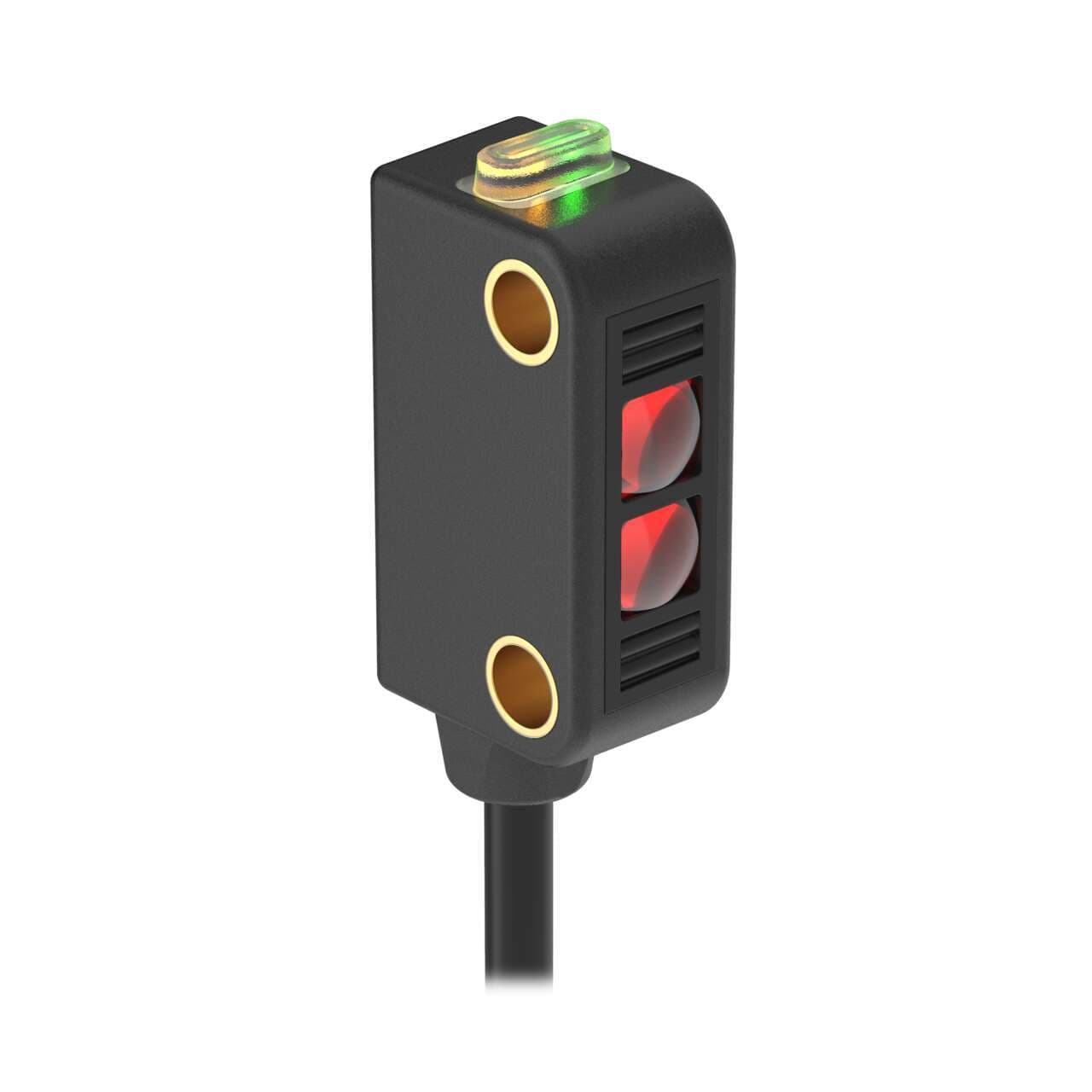

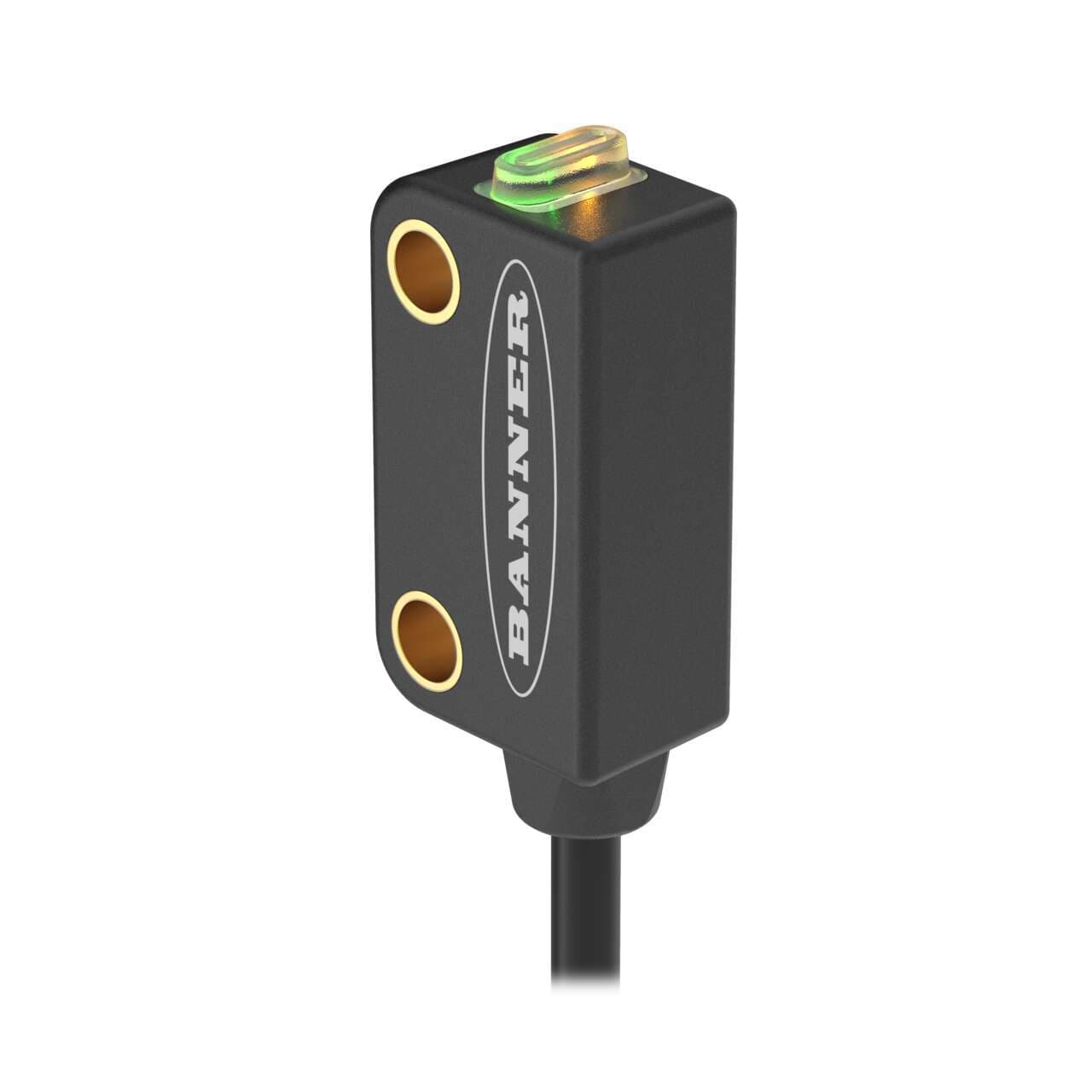

Banner Engineering DQ12AB6FF15 is a fixed-field photo-electric sensor designed with a thermoplastic housing and a polycarbonate lens. It operates within an ambient air temperature range of -20 to +55°C and offers a degree of protection rated at IP67. This sensor emits visible red light with a wavelength of 645 nm and has a response time of 0.85ms. It features a single digital output (PNP/NPN transistor) and operates in a Light-ON mode. The DQ12AB6FF15, part of the DQ12 series, is designed with a background suppression system and has a sensing distance of 15mm. It comes pre-wired with a 6.5ft / 2m cable terminated with bare end flying leads and requires a supply voltage of 10Vdc-30Vdc (12Vdc / 24Vdc nom.). The sensor is rectangular in shape and has a black housing.

DQ12AB6FF15 Related Documents

213155.pdf
