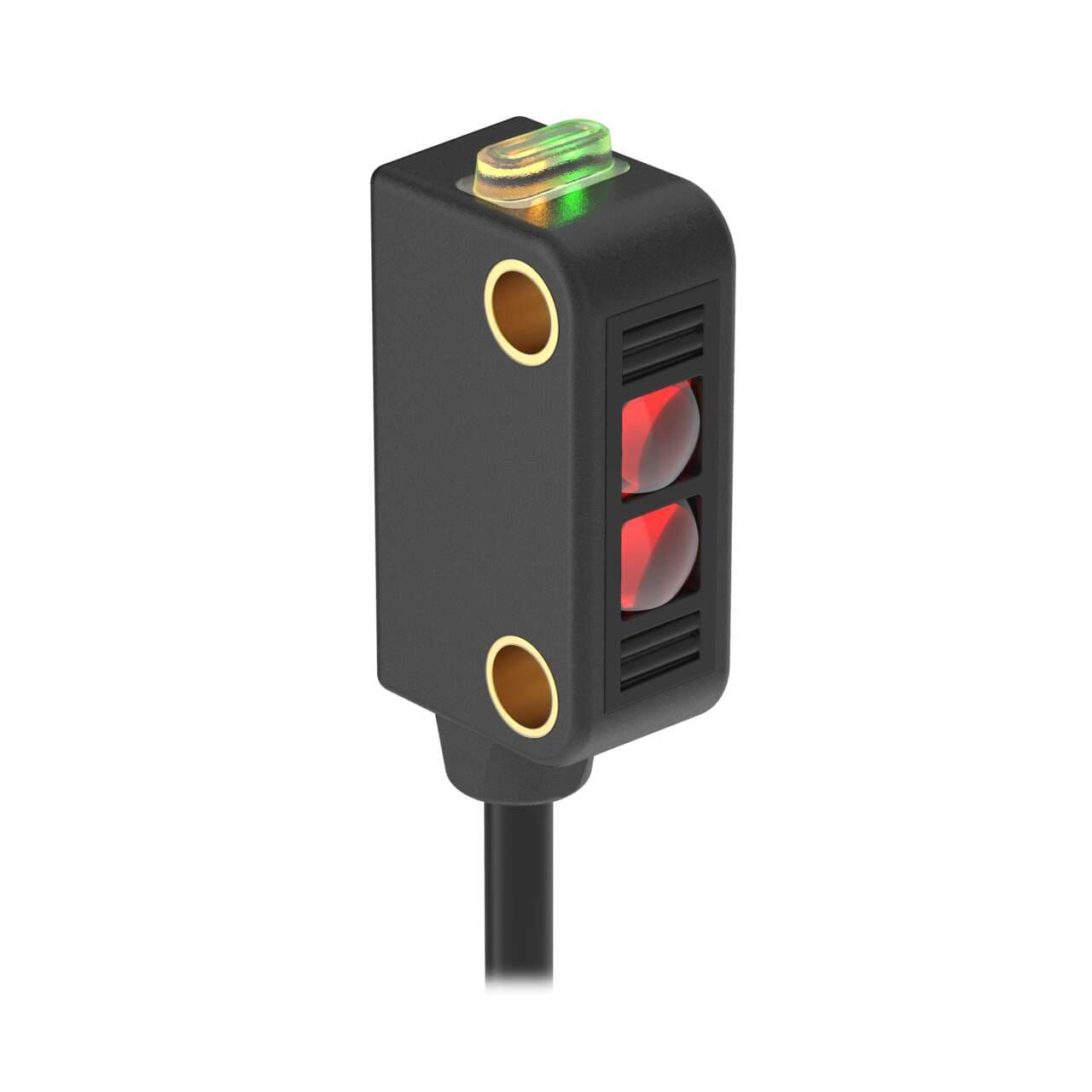

DQ12AB6LVQ Banner Proximity Sensors
Part#:DQ12AB6LVQ
Alt. Part#:85819
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
WORLD-BEAM DQ12 Series: Retroreflective; Range: 3 m; Input: 10-30 V dc; Output: LO (Light OPerate) Bipolar: 1 NPN; 1 PNP; 150 mm (6 in) 4-pin M8 Pigtail QD; Black Housing
Product Details
- Weight 18.14368 g
- Country Of Origin CN
- Max Op. Temp. (°C) 55
- Output response time (ms) 0.7 ON/OFF
- Repeatability (µs) 125
- Special Feature: Water Detection No
- Number of Pins 4
- Delay at Power-up (ms) 120
- Sensing Beam Wavelength 645
- IP Rating IP67
- Adjustments N/A
- Barrel Diameter (mm) N/A
- Max Op. Relative Humidity [%] 95% @ 50°C
- Indicator LEDs
- Lens Material Polycarbonate
- Feature: Timing (Hold/Delay) No
- Opposed Mode Emitter/Receiver N/A
- Feature: Hazardous Area No
- Feature: Audible No
- Feature: Encapsulated No
- DeviceNet No
- Feature: Chemical Resistant No
- IO Link No
- Power DC
- Outputs Bipolar (NPN & PNP)
- Connection Pigtail QD
- Min Op. Temp. (°C) -20
- Operation Light Operate
- Special Feature: Remote Teach No
- Special Feature: Intrinsically Safe No
- Sensing Mode (General) Retroreflective
- Sensing Mode (Detailed) Non-Polarized
- Input/Output Discrete
- Primary Housing Material Polyamide
- Quick Disconnect Type M8 (Pico)
- Housing Style Rectangular
- Power Supply/Supply Voltage 10-30 V dc
- Sensing Beam Visible Red LED
- Cable Length (m) 0.15
- Max Sensing Distance (mm) 3000
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of DQ12AB6LVQ on Powermatic Associates is $127.00. Order now.
About the product
Banner Engineering DQ12AB6LVQ is a photo-electric sensor designed with a thermoplastic housing and a polycarbonate lens. It operates within an ambient air temperature range of -20 to +55°C and offers a degree of protection rated at IP67. This sensor emits visible red light with a wavelength of 645 nm and has a response time of 0.85ms. It features a single digital output (PNP/NPN transistor) and operates in a light-ON mode. The DQ12AB6LVQ, part of the DQ12 series, is designed in a rectangular shape for retro-reflective mode sensing with a sensing distance of up to 3 meters. It comes pre-wired with a 6-inch (150mm) pigtail terminated with a 4-pin Pico-style M8 connector. The sensor requires a supply voltage of 10Vdc to 30Vdc, with 12Vdc and 24Vdc as nominal values, and is presented in a black housing.
