K50CABT2GWHQ Banner Pick-to-Light Sensors

K50CABT2GWHQ on Powermatic Associates
Banner
  • K50CABT2GWHQ
  • K50CABT2GWHQ

Part#:K50CABT2GWHQ

Alt. Part#:805608

Manufacturer:Banner

Category:Pick-to-Light Sensors

Product Lifecycle:Active

Product description

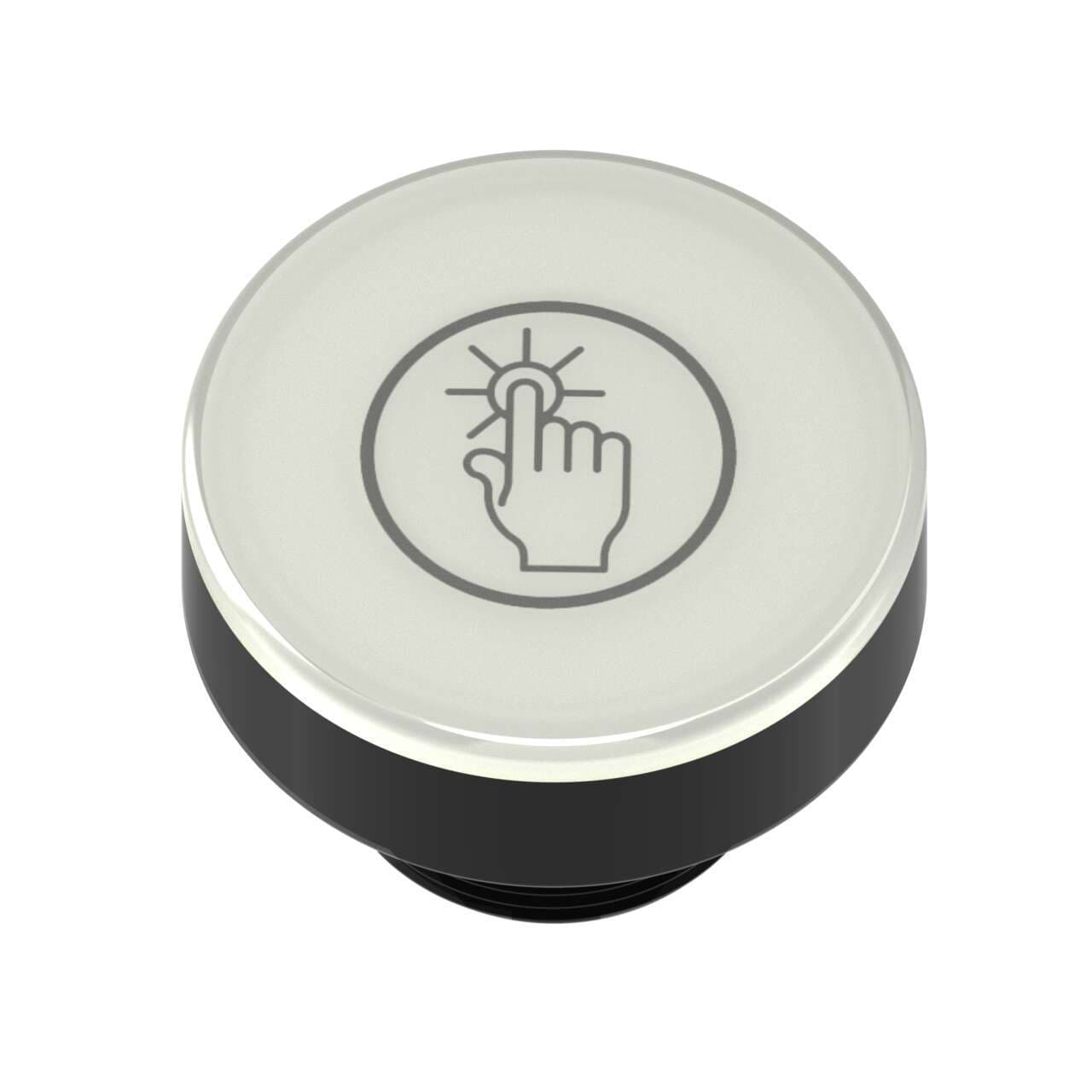

K50 Compact Series: 2-Color Touch Sensor Gen 2; Momentary Output; Voltage: 12-30 V dc; Housing: Polycarbonate; IP67 IP69K; Output: Bipolar (NO); Colors: Green - Not Activated, White - Activated; 5-pin M12 Integral QD

Product Details

  • Weight
    99.79024 g
  • Country Of Origin
    MX
  • Multi-Color Device
    Single Color On
  • Feature: Quick Disconnect
    Yes
  • Feature: Chemical Resistant
    No
  • IO Link
    No
  • Pro-Editor Compatible (Discrete)
    No
  • Wireless
    No
  • Modbus RTU
    No
  • Feature: Audible
    No
  • Feature: Hazardous Area
    No
  • Feature: Washdown Rated
    Yes
  • Primary Window Material
    Polycarbonate Diffused
  • Button Operation
    Momentary
  • Primary Housing Color
    Black
  • Max Op. Temperature (°C)
    50
  • Storage Temp (°C)
    -40 to 70
  • Environmental Rating
    IP67; IP69
  • Min Op. Temperature (°C)
    -40
  • Physical Dimensions (LxWxH or DxH mm)
    50.0 x 48
  • Number of Input Pins/Conductors
    5
  • Max Output Response Time (ms)
    50
  • Output Type
    Bipolar (NPN & PNP)
  • Input Type
    Bimodal (PNP/NPN)
  • Supply Voltage
    12-30 V dc
  • Color 2 - Wavelength/Color Temp/Coordinates
    5000K (Daylight)
  • Operation
    Normally Open
  • Color 1 - Wavelength/Color Temp/Coordinates
    525 nm
  • Connection
    Integral QD
  • Color Option 2
    White
  • Quick Disconnect Type
    M12 (Euro)
  • Animation Option 1
    Solid On
  • Color Option 1
    Green
  • Color Technology
    Standard LED
  • Product Size (mm)
    50
  • Activation Function
    Capacitive Touch
  • Number of Colors / Segments
    1
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Actuation
    Yes
  • Mounting Thread
    M30 x 1.5
  • Primary Housing Material
    Polycarbonate
  • Housing Style
    Base Mount - Flat Window
  • Power Source
    DC
  • Power
    DC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of K50CABT2GWHQ on Powermatic Associates is $159.00. Order now.

About the product

Banner Engineering K50CABT2GWHQ is a high-intensity industrial LED light beacon from the EZ-LIGHT Beacons series, designed for perimeter view indication. This beacon features a single-tier, 1-color yellow LED illumination within a black housing. The round flat window and base are made from clear and black polycarbonate (PC), respectively, ensuring durability. It comes pre-equipped with a 4-pin M12 Euro-style quick disconnect (QD) connector for easy installation. The beacon operates on a supply voltage of 12Vdc to 30Vdc, with 24Vdc nominal, and can be mounted via surface, base pole M30, or 1/2" NPSM thread. With a 50mm (2") cap diameter, it is designed to function in ambient air temperatures ranging from -40°C to +50°C. This unit offers a high degree of protection with ratings of IP67, IP69K, NEMA 4X, and NEMA 13, and has a current consumption of 140mA. Additionally, it features 1 x digital input (12-30Vdc; PNP) for color control.
