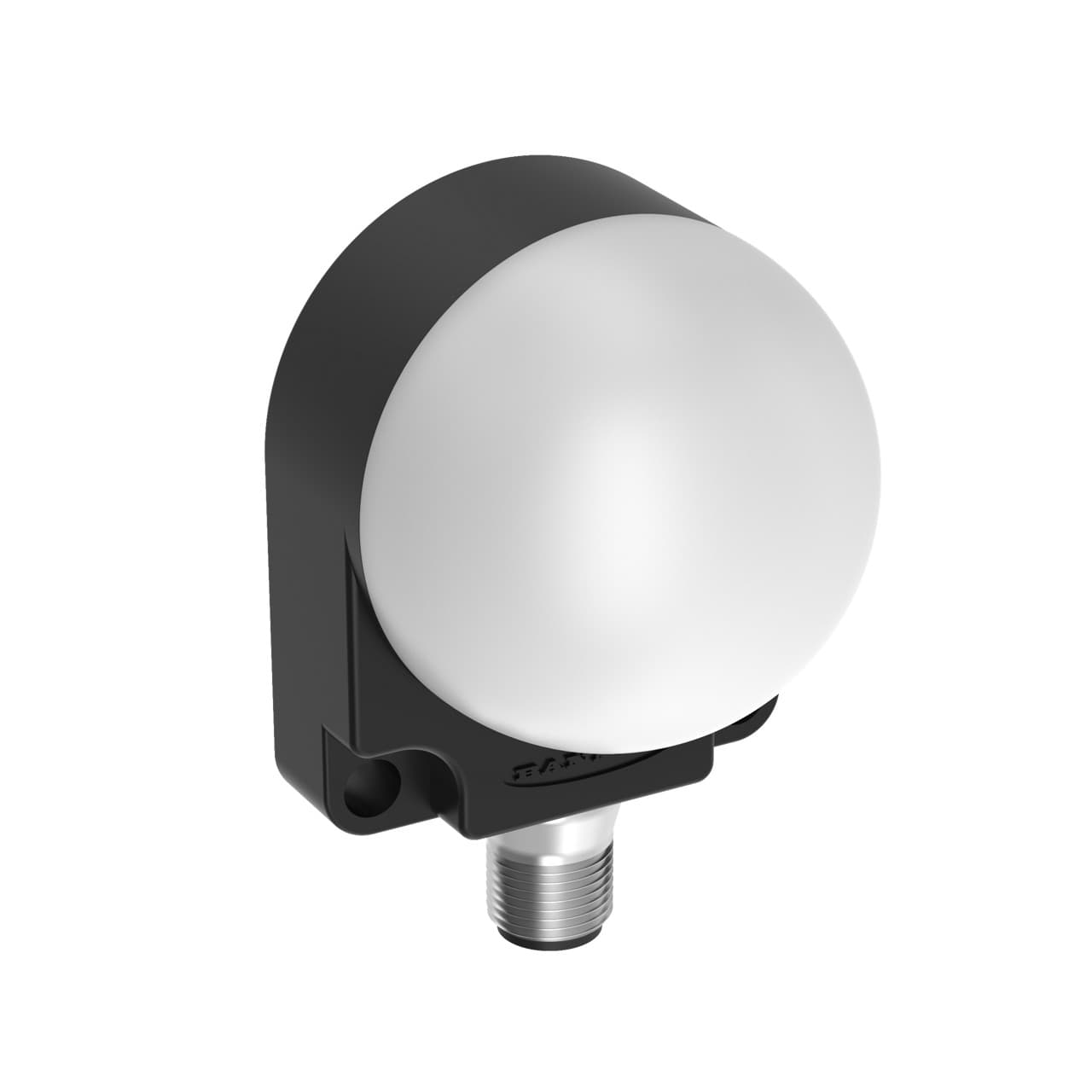

K50FLGRYB4NQ Banner Electronic Components

Product Details

• Number of Colors / Segments
  4
• Animation Option 2
  Multiple
• Animation Option 4
  Multiple
• Mounting Thread
  No Thread
• Connection
  Integral QD
• Supply Voltage
  18-30 V dc
• Color Input Control
  Individual (One wire/color, same number of colors as input wires)
• Color Option 2
  Red
• Max Input Response Time (ms)
  250
• Max Op. Relative Humidity Non-Condensing (%)
  95% @ 50°C
• Multi-Color Device
  Single Color On
• Housing Style
  Flat Mount - Dome Window
• Color Option 1
  Green
• Physical Dimensions (LxWxH or DxH mm)
  50.0 x 76.0 x 44.6
• Power
  DC
• Product Size (mm)
  50
• Color Option 4
  Blue
• Cable Length (m)
  5
• Color Technology
  Standard LED
• Input Type
  NPN
Primary Housing Material
Polycarbonate
Quick Disconnect Type
M12 (Euro)
Color Option 3
Yellow
Power Source
DC
Animation Option 3
Multiple
Number of Input Pins/Conductors
5
Feature: Audible
No
Indication
Yes
Animation Option 1
Multiple
Max Current Color (mA)
50
Feature: Hazardous Area
No
Wireless
No
Max Op. Temperature (°C)
50
Wire Selectable Function
Multi-Function
Feature: Washdown Rated
Yes
Primary Housing Color
Black
Feature: Quick Disconnect
Yes
Pro-Editor Compatible (Discrete)
No
Environmental Rating
IP67; IP69
IO Link
No
Modbus RTU
No
Min Op. Temperature (°C)
-40
Primary Window Material
Polycarbonate Diffused
Feature: Chemical Resistant
No
