Part#:K50FLXRXPQP

Manufacturer:Banner

Category:Electronic Components

Product Lifecycle:Active

Product description

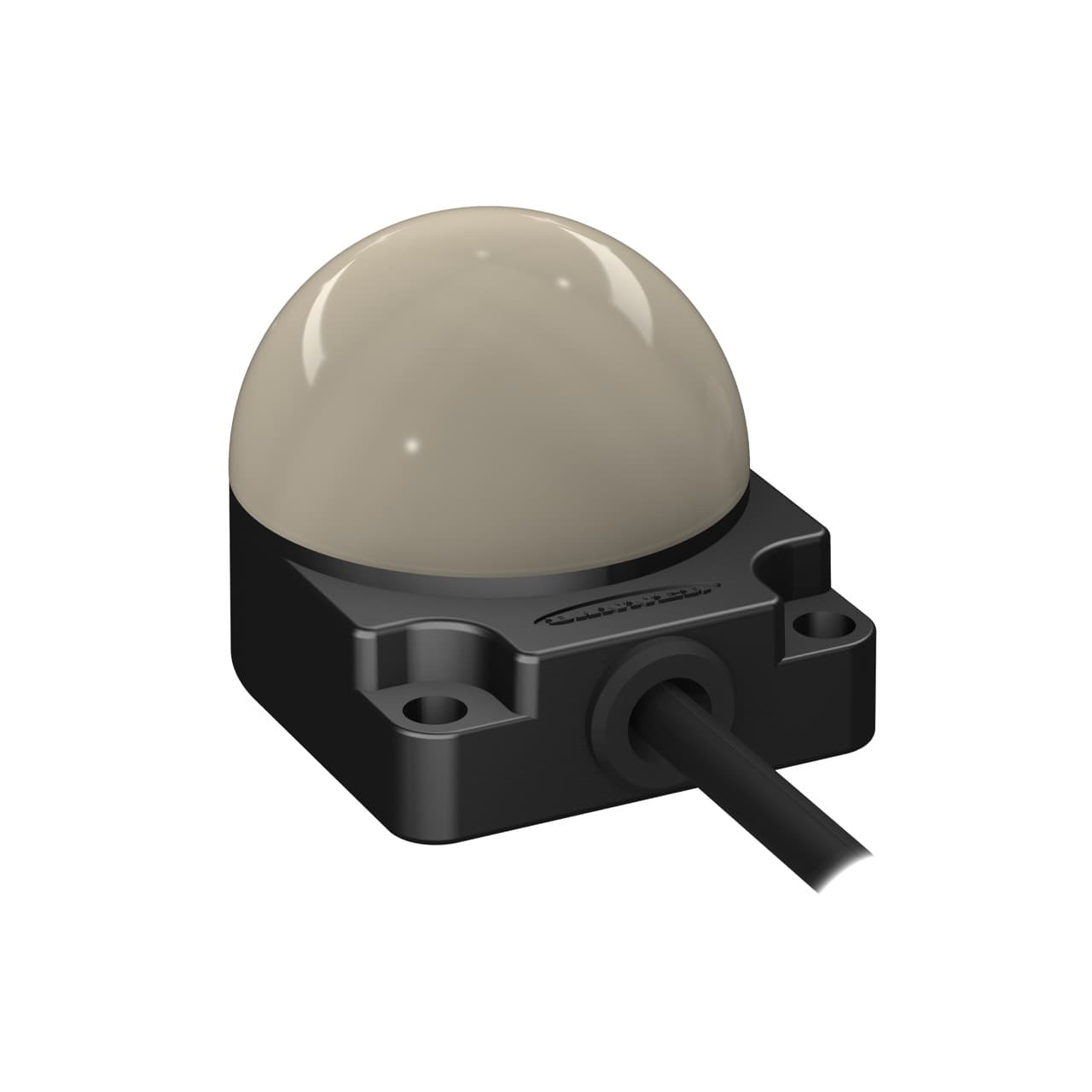

Banner Engineering K50FLXRXPQP is a pilot light from the EZ-LIGHT Flat-mount series designed for surface or wall mounting. This part features a 1-color Red LED illumination housed in a black casing with a dome window on a flat-pack body. The construction utilizes polycarbonate (PC) for both the diffused window and the base, ensuring durability. It is pre-wired with a 2-meter (approximately 6.5 feet) cable that terminates with bare end flying leads for connectivity. The K50FLXRXPQP operates on a supply voltage range of 18Vdc to 30Vdc, with a nominal voltage of 24Vdc, and consumes 40mA of current. It includes one digital input (18-30Vdc; PNP) for color control. The device is designed to withstand ambient air temperatures ranging from -40°C to +50°C and offers a high degree of protection with ratings of IP67 and IP69K. The dome has a diameter of 50mm (2 inches), making it compact and suitable for various applications.

Product Details

  • Indication
    Yes
  • Max Current Color (mA)
    40
  • Max Input Response Time (ms)
    1
  • Feature: Quick Disconnect
    Yes
  • Power Source
    DC
  • Physical Dimensions (LxWxH or DxH mm)
    50.0 x 76.0 x 44.6
  • Primary Housing Color
    Black
  • Primary Housing Material
    Polycarbonate
  • Quick Disconnect Type
    M12 (Euro)
  • Number of Input Pins/Conductors
    4
  • Feature: Hazardous Area
    No
  • Cable Length (m)
    2
  • Color Option 2
    Red
  • Supply Voltage
    18-30 V dc
  • Min Op. Temperature (°C)
    -40
  • IO Link
    No
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Connection
    Pigtail QD
  • Max Op. Relative Humidity Non-Condensing (%)
    95% @ 50°C
  • Power
    DC
  • Input Type
    PNP
  • Primary Window Material
    Polycarbonate Diffused
  • Pro-Editor Compatible (Discrete)
    No
  • Multi-Color Device
    Single Color On
  • Mounting Thread
    No Thread
  • Product Size (mm)
    50
  • Environmental Rating
    IP67; IP69
  • Feature: Washdown Rated
    Yes
  • Number of Colors / Segments
    1
  • Housing Style
    Flat Mount - Dome Window
  • Color Technology
    Standard LED
  • Max Op. Temperature (°C)
    50
  • Feature: Audible
    No
  • Modbus RTU
    No
  • Feature: Chemical Resistant
    No
  • Wireless
    No

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

K50FLXRXPQP Related Documents

One-Color General Purpose Indicators -- Datasheet-1630952603029.pdfK50F CABLE-1630952603021.pdfK50F CABLE-1630952603026.stpK50 Core Series General Purpose Indicator -- Datasheet-1630952603024.pdf
