K50FLRGX8PQ8 Banner Electronic Components
Part#:K50FLRGX8PQ8
Manufacturer:Banner
Category:Electronic Components
Product Lifecycle:Active
Product description

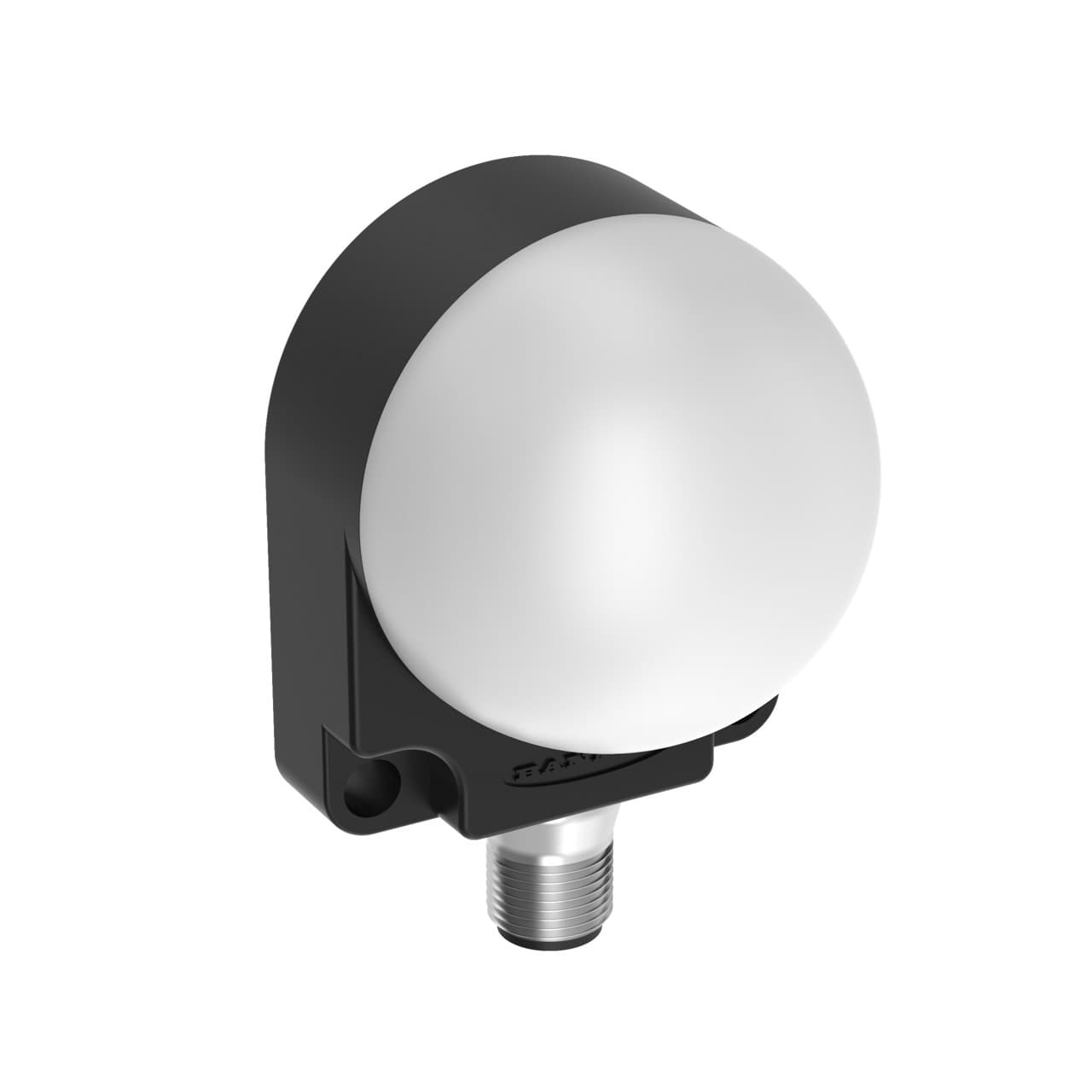

Banner Engineering K50FLRGX8PQ8 is a pilot light from the EZ-LIGHT Flat-mount series designed for surface or wall mounting. This part functions as a flat-pack LED pilot light indicator with a phot-electric sensor emulator and features a 2-color R/G color pattern LED illumination. It has a black housing with a dome window on a flat-pack body, constructed from polycarbonate (PC) for both the diffused window and base, and a polyurethane (PUR) cable sheath. The connection is facilitated by a pre-wired 6" / 15cm PUR pigtail terminated with a 4-pin M12 Euro-style QD connector. It operates on a supply voltage of 18Vdc-30Vdc (24Vdc nominal) and has a diameter of 50mm / 2" for the dome. The ambient air temperature for operation ranges from -40°C to +50°C. This part offers a degree of protection rated at IP67 and IP69K, with a current consumption of 40mA. It also includes 2 x digital inputs (18-30Vdc; PNP) for color control.
Product Details
- Primary Housing Material Polycarbonate
- Connection Integral QD
- Input Type PNP
- Housing Style Flat Mount - Dome Window
- Color Option 1 Red
- Mounting Thread No Thread
- Product Size (mm) 50
- Max Op. Temperature (°C) 50
- Power DC
- Cable Length (m) 0.15
- Color Technology Standard LED
- Animation Option 1 Multiple
- Supply Voltage 18-30 V dc
- Max Op. Relative Humidity Non-Condensing (%) 95% @ 50°C
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Quick Disconnect Type M12 (Euro)
- Physical Dimensions (LxWxH or DxH mm) 50.0 x 76.0 x 44.6
- Feature: Quick Disconnect Yes
- Power Source DC
- Color Option 2 Green
- Max Current Color (mA) 40
- Feature: Washdown Rated Yes
- Indication Yes
- Number of Input Pins/Conductors 8
- Min Op. Temperature (°C) -40
- Feature: Audible No
- Environmental Rating IP67; IP69
- Feature: Chemical Resistant No
- IO Link No
- Animation Option 2 Multiple
- Number of Colors / Segments 2
- Primary Housing Color Black
- Application: Light Curtains Yes
- Primary Window Material Polycarbonate Diffused
- Modbus RTU No
- Pro-Editor Compatible (Discrete) No
- Multi-Color Device Single Color On
- Feature: Hazardous Area No
- Wireless No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
