Part#:K50FLXRXP

Manufacturer:Banner

Category:Electronic Components

Product Lifecycle:Active

Product description

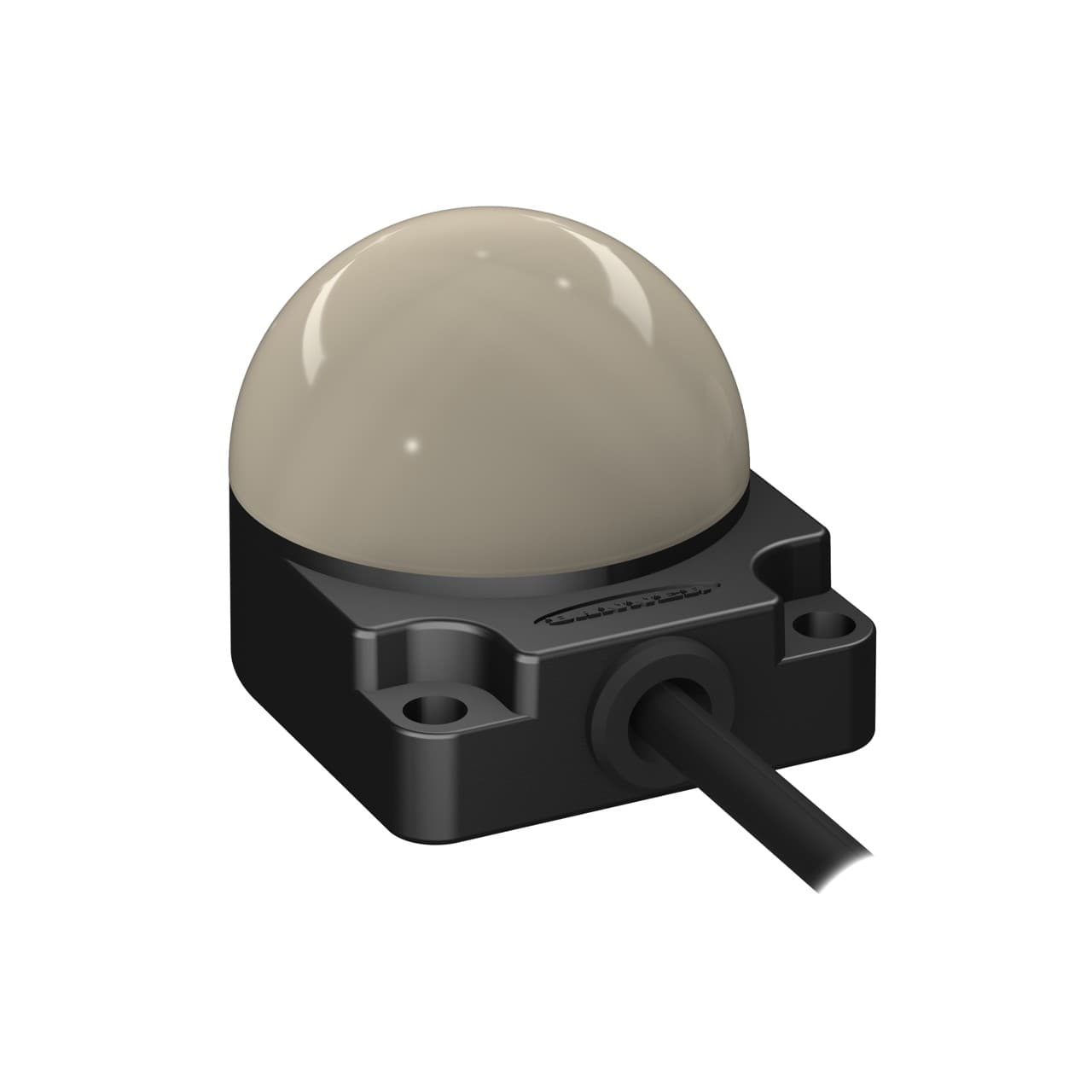

Banner Engineering K50FLXRXP is a pilot light from the EZ-LIGHT Flat-mount series designed for surface or wall mounting. This part features a 1-color Red LED illumination housed in a black casing with a dome window on a flat-pack body. The construction materials include a polycarbonate (PC) diffused window and a polycarbonate (PC) base, ensuring durability. It is pre-equipped with a 4-pin M12 Euro-style QD connector for connectivity. The K50FLXRXP operates on a supply voltage of 18Vdc to 30Vdc, with 24Vdc nominal, and has a current consumption of 40mA. It includes 1 x digital input (18-30Vdc; PNP) for color control. The unit is designed with a 50mm / 2" dome diameter and can operate in ambient air temperatures ranging from -40°C to +50°C. It boasts a degree of protection rated at IP67 and IP69K, indicating a high level of protection against dust and water ingress.

Product Details

  • Number of Colors / Segments
    1
  • Input Type
    PNP
  • Power
    DC
  • Feature: Hazardous Area
    No
  • Housing Style
    Flat Mount - Dome Window
  • Max Current Color (mA)
    40
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Number of Input Pins/Conductors
    4
  • Power Source
    DC
  • Color Option 2
    Red
  • Indication
    Yes
  • Connection
    Cable
  • Primary Housing Material
    Polycarbonate
  • Color Technology
    Standard LED
  • Min Op. Temperature (°C)
    -40
  • Feature: Quick Disconnect
    No
  • Mounting Thread
    No Thread
  • Environmental Rating
    IP67; IP69
  • Wireless
    No
  • Feature: Washdown Rated
    Yes
  • Product Size (mm)
    50
  • Physical Dimensions (LxWxH or DxH mm)
    50.0 x 76.0 x 44.6
  • Feature: Audible
    No
  • Max Input Response Time (ms)
    1
  • Supply Voltage
    18-30 V dc
  • Primary Housing Color
    Black
  • Modbus RTU
    No
  • Max Op. Temperature (°C)
    50
  • Feature: Chemical Resistant
    No
  • Max Op. Relative Humidity Non-Condensing (%)
    95% @ 50°C
  • Primary Window Material
    Polycarbonate Diffused
  • Multi-Color Device
    Single Color On
  • Pro-Editor Compatible (Discrete)
    No
  • IO Link
    No

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

K50FLXRXP Related Documents

K50F CABLE-1630952101798.pdfK50F CABLE-1630952101809.stpOne-Color General Purpose Indicators -- Datasheet-1630952101828.pdfK50 Core Series General Purpose Indicator -- Datasheet-1630952101814.pdf
