K50FLGRY6PQP Banner Pick-to-Light Sensors
Part#:K50FLGRY6PQP
Alt. Part#:802284
Manufacturer:Banner
Category:Pick-to-Light Sensors
Product Lifecycle:Active
Product description
K50 Series EZ-LIGHT: 3-Color I/O Block Compatible Flat Pack Indicator; Voltage: 18-30 V dc; Housing: Polycarbonate; Environmental Rating: IP67; IP69K; Input: PNP; Colors: Green Red Yellow; 150 mm (6 in) 5-pin M12 PVC Pigtail QD
Product Details
- Weight 158.7572 g
- Country Of Origin US
- Power Source DC
- Color Option 1 Green
- Quick Disconnect Type M12 (Euro)
- Max Op. Temperature (°C) 50
- IO Link No
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Max Current Color (mA) 50
- Min Op. Temperature (°C) -40
- Feature: Quick Disconnect Yes
- Mounting Thread No Thread
- Animation Option 1 Solid On
- Number of Input Pins/Conductors 5
- Primary Housing Color Black
- Physical Dimensions (LxWxH or DxH mm) 50.0 x 76.0 x 44.6
- Feature: Audible No
- Cable Length (m) 0.15
- Housing Style Flat Mount - Dome Window
- Connection Pigtail QD
- I/O Block Compatible Yes
- Feature: Hazardous Area No
- Number of Colors / Segments 3
- Color Option 2 Red
- Max Input Response Time (ms) 250
- Feature: Washdown Rated Yes
- Primary Housing Material Polycarbonate
- Product Size (mm) 50
- Supply Voltage 18-30 V dc
- Primary Window Material Polycarbonate Diffused
- Power DC
- Color Option 3 Yellow
- Environmental Rating IP67; IP69
- Feature: Chemical Resistant No
- Indication Yes
- Color Technology Standard LED
- Input Type PNP
- Multi-Color Device Single Color On
- Wireless No
- Pro-Editor Compatible (Discrete) No
- Max Op. Relative Humidity Non-Condensing (%) 95% @ 50°C
- Modbus RTU No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of K50FLGRY6PQP on Powermatic Associates is $130.00. Order now.
About the product

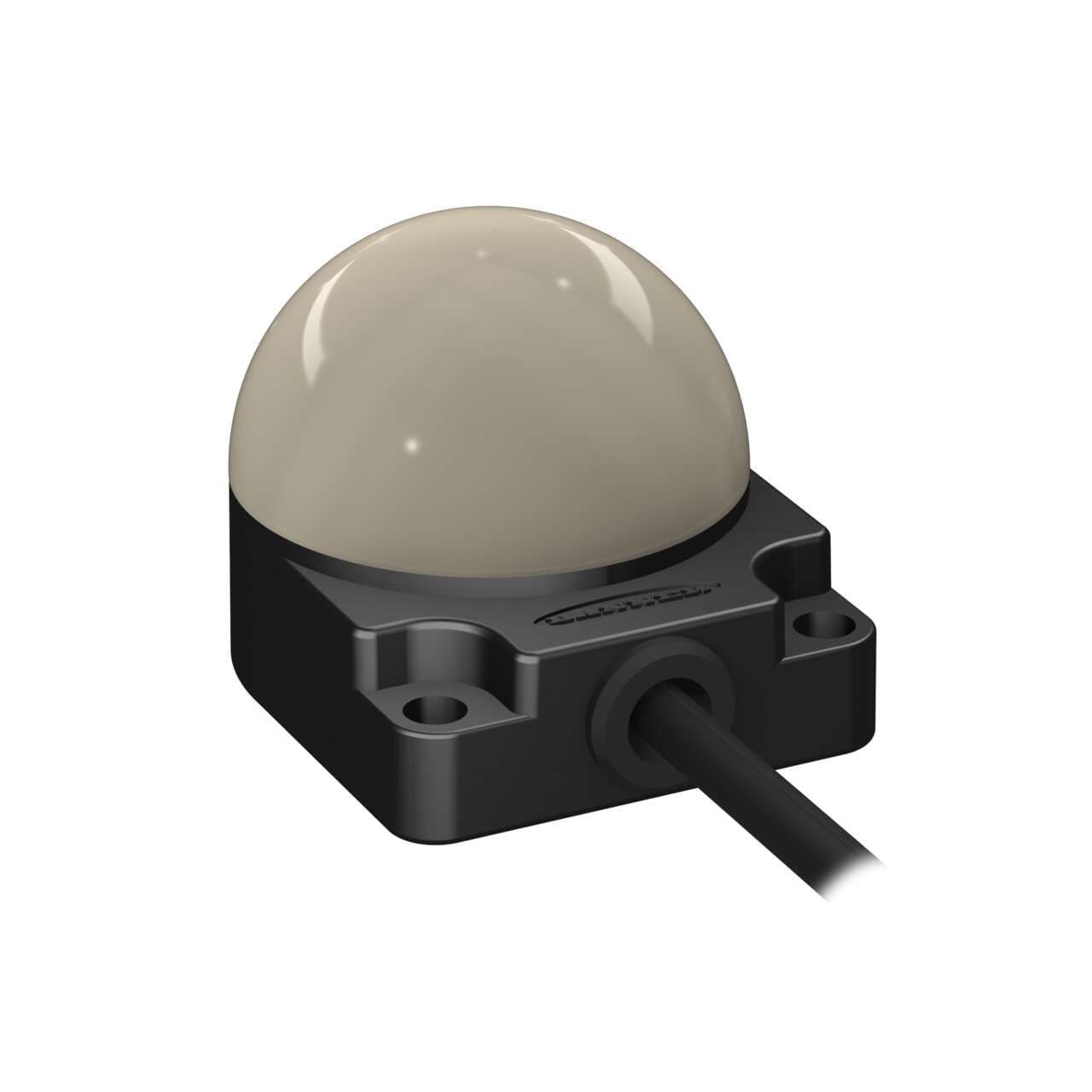

Banner Engineering K50FLGRY6PQP is a pilot light from the EZ-LIGHT Flat-mount series designed for surface or wall mounting. This part features a flat-pack LED pilot light indicator with an I.O. block compatible 3-color G/R/Y color pattern LED illumination housed in a black polycarbonate base with a dome-shaped diffused window, also made of polycarbonate. It is pre-equipped with a 5-pin M12 Euro-style quick disconnect (QD) connector. The supply voltage required for operation is between 18Vdc and 30Vdc, with a nominal voltage of 24Vdc. The dome diameter measures 50mm or approximately 2 inches. This part is designed to operate within an ambient air temperature range of -40°C to +50°C and offers a degree of protection rated at IP67 and IP69K, indicating a high level of protection against dust and water ingress. It consumes 50mA of current and includes 3 digital inputs (18-30Vdc; PNP) for color control.
