K50L2FRGB7QP Banner Pick-to-Light Sensors
Part#:K50L2FRGB7QP
Alt. Part#:802156
Manufacturer:Banner
Category:Pick-to-Light Sensors
Product Lifecycle:Active
Product description
K50 Pro Series: 7-color RGB Indicator FDA; Voltage: 10-30 V dc; Housing: Polycarbonate; IP66 IP67 IP69K; Input: Bimodal; Colors: Multicolor; 150 mm (6 in) 5-pin M12 PVC Pigtail QD
Product Details
- Weight 235.86784 g
- Country Of Origin MX
- Indication Yes
- Power Source DC
- Connection Pigtail QD
- Lumens Color 4 17.2
- Lumens Color 7 25.1
- Max Op. Relative Humidity Non-Condensing (%) 90% @ 50°C
- Housing Style Base Mount - Dome Window
- Color 1 - Wavelength/Color Temp/Coordinates 625 nm
- Color 3 - Wavelength/Color Temp/Coordinates 470 nm
- Color Option 6 Magenta
- Input Type Bimodal (PNP/NPN)
- Color Option 3 Blue
- Color 5 - Wavelength/Color Temp/Coordinates 5950K
- Max Input Response Time (ms) 250
- Feature: Washdown Rated Yes
- Modbus RTU No
- Mounting Thread M30 x 1.5
- Cable Length (m) 0.15
- Color Option 2 Green
- Color 4 - Wavelength/Color Temp/Coordinates 0.457, 0.485
- Wire Selectable Function Multi-Function
- Color Option 5 White
- Color 7 - Wavelength/Color Temp/Coordinates 0.154, 0.321
- Max Op. Temperature (°C) 50
- Feature: Audible No
- Color Input Control Multiple (One or more wires/color, enables more colors than input wires)
- Color Option 1 Red
- Quick Disconnect Type M12 (Euro)
- Lumens Color 6 8.5
- Primary Housing Material FDA Copolyester
- Color 2 - Wavelength/Color Temp/Coordinates 530 nm
- Color Option 7 Cyan
- Environmental Rating IP66; IP67; IP69
- Feature: Quick Disconnect Yes
- Power DC
- Lumens Color 1 6.3
- Color 6 - Wavelength/Color Temp/Coordinates 0.365, 0.176
- Supply Voltage 10-30 V dc
- Color Technology RGB Configurable
- Lumens Color 2 21.4
- Color Option 4 Yellow
- Number of Input Pins/Conductors 5
- Number of Colors / Segments 7
- Product Size (mm) 50
- Lumens Color 3 4.7
- Lumens Color 5 21.3
- Max Current Color (mA) 220
- NEMA Type and UL Type Rating NEMA and UL 4X, 13
- Min Op. Temperature (°C) -40
- Multi-Color Device Single Color On
- Pro-Editor Compatible (Discrete) Yes
- Feature: Chemical Resistant No
- IO Link No
- Physical Dimensions (LxWxH or DxH mm) 50.0 x 58.0
- Feature: Hazardous Area No
- Storage Temp (°C) -40 to 70
- Wireless No
- Primary Window Material Copolyester Diffused
- Primary Housing Color FDA Gray
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of K50L2FRGB7QP on Powermatic Associates is $148.00. Order now.
About the product

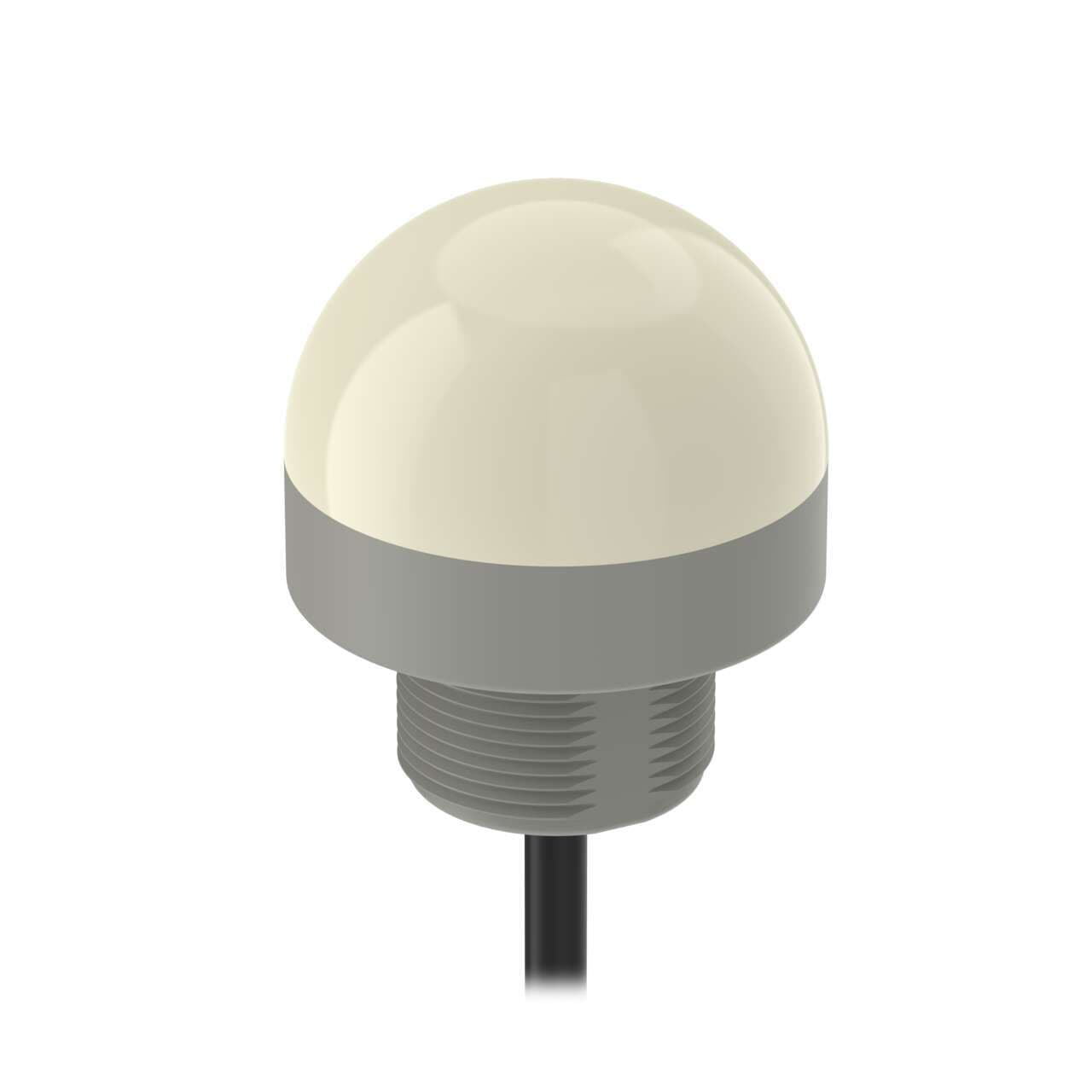

Banner Engineering K50L2FRGB7QP is a pilot light designed with a gray housing and a dome-shaped window made from polycarbonate (PC) diffused material and FDA copolyester, suitable for hygienic applications. This LED pilot light indicator features flashing input control and offers 7-color RGB multicolor LED illumination. It is pre-wired with a 2m / 6.5ft 5-wire cable that terminates with bare end flying leads. The supply voltage required ranges from 10Vdc to 30Vdc, with a nominal range of 12Vdc to 24Vdc. It supports surface, base, or pole flush mounting with a 30mm hole and an M30 thread. The dome diameter is 50mm / 2 inches. This part operates in ambient air temperatures ranging from -40°C to +50°C and boasts a degree of protection rated at IP66, IP67, IP69K, NEMA 4X, NEMA 13, UL type 4X, and UL type 13. It has a current consumption of 220mA and includes 3 x digital inputs for color control and 1 x digital input for flash control, all supporting 10-30Vdc; NPN/PNP.
