K50LDRXXP Banner Pick-to-Light Sensors

K50LDRXXP on Powermatic Associates
Banner
  • K50LDRXXP
  • K50LDRXXP

Part#:K50LDRXXP

Alt. Part#:84732

Manufacturer:Banner

Category:Pick-to-Light Sensors

Product Lifecycle:Active

Product description

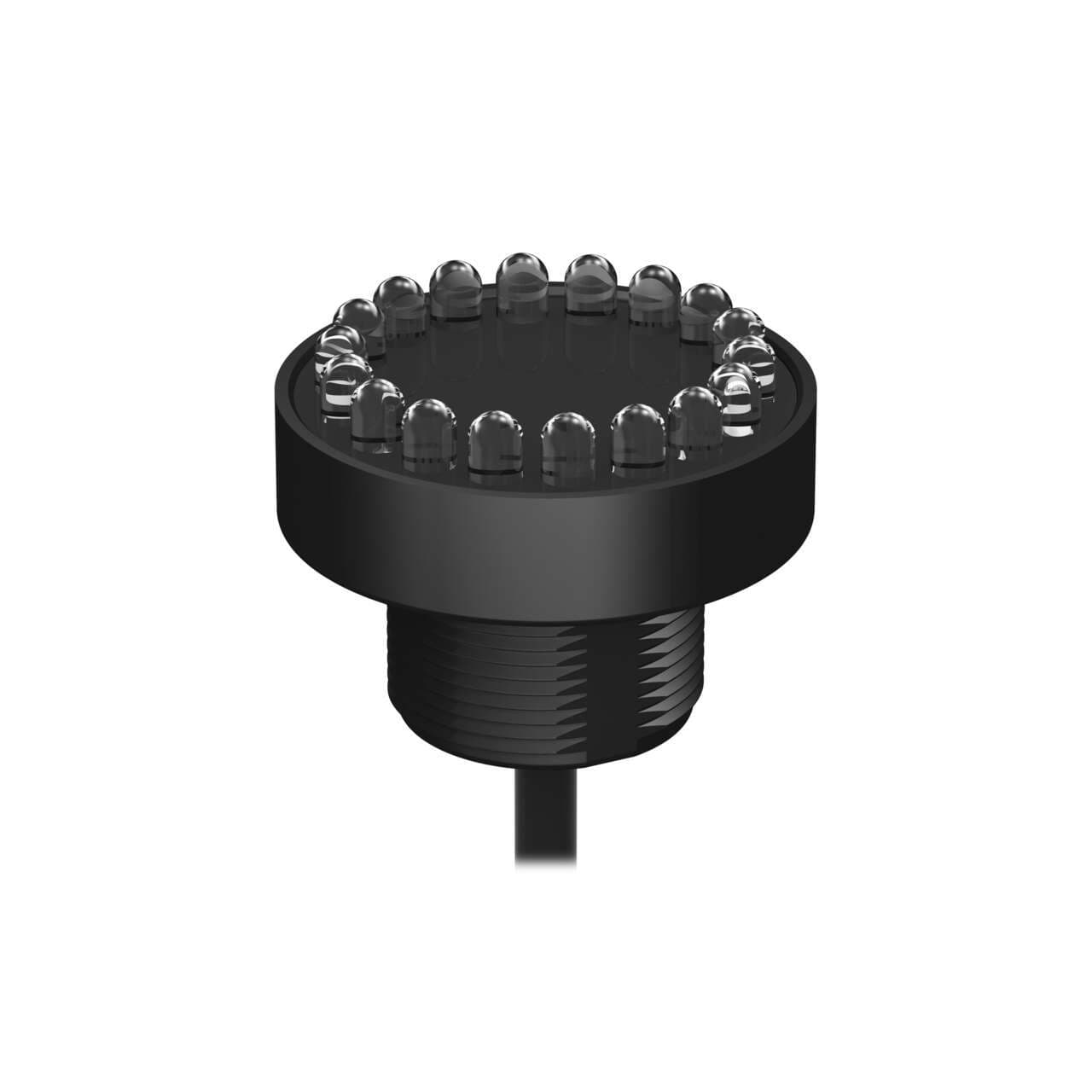

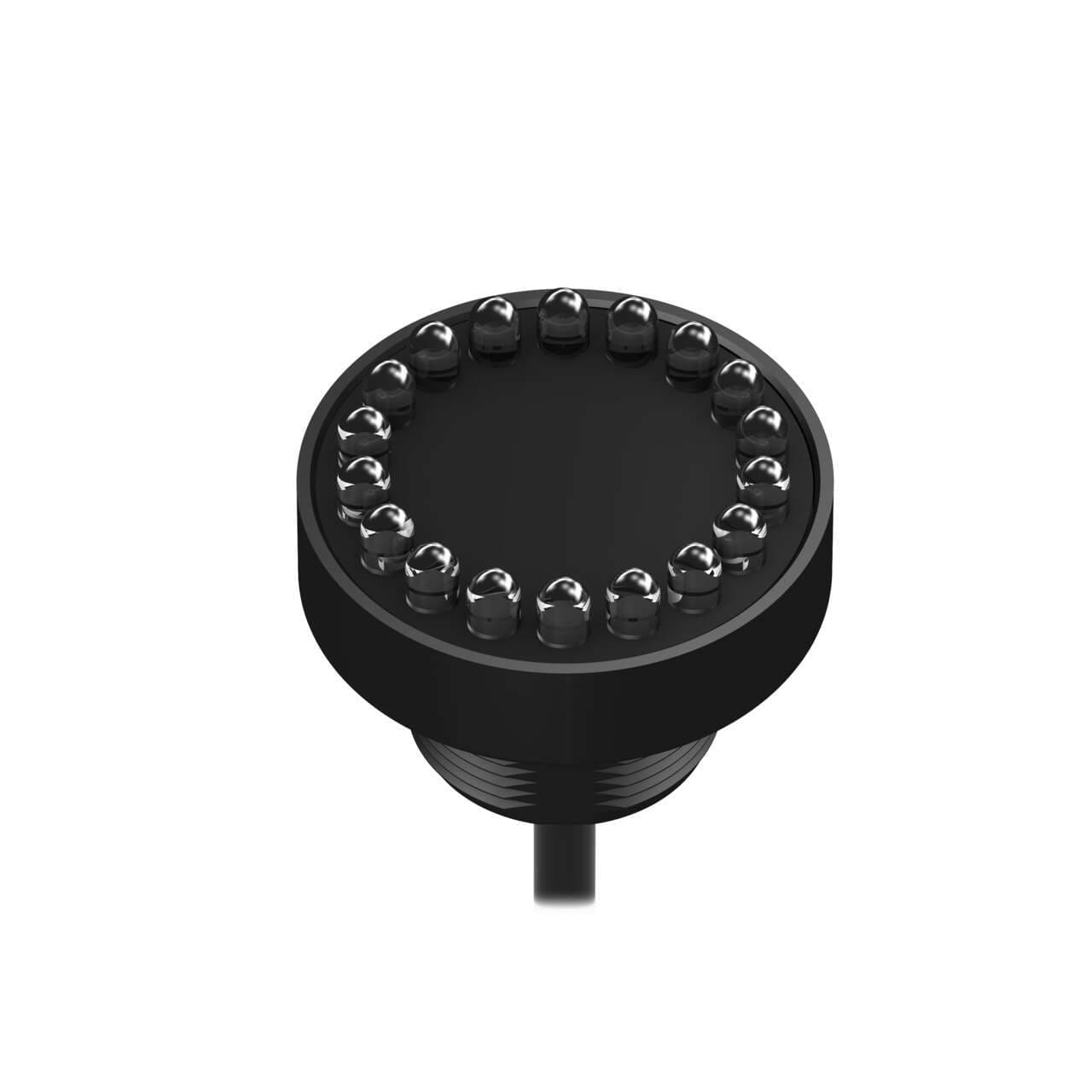

K50 Series EZ-LIGHT Daylight Visible 1-Color Indicator; Voltage: 15-30 V dc; Housing: Polycarbonate; IP67; Input: PNP; Colors: Red; 2 m (6.5 ft) Integral Cable

Product Details

  • Weight
    158.7572 g
  • Country Of Origin
    MX
  • Primary Housing Material
    Polycarbonate
  • Max Current Color (mA)
    120
  • Max Op. Temperature (°C)
    50
  • Feature: Chemical Resistant
    No
  • Mounting Thread
    M30 x 1.5
  • Number of Input Pins/Conductors
    4
  • Primary Housing Color
    Black
  • Animation Option 1
    Solid On
  • Max Op. Relative Humidity Non-Condensing (%)
    90% @ 50°C
  • IO Link
    No
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Supply Voltage
    12-30 V dc
  • Indication Intensity
    High Brightness & Daylight Visible
  • Housing Style
    Base Mount - No Window
  • Connection
    Cable
  • Feature: Hazardous Area
    No
  • Modbus RTU
    No
  • Color Option 1
    Red
  • Max Input Response Time (ms)
    1
  • Feature: Audible
    No
  • Power Source
    DC
  • Color Technology
    Standard LED
  • Environmental Rating
    IP67
  • Feature: Quick Disconnect
    No
  • Pro-Editor Compatible (Discrete)
    No
  • Number of Colors / Segments
    1
  • Indication
    Yes
  • Input Type
    PNP
  • Min Op. Temperature (°C)
    -40
  • Power
    DC
  • Product Size (mm)
    50
  • Physical Dimensions (LxWxH or DxH mm)
    50.0 x 38.5
  • Multi-Color Device
    Single Color On
  • Wireless
    No

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of K50LDRXXP on Powermatic Associates is $128.00. Order now.

About the product

K50 Series EZ-LIGHT Daylight Visible 1-Color Indicator, Voltage: 15-30 V dc; Housing: Polycarbonate; IP67, Input: PNP; Colors: Red, 2 m (6.5 ft) Cable
