K50LGRA2BPQ Banner Pick-to-Light Sensors
Part#:K50LGRA2BPQ
Alt. Part#:81894
Manufacturer:Banner
Category:Pick-to-Light Sensors
Product Lifecycle:Active
Product description
K50 Series EZ-LIGHT: 3-Color Audible Indicator; Voltage: 18-30 V dc; Housing: Polycarbonate; IP50; Tone: Pulsed; Input: PNP; Colors: Green Red Blue; 5-pin M12 Integral QD
Product Details
- Weight 132.448864 g
- Country Of Origin MX
- Indication Yes
- Color Option 3 Blue
- Max Input Response Time (ms) 10
- NEMA Type and UL Type Rating NEMA and UL 4X, 13
- Feature: Quick Disconnect Yes
- Number of Colors / Segments 3
- Number of Input Pins/Conductors 5
- Min Audible Intensity (db at 1m) 75
- Primary Housing Color Black
- Wireless No
- Primary Housing Material Polycarbonate
- Color Option 1 Green
- Audible Alarm Type Pulsed
- Max Op. Temperature (°C) 50
- Multi-Color Device Single Color On
- Cable Length (m) 2
- Product Size (mm) 50
- Supply Voltage 18-30 V dc
- Physical Dimensions (LxWxH or DxH mm) 50.0 x 68.0
- Feature: Hazardous Area No
- Housing Style Base Mount - Dome Window
- Animation Option 1 Solid On
- Max Audible Intensity (db at 1m) 75
- Secondary Material ABS
- IO Link No
- Mounting Thread M30 x 1.5
- Connection Integral QD
- Input Type PNP
- Environmental Rating IP50
- Power DC
- Quick Disconnect Type M12 (Euro)
- Audible Operating Frequency (kHz) 3.0
- Primary Window Material Polycarbonate Diffused
- Pro-Editor Compatible (Discrete) No
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Color Option 2 Red
- Min Op. Temperature (°C) -20
- Modbus RTU No
- Power Source DC
- Color Technology Standard LED
- Max Current Color (mA) 40
- Max Current - Audible Alarm (mA) 40
- Feature: Audible Yes
- Feature: Chemical Resistant No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of K50LGRA2BPQ on Powermatic Associates is $162.00. Order now.
About the product

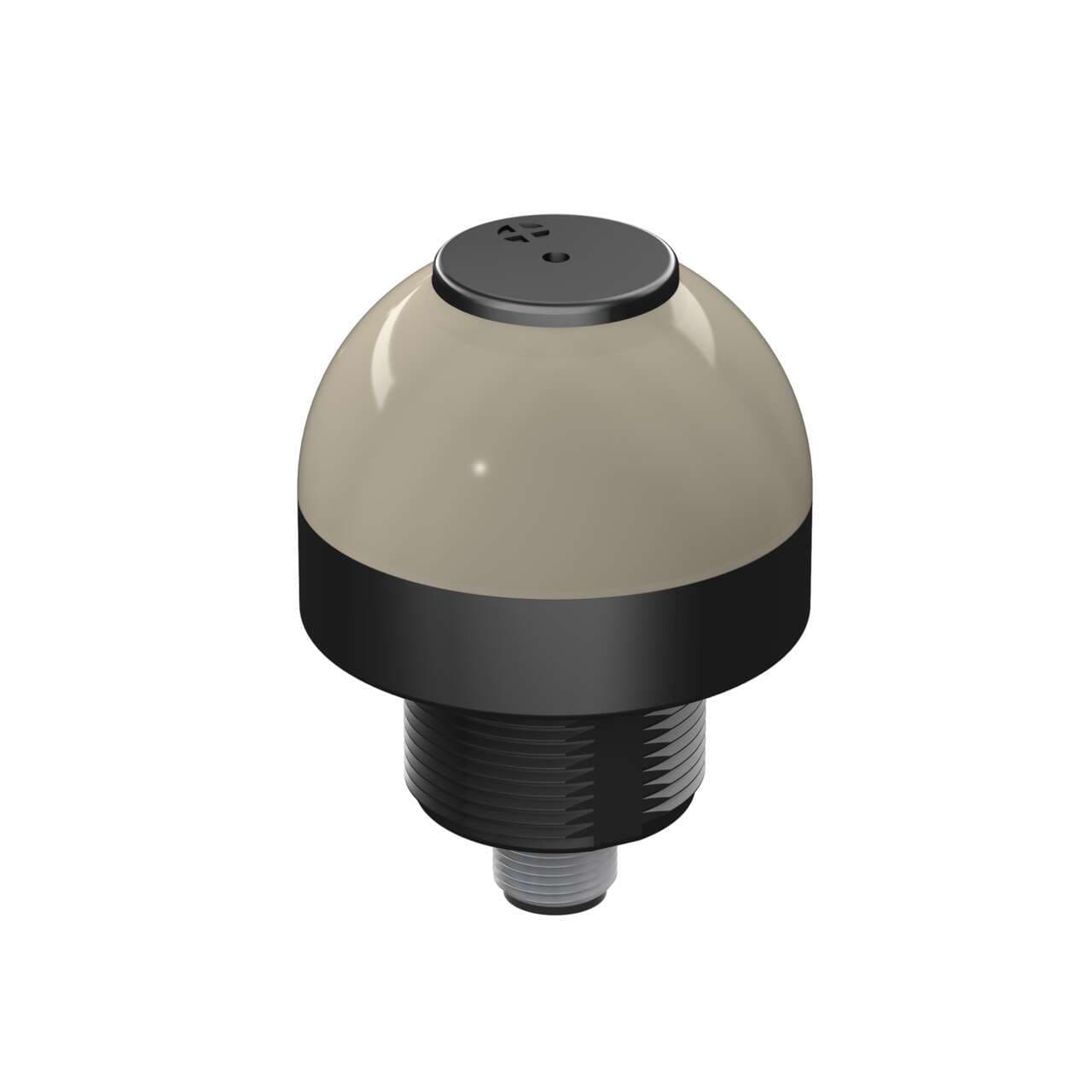

Banner Engineering K50LGRA2BPQ is a pilot light from the EZ-LIGHT series designed with a steady sound 3-color G/R/Y color pattern LED illumination for clear signaling. It features a black housing with a dome window shape, constructed from polycarbonate for both the diffused window and the base. This unit is pre-wired with a 6" / 15cm pigtail that terminates with a 5-pin M12 Euro-style QD connector, facilitating easy and quick connections. It operates on a supply voltage range of 18Vdc to 30Vdc, with 24Vdc as the nominal voltage. The K50LGRA2BPQ offers versatile mounting options including surface, base, or pole flush with a 30mm hole and an M30 thread. The dome has a diameter of 50mm / 2 inches, and it is designed to operate within an ambient air temperature range of -20°C to +50°C. It is rated with a degree of protection of IP50, NEMA 4X, NEMA 13, UL type 4X, and UL type 13, ensuring durability in various environments. The current consumption is 40mA, and it includes 3 x digital inputs for color control and 1 x digital input for alarm input, all supporting 18-30Vdc PNP.
