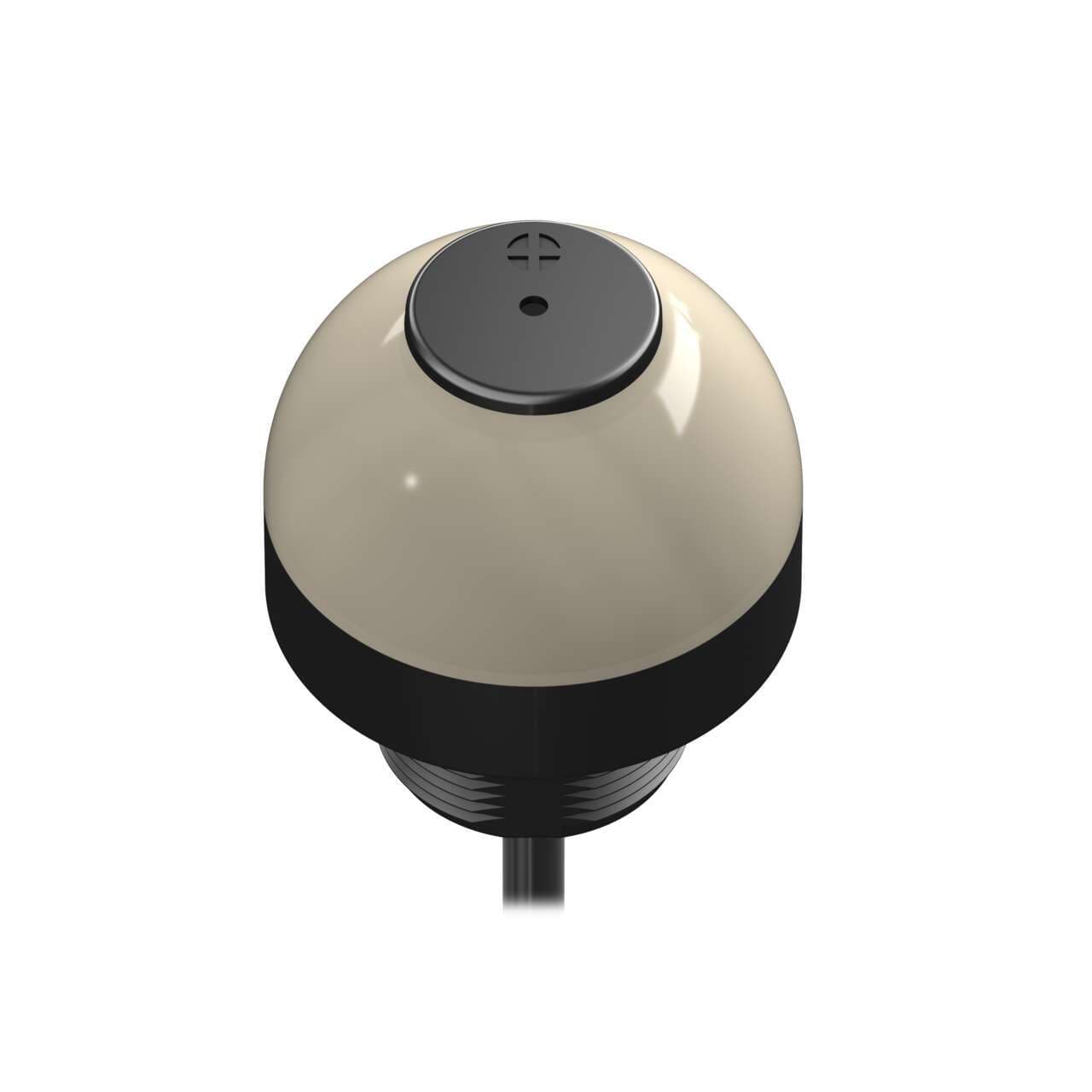

K50LGRAL1BN Banner Pick-to-Light Sensors
Part#:K50LGRAL1BN
Alt. Part#:82326
Manufacturer:Banner
Category:Pick-to-Light Sensors
Product Lifecycle:Active
Product description
K50 Series EZ-LIGHT: 3-Color Audible Indicator; Voltage: 18-30 V dc; Housing: Polycarbonate; IP50; Tone: Loud Steady; Input: NPN; Colors: Green Red Blue; 2 m (6.5 ft) Integral Cable
Product Details
- Weight 226.796 g
- Country Of Origin MX
- Pro-Editor Compatible (Discrete) No
- Wireless No
- Modbus RTU No
- IO Link No
- Feature: Quick Disconnect No
- Feature: Chemical Resistant No
- Multi-Color Device Single Color On
- Feature: Audible Yes
- Feature: Hazardous Area No
- Secondary Material Polycarbonate
- Primary Window Material Polycarbonate Diffused
- Max Op. Temperature (°C) 50
- Primary Housing Color Black
- Min Op. Temperature (°C) -20
- NEMA Type and UL Type Rating NEMA and UL 4X, 13
- Environmental Rating IP50
- Physical Dimensions (LxWxH or DxH mm) 50.0 x 57.0
- Max Current - Audible Alarm (mA) 40
- Max Input Response Time (ms) 10
- Audible Operating Frequency (kHz) 2.7
- Min Audible Intensity (db at 1m) 95
- Max Audible Intensity (db at 1m) 95
- Audible Alarm Type Continuous
- Input Type NPN
- Number of Input Pins/Conductors 5
- Supply Voltage 18-30 V dc
- Max Current Color (mA) 40
- Color Option 3 Blue
- Connection Cable
- Color Option 2 Red
- Animation Option 1 Solid On
- Color Technology Standard LED
- Color Option 1 Green
- Number of Colors / Segments 3
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Indication Yes
- Primary Housing Material Polycarbonate
- Power Source DC
- Product Size (mm) 50
- Mounting Thread M30 x 1.5
- Power DC
- Housing Style Base Mount - Dome Window
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of K50LGRAL1BN on Powermatic Associates is $161.00. Order now.
About the product
Banner Engineering K50LGRAL1BN, part of the EZ-LIGHT series, is a pilot light designed with a black housing and a dome window shape. It features an audible LED pilot light indicator that provides continuous loud sound and is I.O. block compatible. The LED illumination comes in a 2-color G/R color pattern. The housing is made from polycarbonate (PC) with a diffused window and a PC base. It is pre-equipped with a 5-pin M12 Euro-style QD connector for connectivity. The supply voltage required is 18Vdc-30Vdc, with 24Vdc nominal. This part offers versatile mounting options including surface, base, or pole flush with a 30mm hole and an M30 thread. The dome diameter is 50mm / 2 inches. It operates in ambient air temperatures ranging from -20°C to +50°C and has a degree of protection rated at IP50, NEMA 4X, NEMA 13, UL type 4X, and UL type 13. The current consumption is 50mA. For digital inputs, it includes 2 x digital inputs (18-30Vdc; PNP) for color control and 1 x digital input (18-30Vdc; PNP) for alarm input.
