K50LGRAL1YNQ Banner Pick-to-Light Sensors
Part#:K50LGRAL1YNQ
Alt. Part#:79481
Manufacturer:Banner
Category:Pick-to-Light Sensors
Product Lifecycle:Active
Product description
K50 Series EZ-LIGHT: 3-Color Audible Indicator; Voltage: 18-30 V dc; Housing: Polycarbonate; IP50; Tone: Loud; Input: NPN; Colors: Green Red Yellow; 5-pin M12 Integral QD
Product Details
- Weight 136.0776 g
- Country Of Origin MX
- Mounting Thread M30 x 1.5
- Max Current Color (mA) 40
- Audible Alarm Type Continuous
- NEMA Type and UL Type Rating NEMA and UL 4X, 13
- Feature: Chemical Resistant No
- Color Option 1 Green
- Number of Input Pins/Conductors 5
- Physical Dimensions (LxWxH or DxH mm) 50.0 x 68.0
- Multi-Color Device Single Color On
- Housing Style Base Mount - Dome Window
- Color Technology Standard LED
- Input Type NPN
- Min Op. Temperature (°C) -20
- IO Link No
- Power Source DC
- Product Size (mm) 50
- Supply Voltage 18-30 V dc
- Environmental Rating IP50
- Feature: Hazardous Area No
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Color Option 3 Yellow
- Max Input Response Time (ms) 10
- Primary Window Material Polycarbonate Diffused
- Power DC
- Number of Colors / Segments 3
- Connection Integral QD
- Max Current - Audible Alarm (mA) 40
- Feature: Audible Yes
- Primary Housing Material Polycarbonate
- Color Option 2 Red
- Min Audible Intensity (db at 1m) 95
- Primary Housing Color Black
- Wireless No
- Indication Yes
- Quick Disconnect Type M12 (Euro)
- Audible Operating Frequency (kHz) 2.7
- Secondary Material Polycarbonate
- Pro-Editor Compatible (Discrete) No
- Cable Length (m) 0.15
- Animation Option 1 Solid On
- Max Audible Intensity (db at 1m) 95
- Max Op. Temperature (°C) 50
- Modbus RTU No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of K50LGRAL1YNQ on Powermatic Associates is $161.00. Order now.
About the product

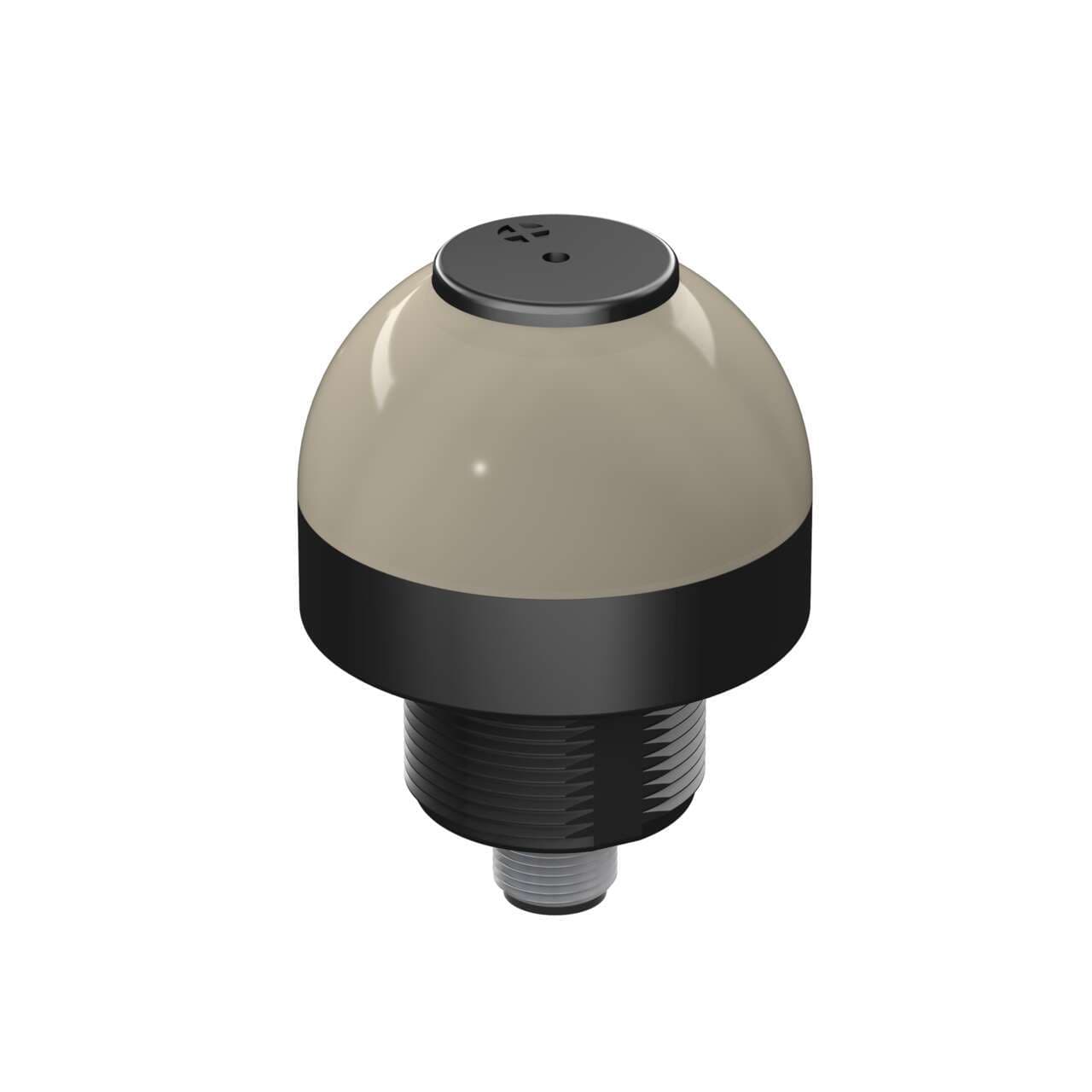

Banner Engineering K50LGRAL1YNQ is a pilot light from the EZ-LIGHT series designed to serve as an audible LED pilot light indicator. It features a continuous loud sound and 3-color G/R/Y color pattern LED illumination, housed in a black dome-shaped body made of polycarbonate (PC) for both the diffused window and the base. This part is pre-wired with a 2m / 6.5ft 5-wire cable terminated with bare end flying leads, supporting a supply voltage range of 18Vdc to 30Vdc, with 24Vdc as nominal. It offers versatile mounting options including surface, base, or pole flush with a 30mm hole and an M30 thread. The dome has a diameter of 50mm / 2 inches, and it operates within an ambient air temperature range of -20°C to +50°C. The K50LGRAL1YNQ is designed with a degree of protection rated at IP50, NEMA 4X, NEMA 13, UL type 4X, and UL type 13, ensuring durability in various environments. It has a current consumption of 40mA and includes 3 x digital inputs for color control and 1 x digital input for alarm input, all supporting 18-30Vdc; NPN.
