K50LGRAL1YPQP Banner Pick-to-Light Sensors
Part#:K50LGRAL1YPQP
Alt. Part#:79479
Manufacturer:Banner
Category:Pick-to-Light Sensors
Product Lifecycle:Active
Product description
K50 Series EZ-LIGHT: 3-Color Audible Indicator; Voltage: 18-30 V dc; Housing: Polycarbonate; IP50; Tone: Loud; Input: PNP; Colors: Green Red Yellow; 150 mm (6 in) PVC Pigtail QD
Product Details
- Weight 158.7572 g
- Country Of Origin MX
- Primary Housing Material Polycarbonate
- Color Option 3 Yellow
- Max Input Response Time (ms) 10
- Multi-Color Device Single Color On
- Number of Colors / Segments 3
- Color Option 1 Green
- Input Type PNP
- Max Op. Temperature (°C) 50
- Feature: Audible Yes
- Product Size (mm) 50
- Quick Disconnect Type M12 (Euro)
- Min Audible Intensity (db at 1m) 95
- Secondary Material Polycarbonate
- Feature: Chemical Resistant No
- Power Source DC
- Connection Pigtail QD
- Audible Operating Frequency (kHz) 2.7
- Primary Housing Color Black
- Power DC
- Animation Option 1 Solid On
- Max Audible Intensity (db at 1m) 95
- Min Op. Temperature (°C) -20
- Wireless No
- Indication Yes
- Color Technology Standard LED
- Supply Voltage 18-30 V dc
- Physical Dimensions (LxWxH or DxH mm) 50.0 x 57.0
- Feature: Hazardous Area No
- Housing Style Base Mount - Dome Window
- Max Current Color (mA) 40
- Max Current - Audible Alarm (mA) 40
- Modbus RTU No
- NEMA Type and UL Type Rating NEMA and UL 4X, 13
- Pro-Editor Compatible (Discrete) No
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Number of Input Pins/Conductors 5
- Environmental Rating IP50
- IO Link No
- Mounting Thread M30 x 1.5
- Color Option 2 Red
- Audible Alarm Type Continuous
- Primary Window Material Polycarbonate Diffused
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of K50LGRAL1YPQP on Powermatic Associates is $155.00. Order now.
About the product

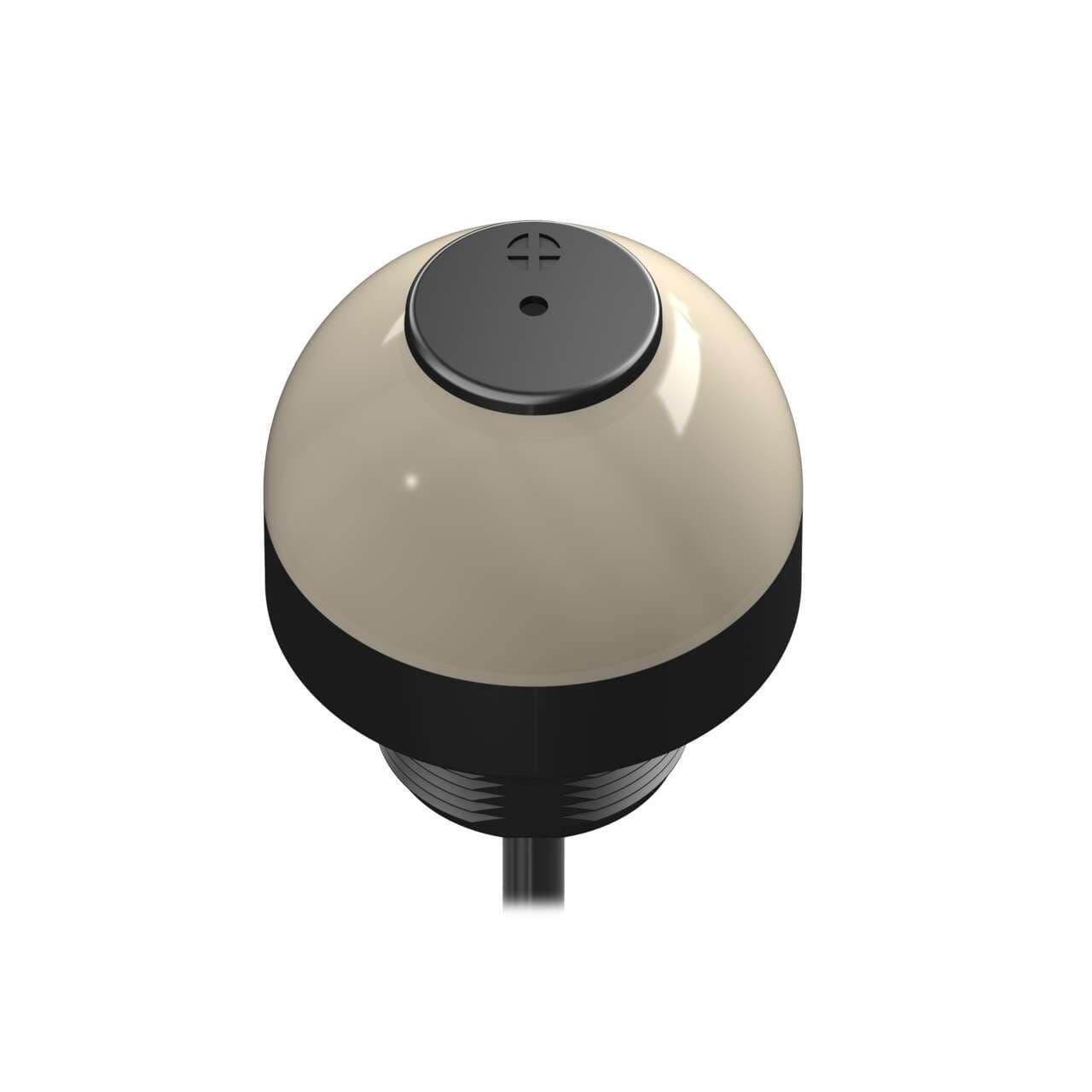

Banner Engineering K50LGRAL1YPQP is a pilot light from the EZ-LIGHT series designed to serve as an audible LED pilot light indicator. It features a continuous loud sound and 3-color G/R/Y color pattern LED illumination, housed in a black polycarbonate base with a dome-shaped diffused window, also made of polycarbonate. This part is pre-wired with a 2m / 6.5ft 5-wire cable terminated with bare end flying leads, supporting a supply voltage range of 18Vdc to 30Vdc (24Vdc nominal). It offers versatile mounting options including surface, base, or pole flush with a 30mm hole and M30 thread. The dome has a diameter of 50mm / 2 inches. It operates within an ambient air temperature range of -20°C to +50°C and boasts a degree of protection rated at IP50, NEMA 4X, NEMA 13, UL type 4X, and UL type 13. The current consumption is 40mA, and it includes 3 x digital inputs for color control and 1 x digital input for alarm, all accepting 18-30Vdc; PNP signals.
